Power Door Lock Switch: Testing and Inspection
Door Lock Link Switch Inspection 1.
Remove the door lock from the door.

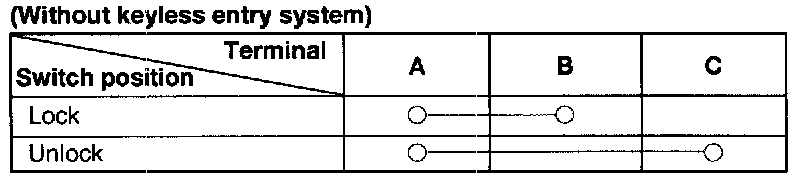

Reference W/O Keyless Entry:

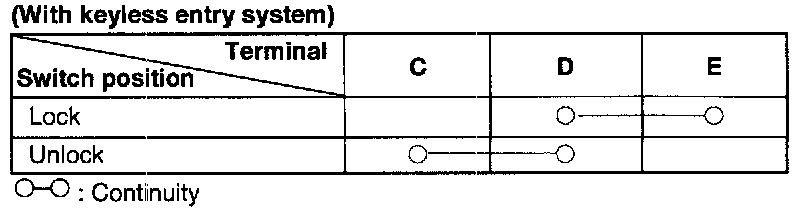

Reference W/ Keyless Entry:
2.

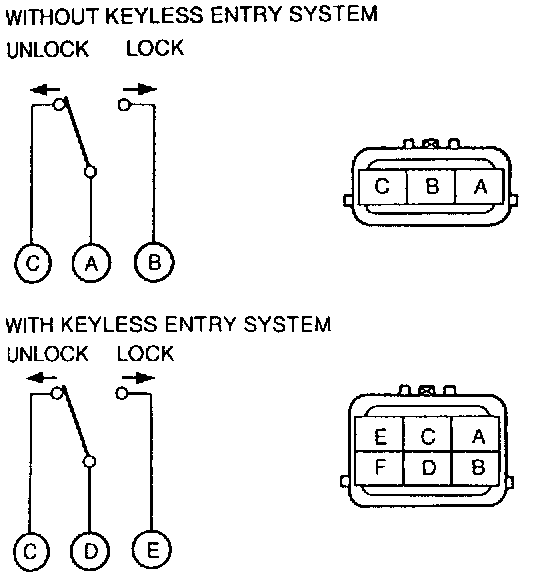

Check for continuity between the door lock switch terminals.
3.
If not as specified, replace the door lock.
