Electrical - Terminal/Connector Replacement

Bulletin No.: 004/97
Issued: 04/25/97
Revised:

Category
T

Applicable Model/s
1993-97 626/MX-6

Subject:
ELECTRICAL CONNECTORS AND TERMINAL REPLACEMENT PART AVAILABILITY

APPLICABLE MODELS
All 1993-97 626/MX-6

DESCRIPTION
Electrical connectors with terminal and waterproof seals (if necessary) are available to improve serviceability for 626 and MX-6 vehicles. These connectors are the most common found on these vehicles. Use these repair connectors to replace damaged connectors without replacing the entire wiring harness.

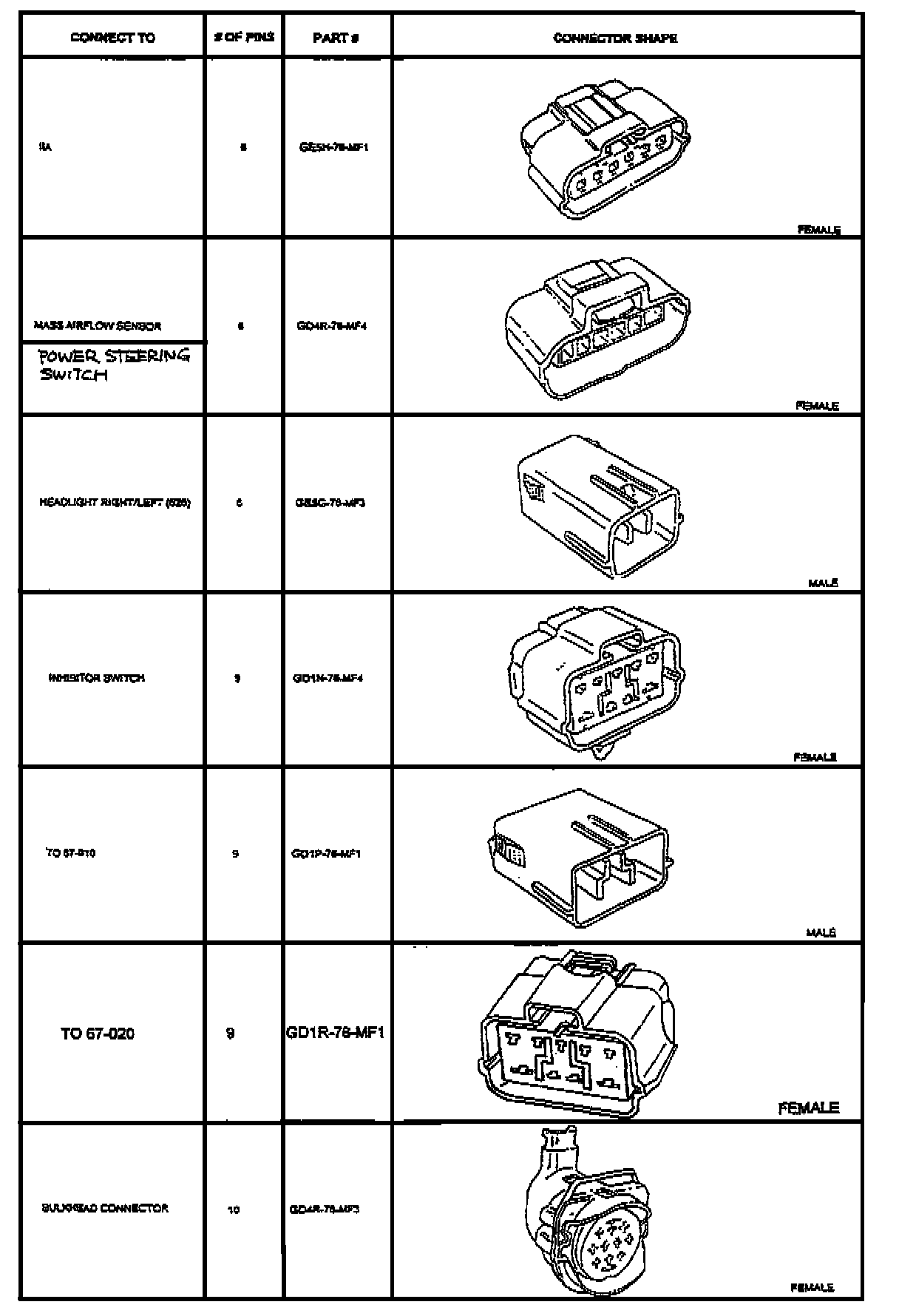

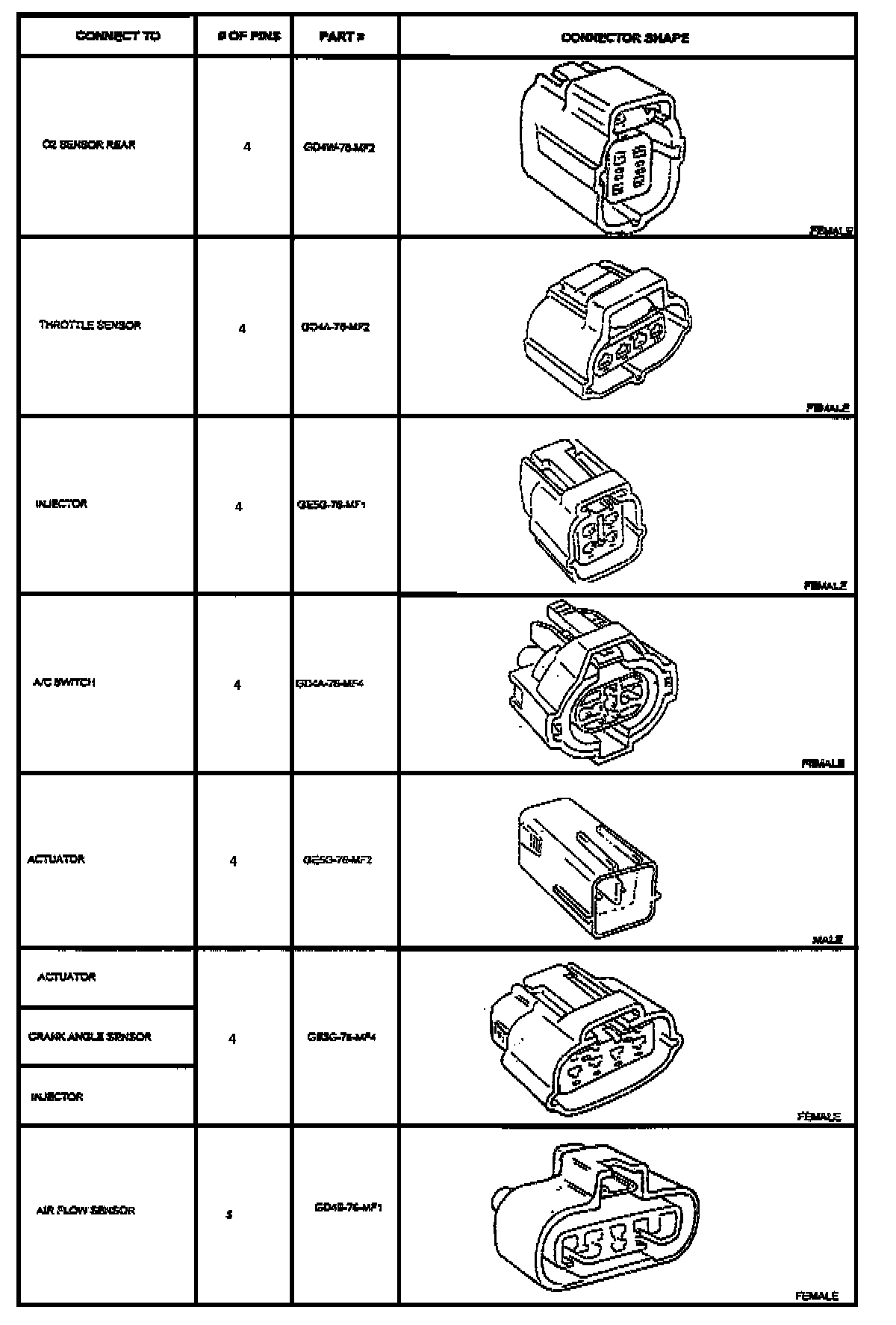

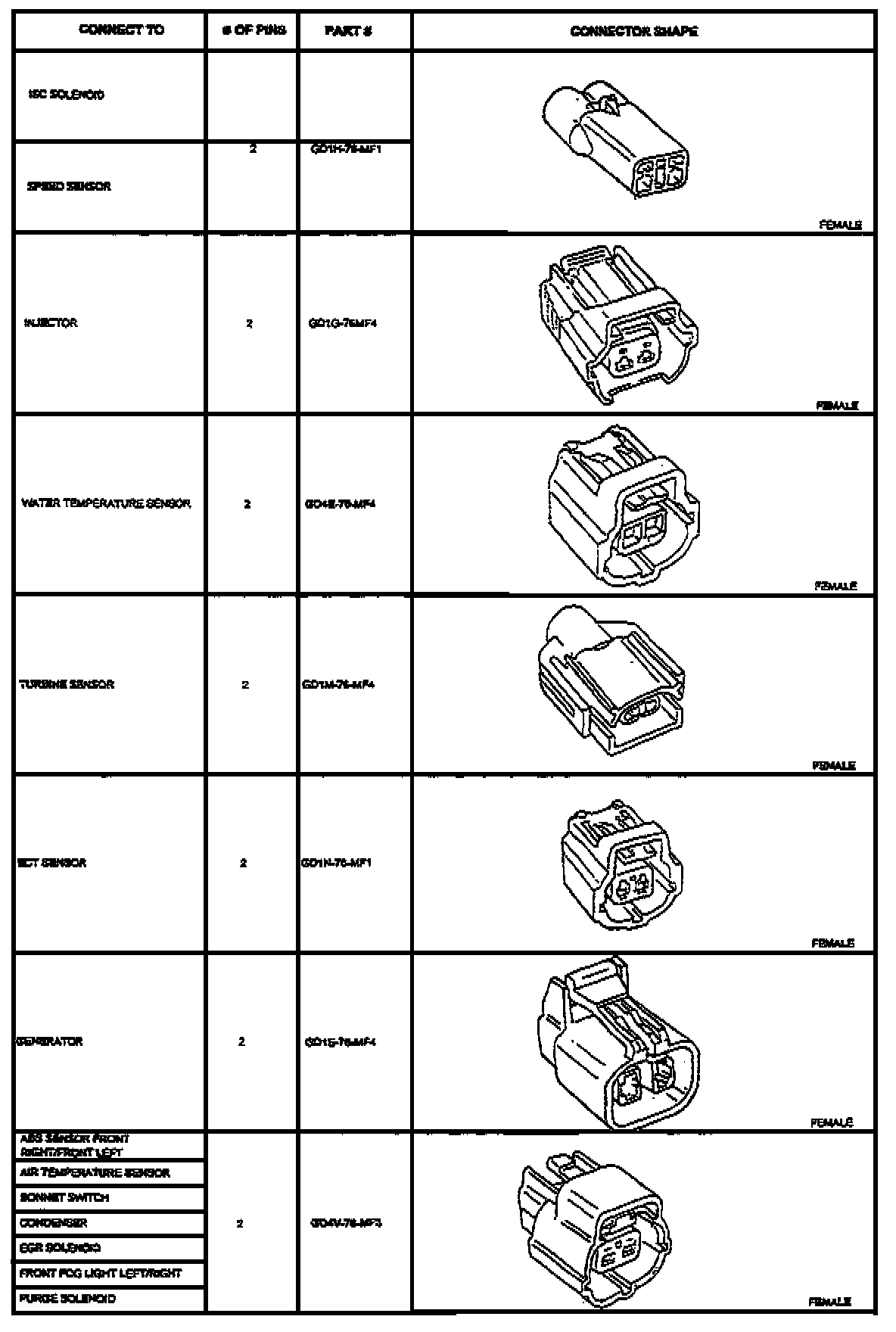

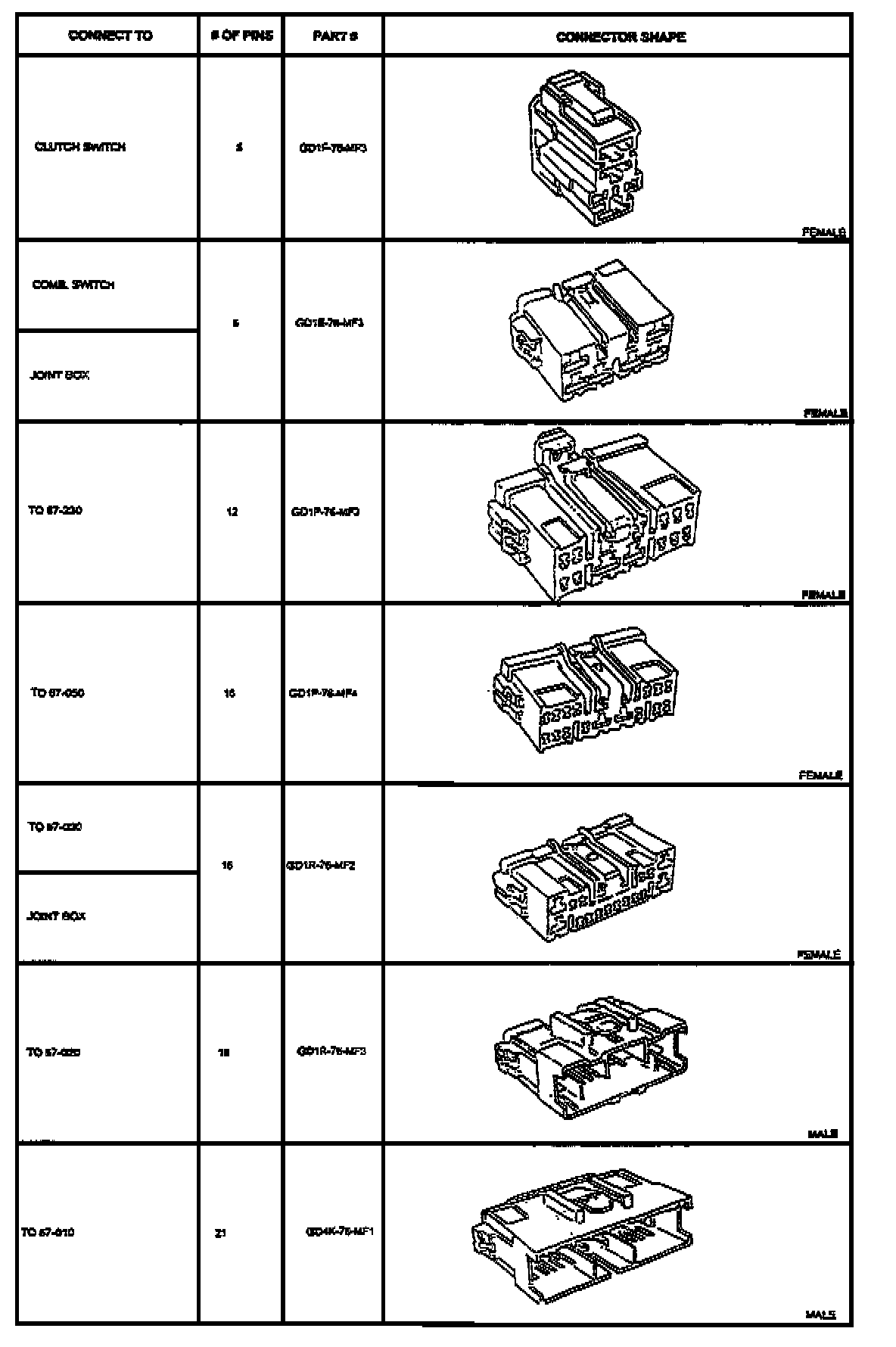

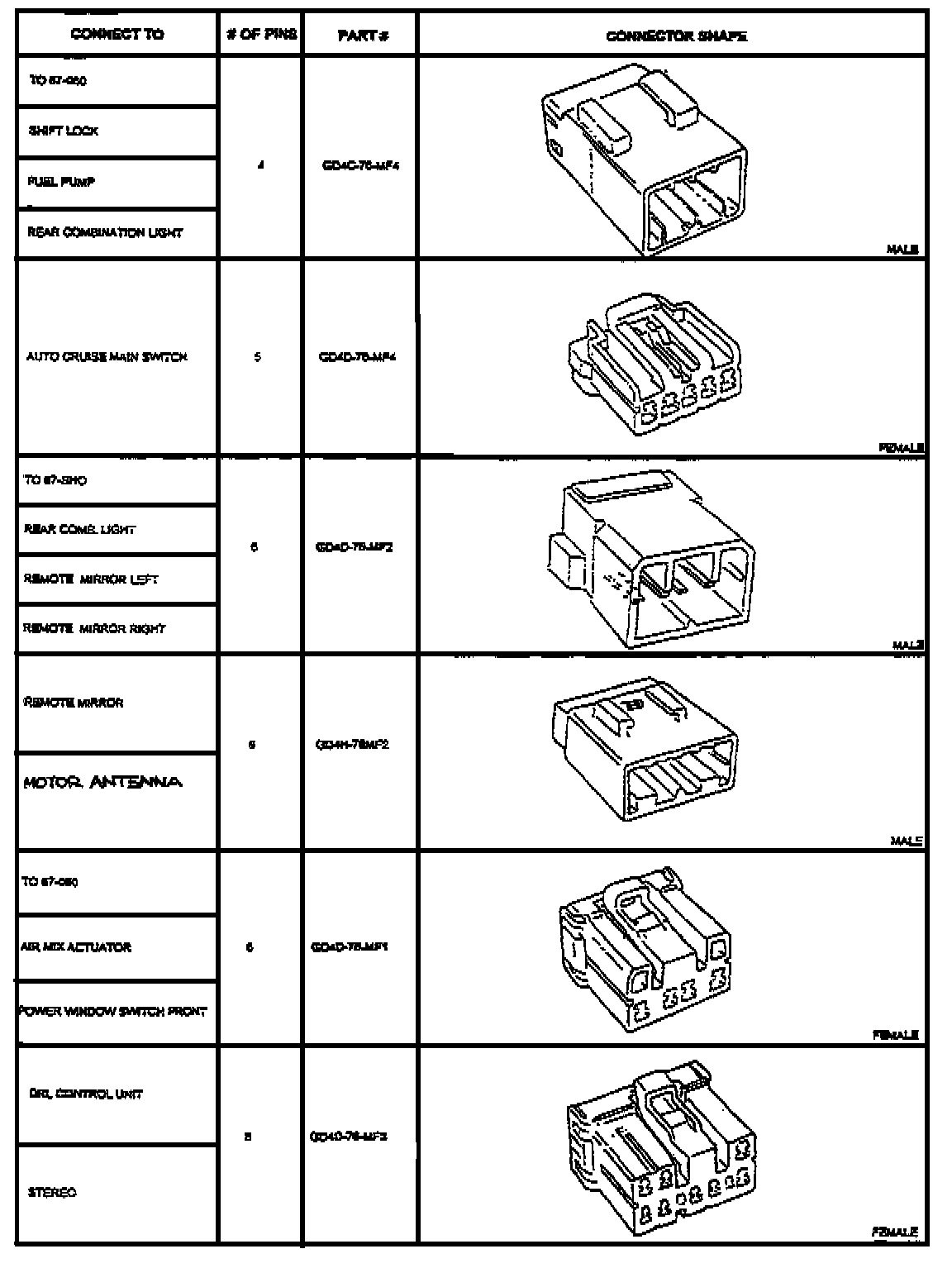

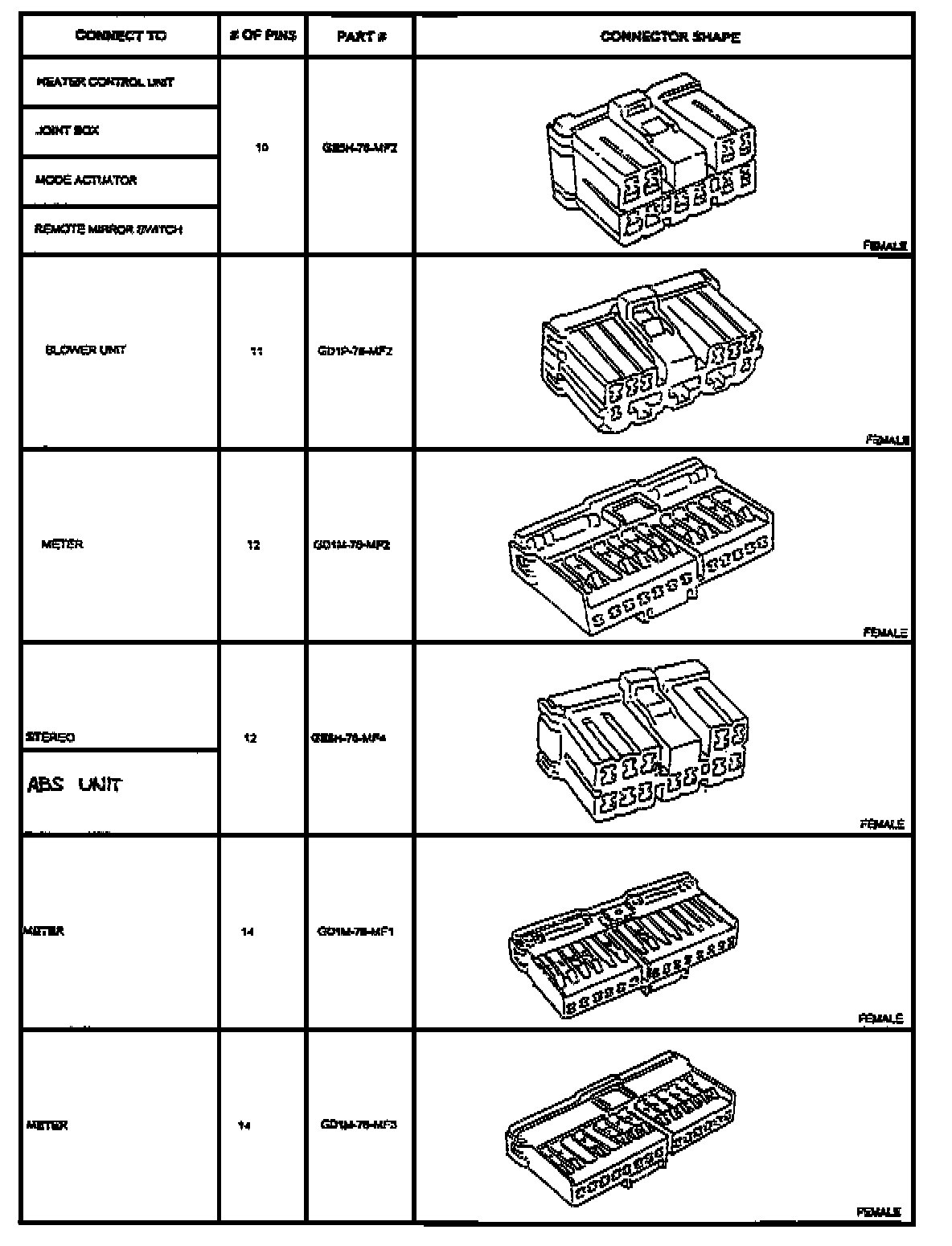

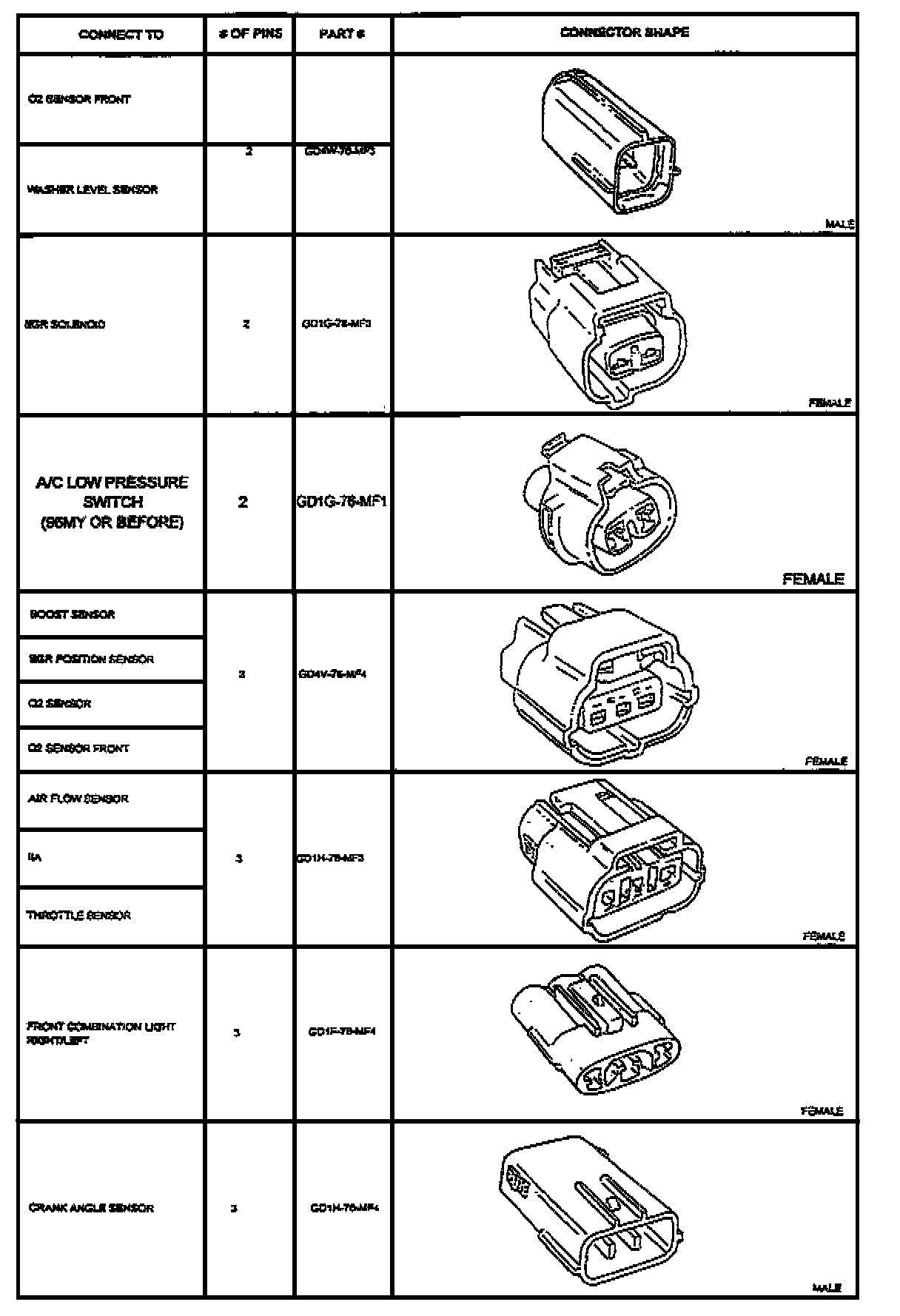

Refer to the Parts Information and Part Illustration for the appropriate part number identification.

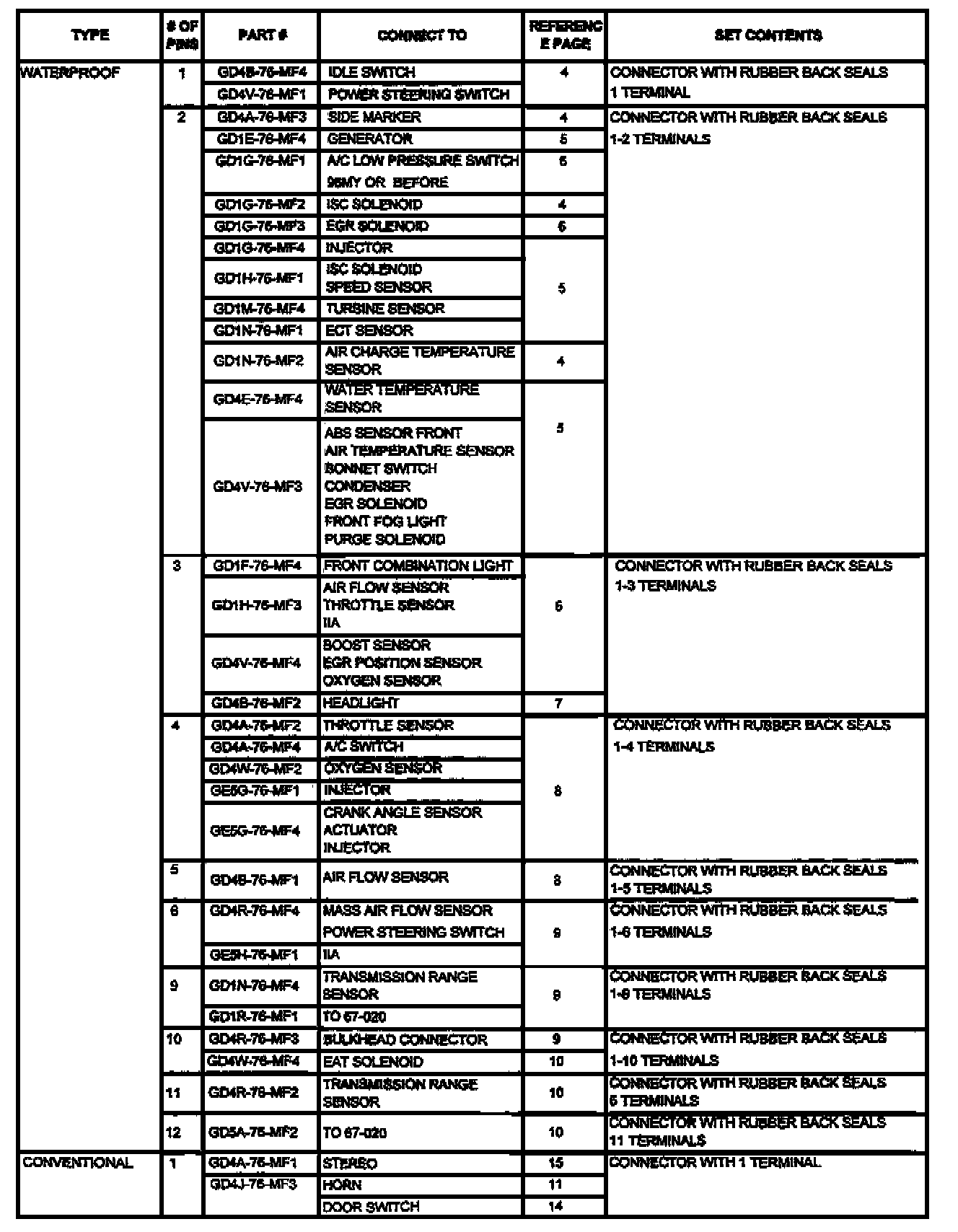

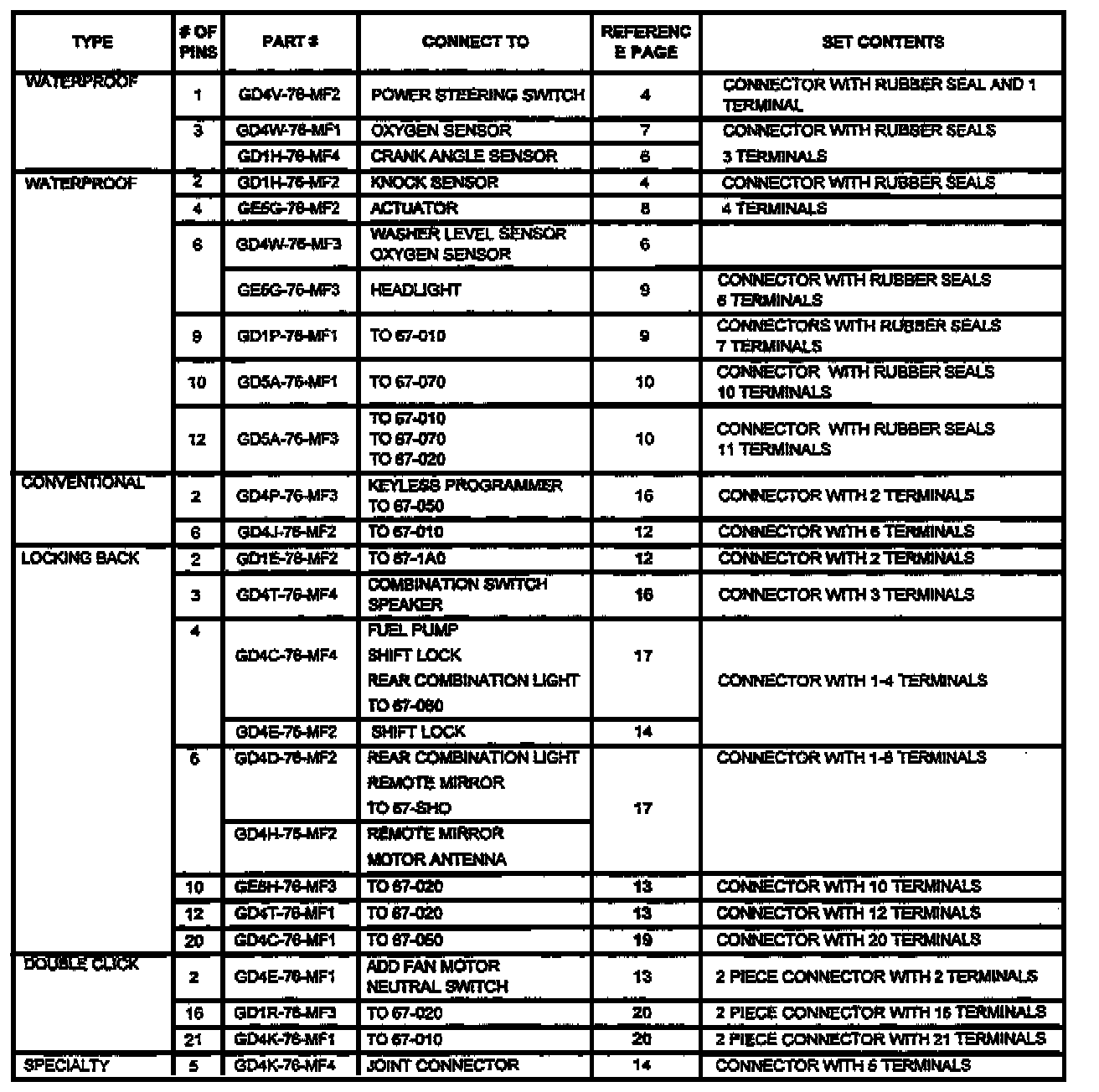

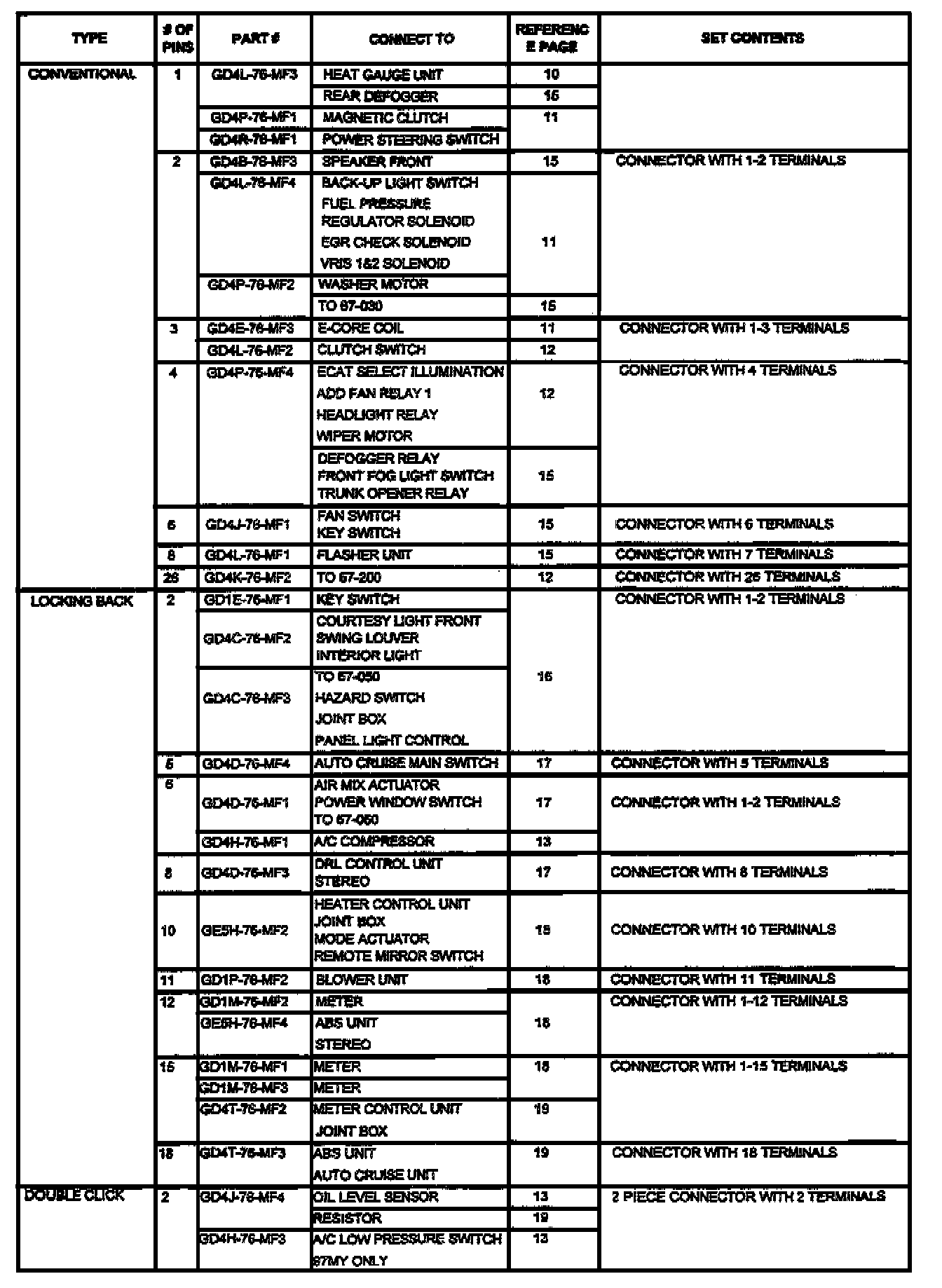

PARTS INFORMATION











FEMALE CONNECTORS





MALE CONNECTORS

ENGINE COMPARTMENT























WATERPROOF TYPE











CONVENTIONAL TYPE








LOCKING BACK TYPE








DOUBLE CLICK TYPE





SPECIALTY

PASSENGER COMPARTMENT











CONVENTIONAL TYPE














LOCKING BACK TYPE











DOUBLE CLICK TYPE
