Engine Control Module: Service and Repair

REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the rear console box, center panel and under cover.

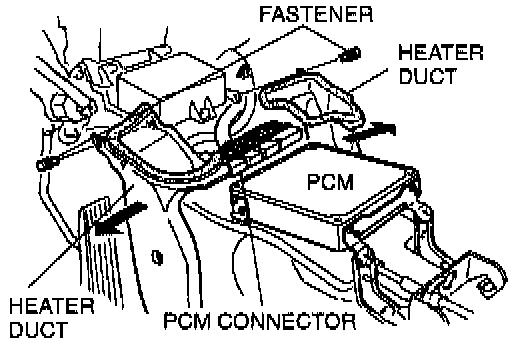

3. Remove in the order shown in the figure.
4. Install in the reverse order of removal.

Removal Note
1. Remove the rear heater duct fasteners.
2. Separate the rear heater duct to both sides.
3. Disconnect the PCM connector.




NOTE: Separating the duct may cause deformation to it. However, this will not affect the performance of the duct.

Installation Note
1. Connect the PCM connector.
2. Assemble the rear heater duct.
3. Verify that the rear heater duct is correctly joined, and install the rear heater duct fasteners.
