Ignition System Inspection
1.
Remove the
fuel pump relay from main fuse block.
2.
Check condition of connector and

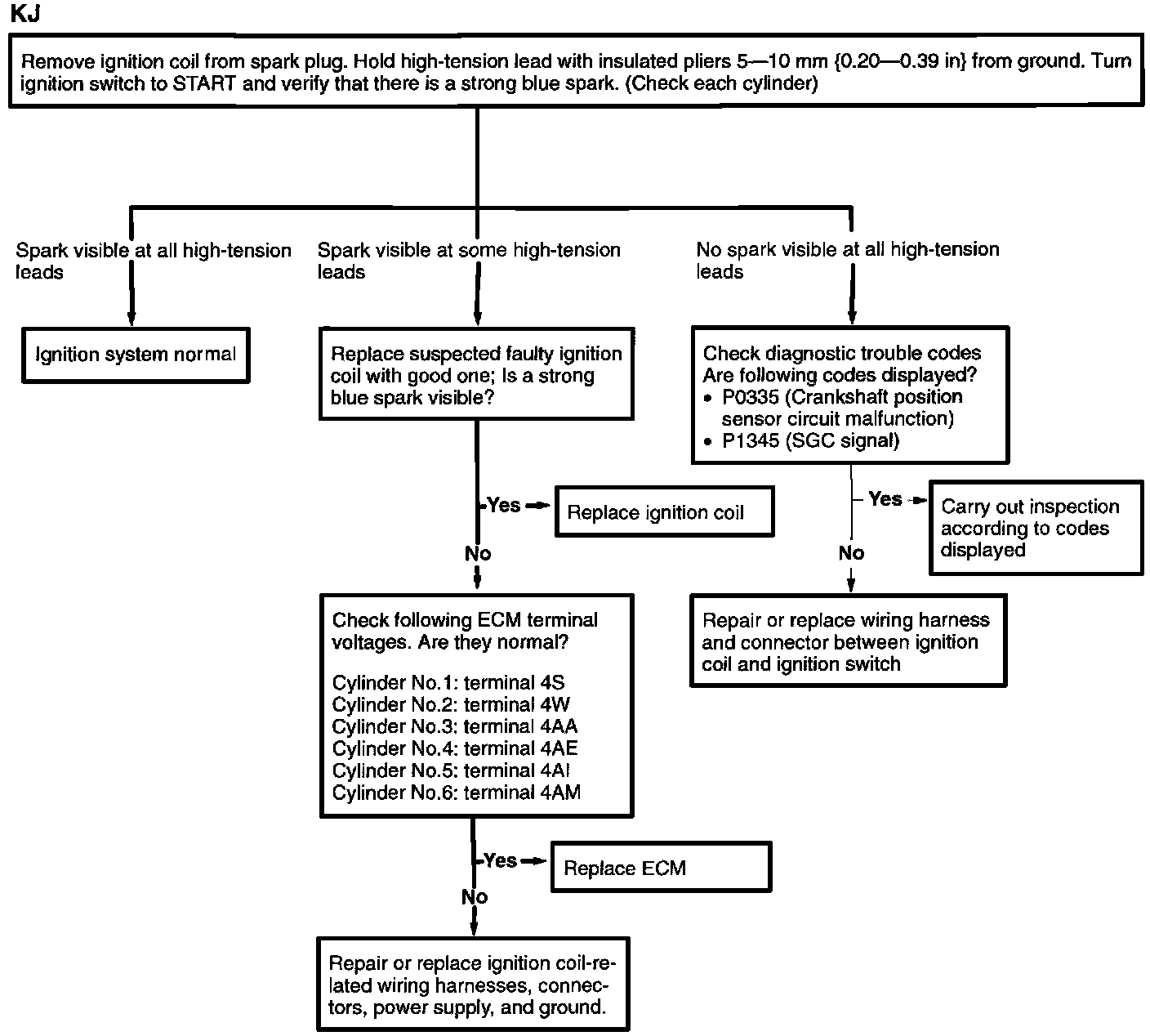

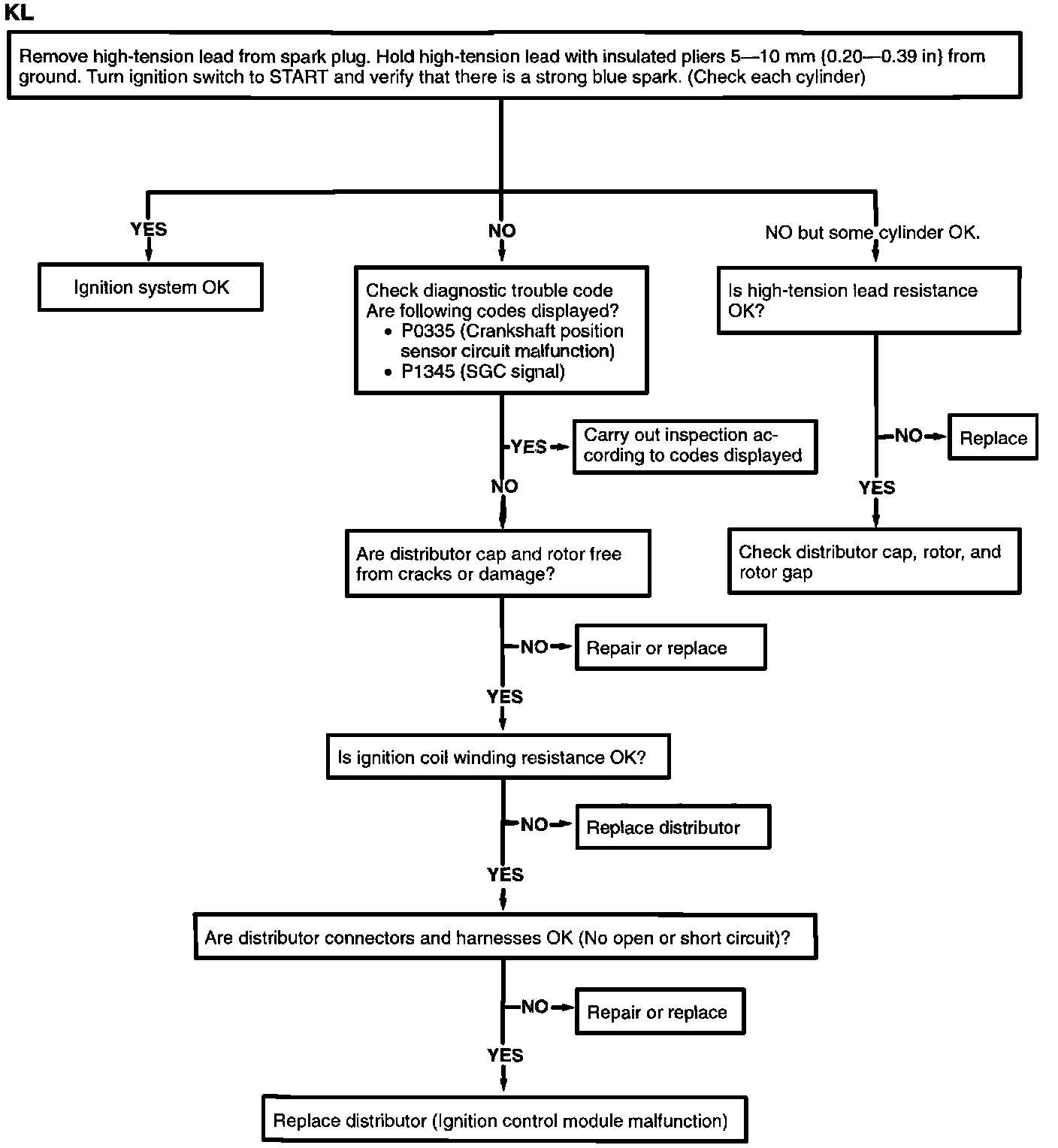

ignition coil (kJ). Check condition of connector, and high-tension leads (kL).
3.
Inspect the
ignition system as following procedure.
WARNING: High voltage in the ignition system can cause strong electrical shock. Avoid direct contact to the vehicle body during the following spark test.
