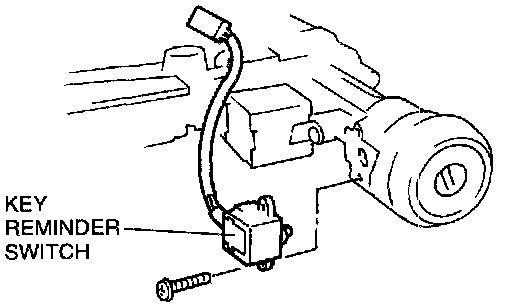

Key Reminder Switch
Removal / Installation 1.
Remove the dashboard.
2.
Disconnect the
key reminder switch connector.
3.
Extract the key interlock solenoid terminals from the
key reminder switch.
4.
Remove the screws and the
key reminder switch.
5.
Install in the reverse order of removal.
