Shift Interlock Switch: Service and Repair

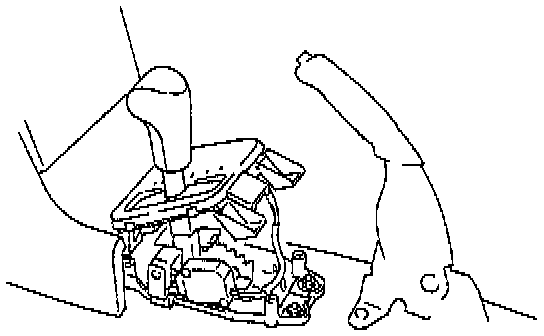

REPLACEMENT
1. Disconnect the negative battery cable.
2. Remove the rear console box and center panel.





3. Remove the indicator screws and lift up the indicator panel.
4. Disconnect the connector.
5. Remove the park position switch.






6. Install the new park position switch.
7. Connect the connector.
8. Install and adjust the indicator panel.
9. Install the center panel and rear console box.
10. Connect the negative battery cable.
11. Check for correct operation of the shift-lock system.
