Using the Engine Signal Monitor
1.
Remove the PCM.
2.
Connect the Special Service Tools (Monitor, Engine Signal and Adapter Harness) to the PCM.
3.
Verify that the throttle valve is at the closed throttle position.
4.
Turn the
ignition switch to ON.
5.

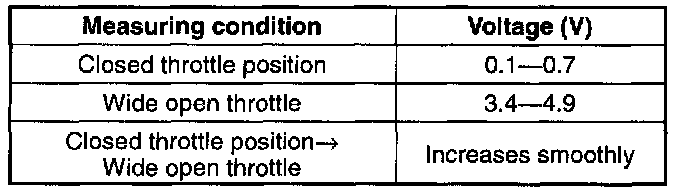

Measure the voltage at PCM terminal 3D.
6.
If not as specified, adjust the
throttle position sensor.
