System Specifications

TIGHTENING SPECIFICATIONS
Bolt A: 38-51 Nm (28-38 ft. lbs.)
Nut B: 38-51 Nm (28-38 ft. lbs.)
Nut C: 19-25 Nm (14-18 ft. lbs.)
Nut D: 10-16 Nm (87-147 inch lbs.)

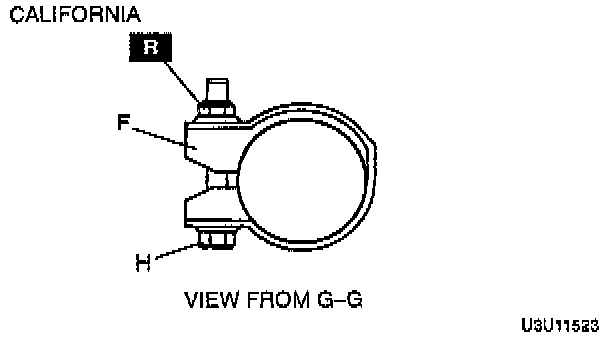

Bolt H: 7.9-10.7 Nm (69.5-95.4 inch lbs.)
