Cruise Control Servo Cable: Service and Repair
1.
Disconnect the actuator cable from the accelerator pedal.
2.

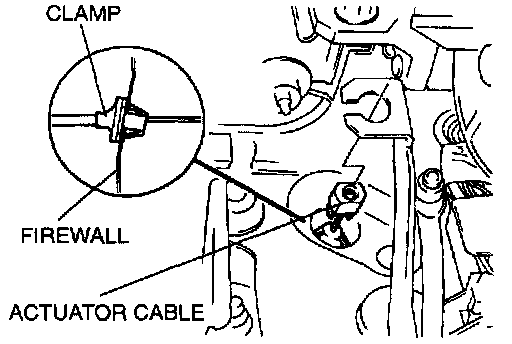

Remove the clamp from the inside of the firewall.
3.

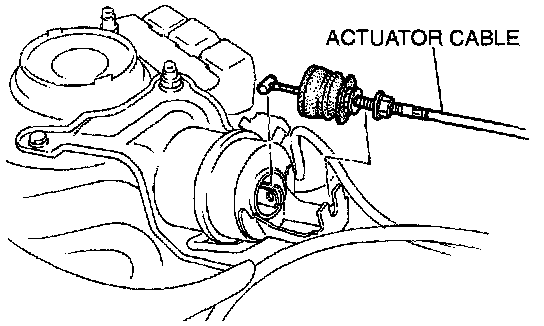

Loosen the nut and remove the actuator cable from the cruise actuator.
4.
Install in the reverse order of removal.
5.
Adjust the actuator cable.
Adjustments
