Rear Wheel Alignment

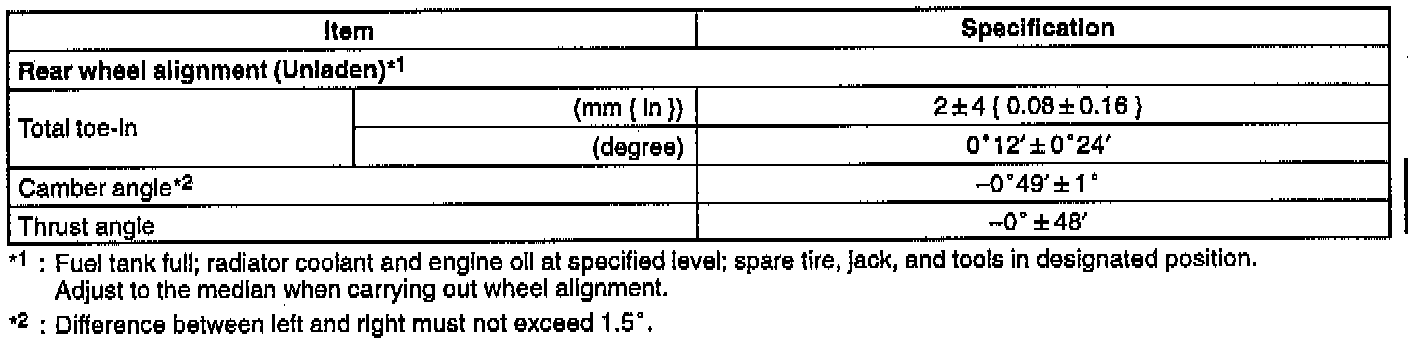

NOTE: In order to maintain the specified thrust angle of 0° +/-0.80°, the rear toe-in setting must be adjusted. If the thrust angle cannot be adjusted to that specification, check the body dimensions.

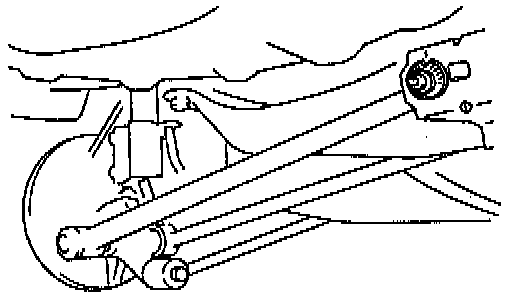

TOTAL TOE-IN ADJUSTMENT

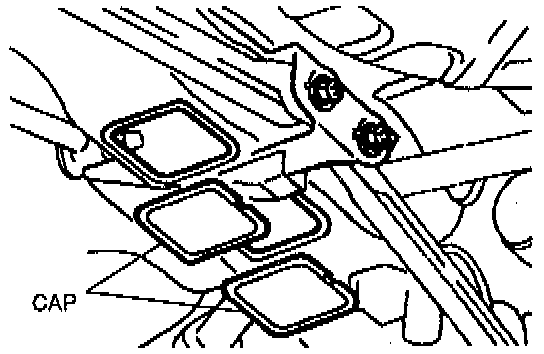

1. Remove the cap.
2. Loosen the cam nut on the lateral link.
3. Turn the adjusting cam bolt to provide the correct total toe-in as indicated.

4. Tighten the cam nut to 35 - 53 Nm (26 - 39 ft. lbs.).
5. Install the cap.
