No.3 Engine Mount Bracket
1.

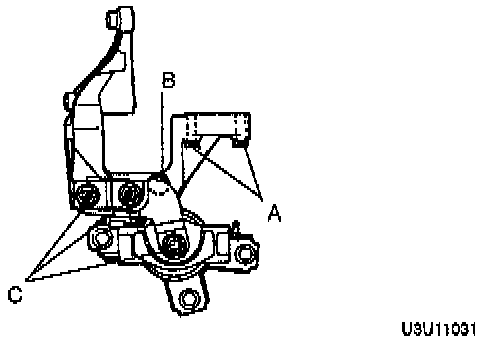

Install the No.3 engine mount bracket.
^
Tighten bolt A to:
19-22 Nm (14-16 ft. lbs.).
^
Tighten bolt B to:
67-93 Nm (50-68 ft. lbs.).
^
Tighten bolt C to:
75-104 Nm (55.0-77.3 ft. lbs.).
2.
Remove the Special Service Tool
(SST), engine support.
