Integrated Intake Air Temperature Sensor
Intake Air Temperature Sensor 1.
Disconnect the mass air flow sensor connector.
2.

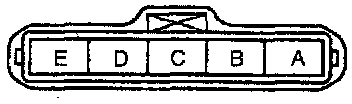

Measure the resistance between terminals C and D by using an ohmmeter.
Specification: 2.21-2.69 kOhms @ 20°C (68°F) 3.
If not as specified, replace the mass air flow sensor.
