Crankshaft Position Sensor: Service and Repair

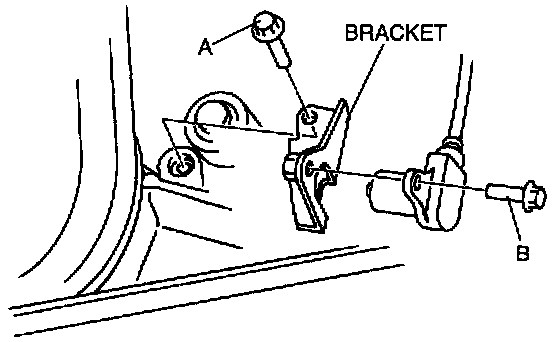

1. Remove the undercover.

2. Remove bolt A.
3. Remove bolt B and the bracket.
4. Install in the reverse order of removal.

Tightening torque: 7.9-10.7 Nm (69.5-95.4 in.lbs.)

5. Adjust the air gap.
