Using the New Generation Star Tester

Special Service Tool New Generation Star Tester Connected to Data Link Connector 2:




1. Connect the Special Service Tools New Generation Star (NGS) tester to the data link connector 2.
2. Verify that the throttle valve is at the closed throttle position.

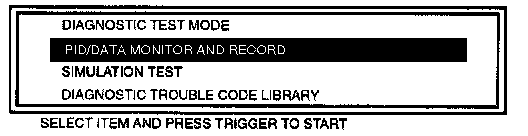

3. Select the PID/DATA MONITOR AND RECORD function.

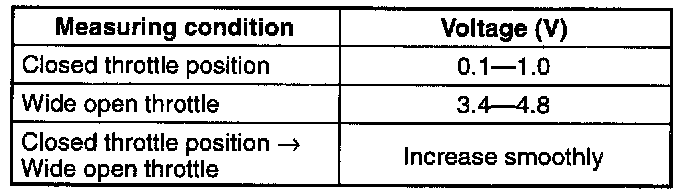

4. Select "TP V" on the NGS display. The NGS measures and shows the voltage.




5. If not as specified, inspect the throttle position sensor harness.
6. If the harness is OK, replace the throttle position sensor.
