Electronic Brake Control Module: Testing and Inspection

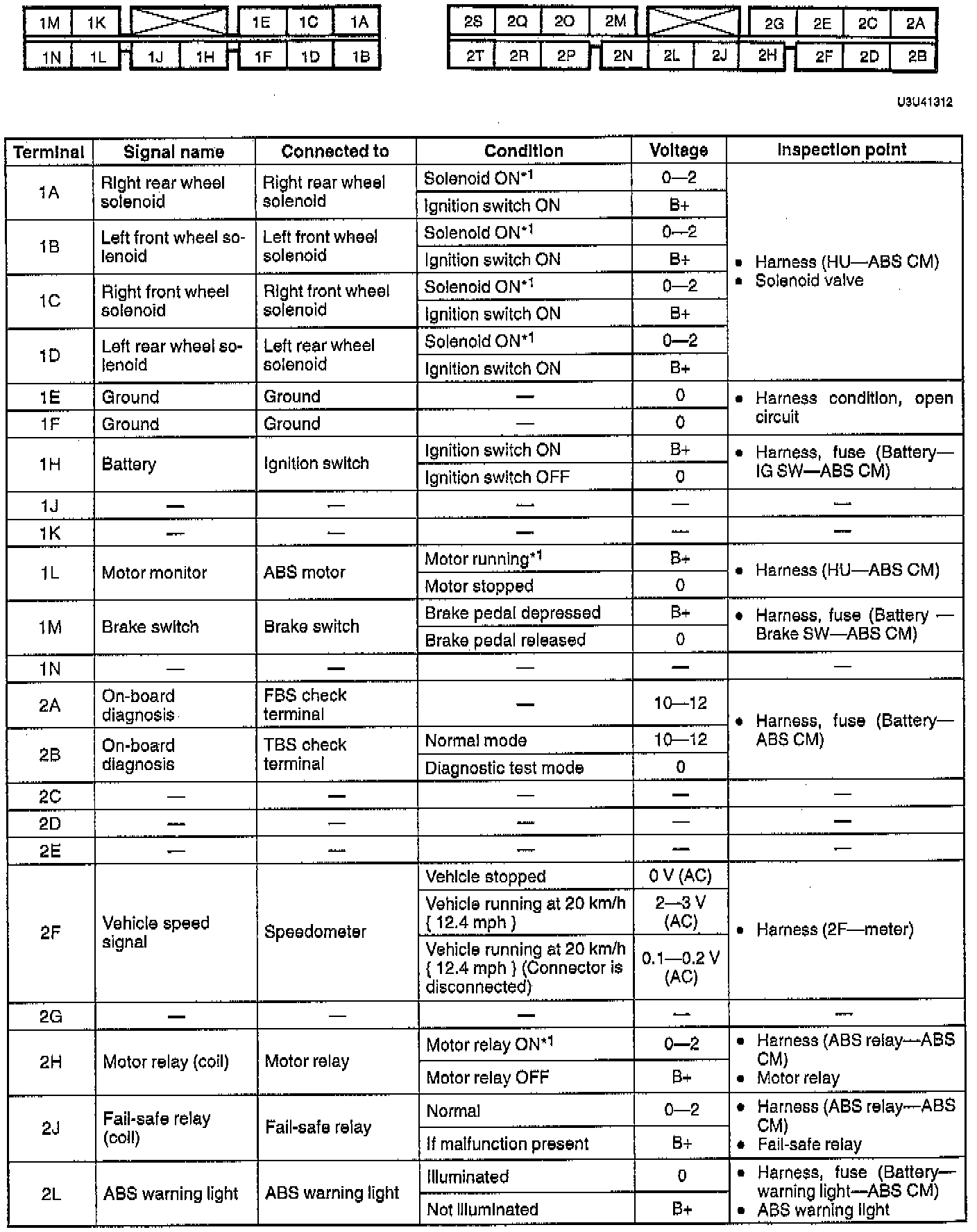

(Part 1 Of 2):

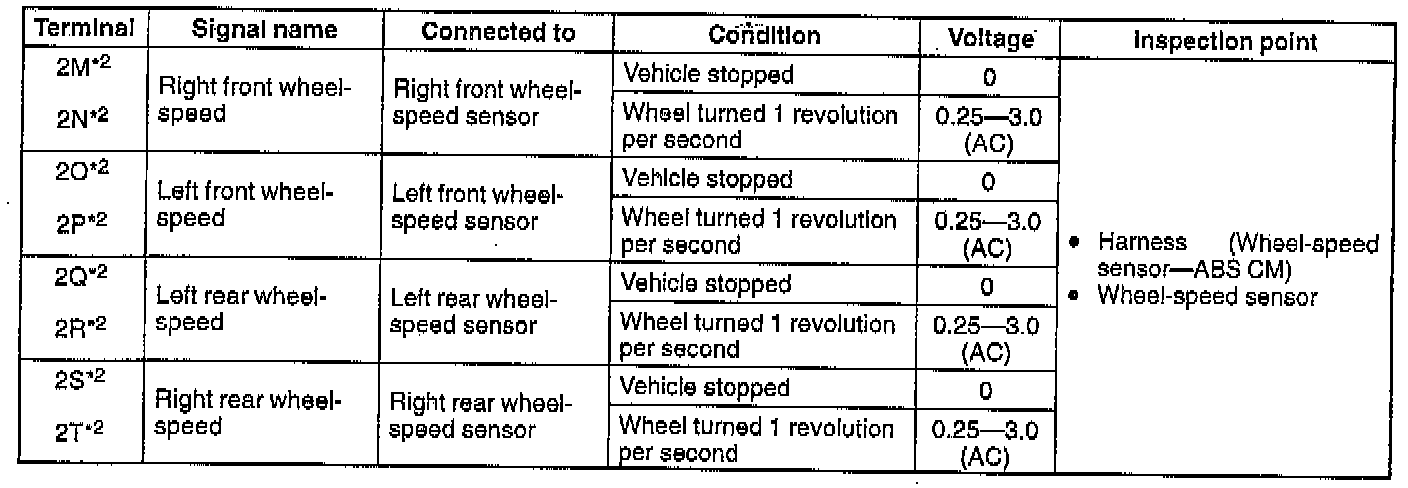

(Part 2 Of 2):

*1 Solenoid valve and ABS motor are ON only when ABS is functioning. Voltage when solenoid and motor are ON can be measured by following system Inspection. Testing and Inspection

*2 Check following terminals in AC range: 2M-2N (right front, 2O-2P (left front), 2R-2Q (left rear), 2S-2T (right rear). In DC range, voltage will be approx. 0.5-1.0 V (with Ignition switch ON).
