System Specifications

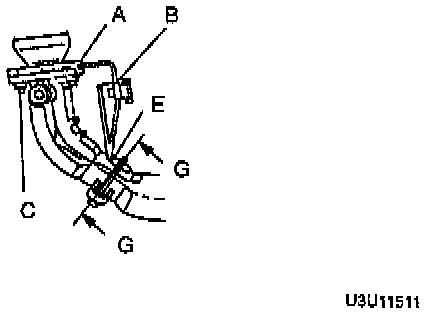

TIGHTENING SPECIFICATIONS
Nut A: 19-25 Nm (14-18 ft. lbs.)
Bolt B: 38-51 Nm (28-38 ft. lbs.)
Nut C: 38-51 Nm (28-38 ft. lbs.)

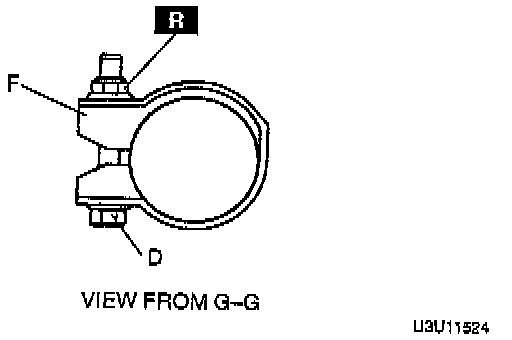

Bolt D: 7.9-10.7 Nm (69.5-95.4 inch lbs.)
