Battery: Testing and Inspection

WARNING
^ Hydrogen gas is produced during normal battery operation. A battery-related explosion can cause serious injury. Keep all flames (including cigarettes), heat and sparks away from the top and surrounding area of open battery cells.


CAUTION

^ To prevent damage to electrical components or the battery, turn all accessories off and stop the engine before performing maintenance or recharging the battery.

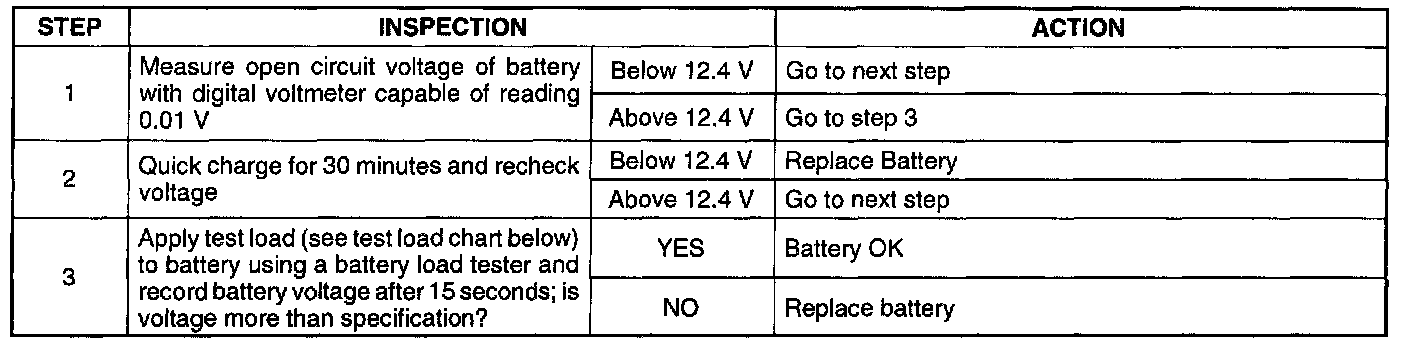

Check the battery in the following procedure

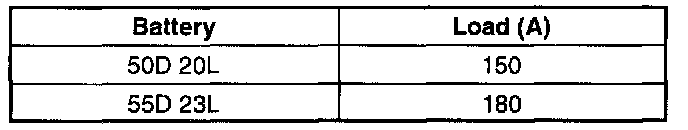

Test load chart

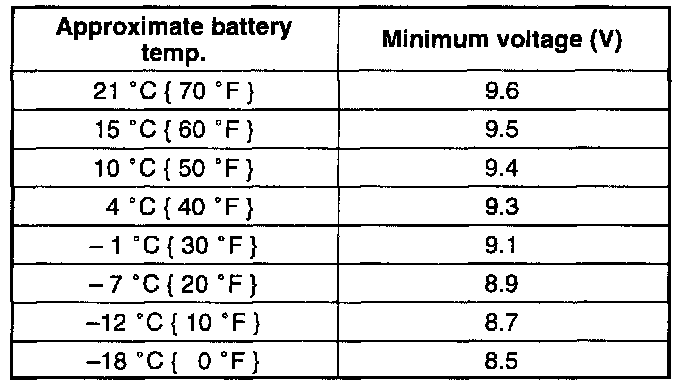

Battery voltage with load
