Power Door Lock System

^ When there is malfunction in power door lock system without keyless entry system, perform troubleshooting No.4-7 according to symptom.
^ For malfunction in power door lock system with keyless entry system, perform preliminary inspection at first, then perform troubleshooting No.1-3 and No.8.

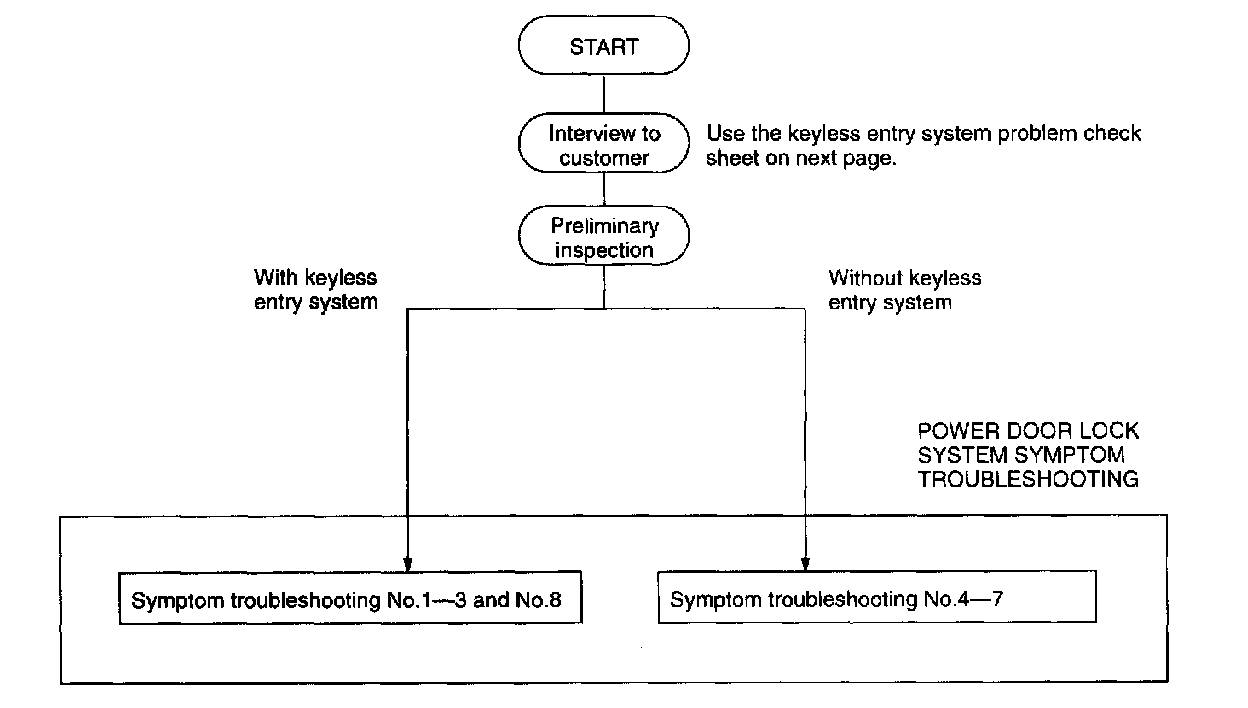

Flowchart


^ Go to symptom troubleshooting after identifying specific malfunction by doing keyless entry preliminary inspection.

NOTE: For the steps which have asterisk (*), inspect connections and damages of connector and terminal which are performing the inspection first. If there are malfunction, connect connector and terminal securely or repair and replace connector and terminal.
