Inspection of Continuity
1.
Disconnect the
power steering pressure switch connector.
2.
Connect an ohmmeter to the
power steering pressure switch.
3.
Start the engine and let it at idle. Check continuity of the
power steering pressure switch while turning steering wheel.

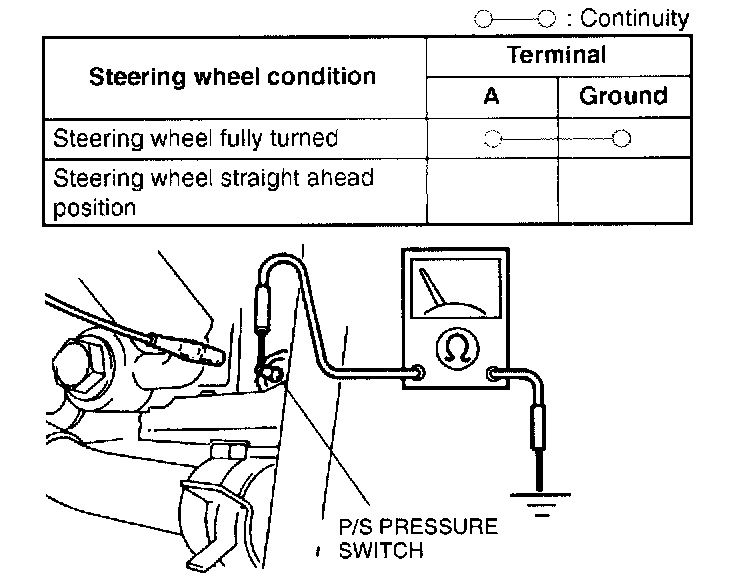

NOTE: Test at connector in image.
4.
If not as specified, replace the
power steering pressure switch.
