Key On Engine Off (KOEO) Self-Test Procedure
KEY ON ENGINE OFF SELF-TEST PROCEDURE 1.
Perform the "New generation star (NGS) tester hook-up procedure".
2.
Perform the "Reading DTCs procedure".
3.

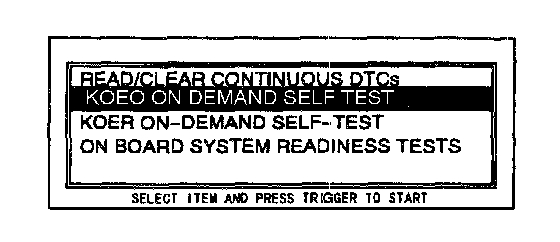

Move the cursor to KOEO ON-DEMAND SELF-TEST. Press the trigger key to enter this selection.
4.
Follow operating instruction from the menu.
5.
NOTE any KOEO DTCs. Press CANCEL. Perform KOER Self-Test.
