Symptom Related Diagnostic Procedures
NOTE: Self-Test Diagnostics must be performed be fore proceeding to Symptom Troubleshooting Chart.
SYMPTOM TROUBLESHOOTING CHART

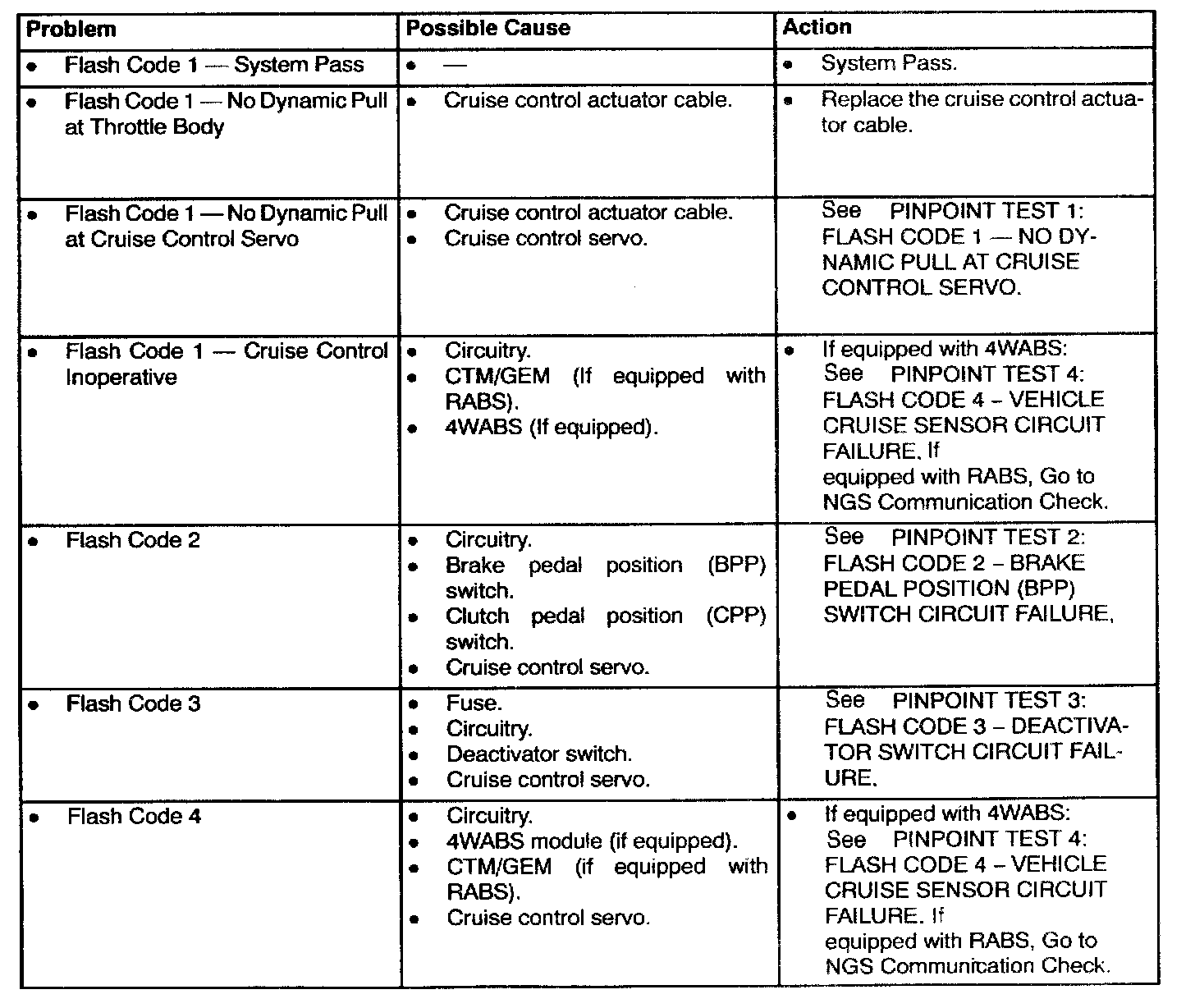

Part 1 of 2

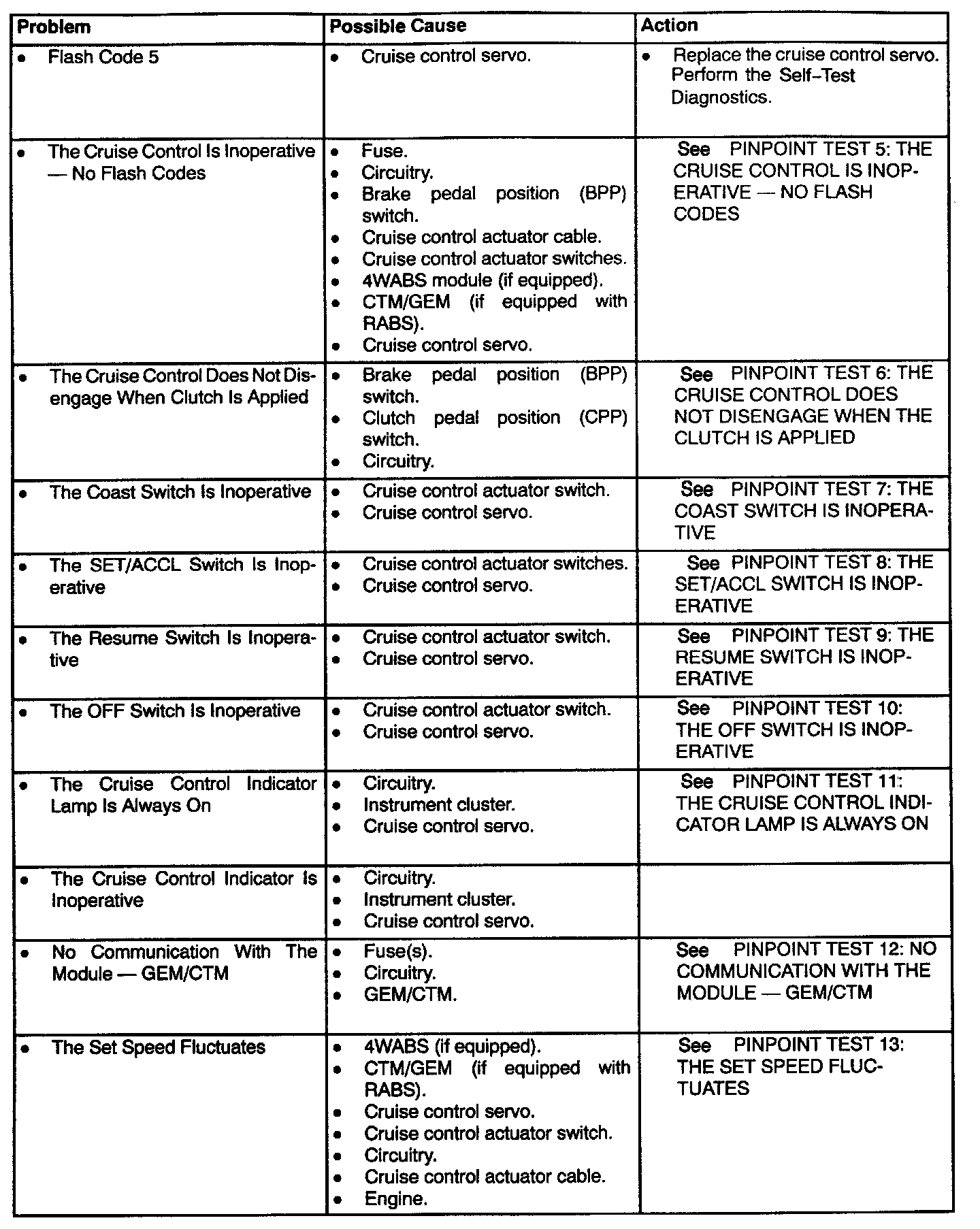

Part 2 of 2
NOTE: New
cruise control diagnostic software is available in version 12 or higher for New Generation STAR
(NGS) Tester 418-F048 (007-00500). When using this software it is necessary to use Cruise Control Cable 005-00586 with NGS Tester.
