Tightening Specifications
CAUTION: Do not reuse the
cylinder head bolts. They are torque-to-yield. Reuse of the cylinder head bolts may cause damage to the engine.

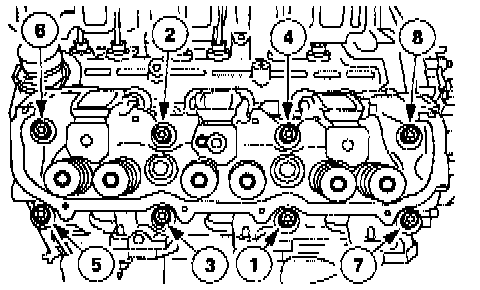

Tighten the bolts in sequence in three steps:
Tighten to
65 Nm (48 ft. lbs.) Tighten to
80 - 85 Nm (59 - 68 ft. lbs.) Tighten an
additional 80 - 85 degrees.
