Front Seat
1.
Remove the front seat.
2.

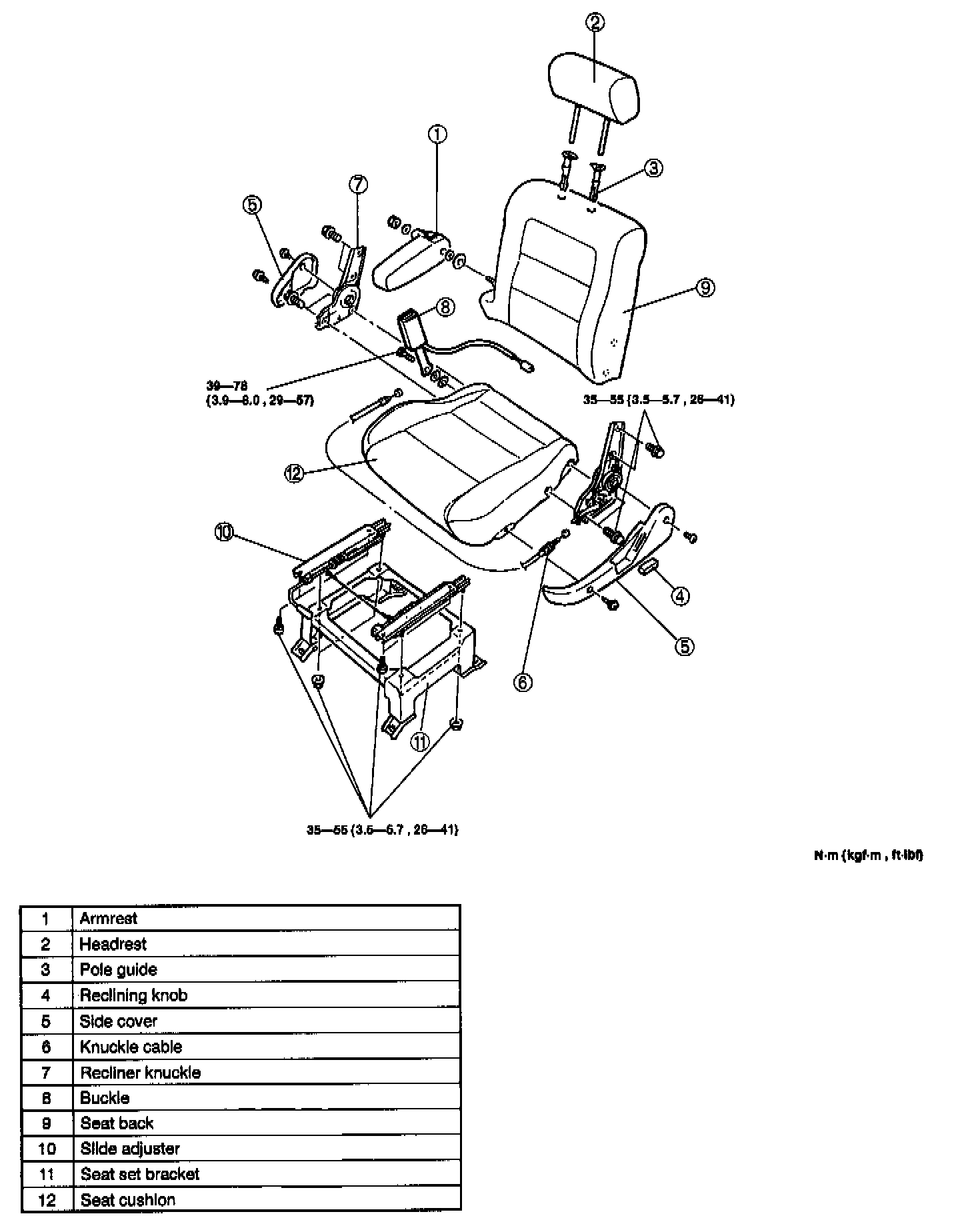

Disassemble in the order indicated in the table.
3.
Assemble in the reverse order of disassembly.
4.
Install the front seat.
Recliner Knuckle Disassembly Note 1.
Remove the hog rings from the rear of the
seat back.
2.
Lift the
seat back trim until the recliner knuckle installation bolts are accessible.
3.
Remove the recliner knuckle installation bolts, and remove the recliner knuckle.
