Rear

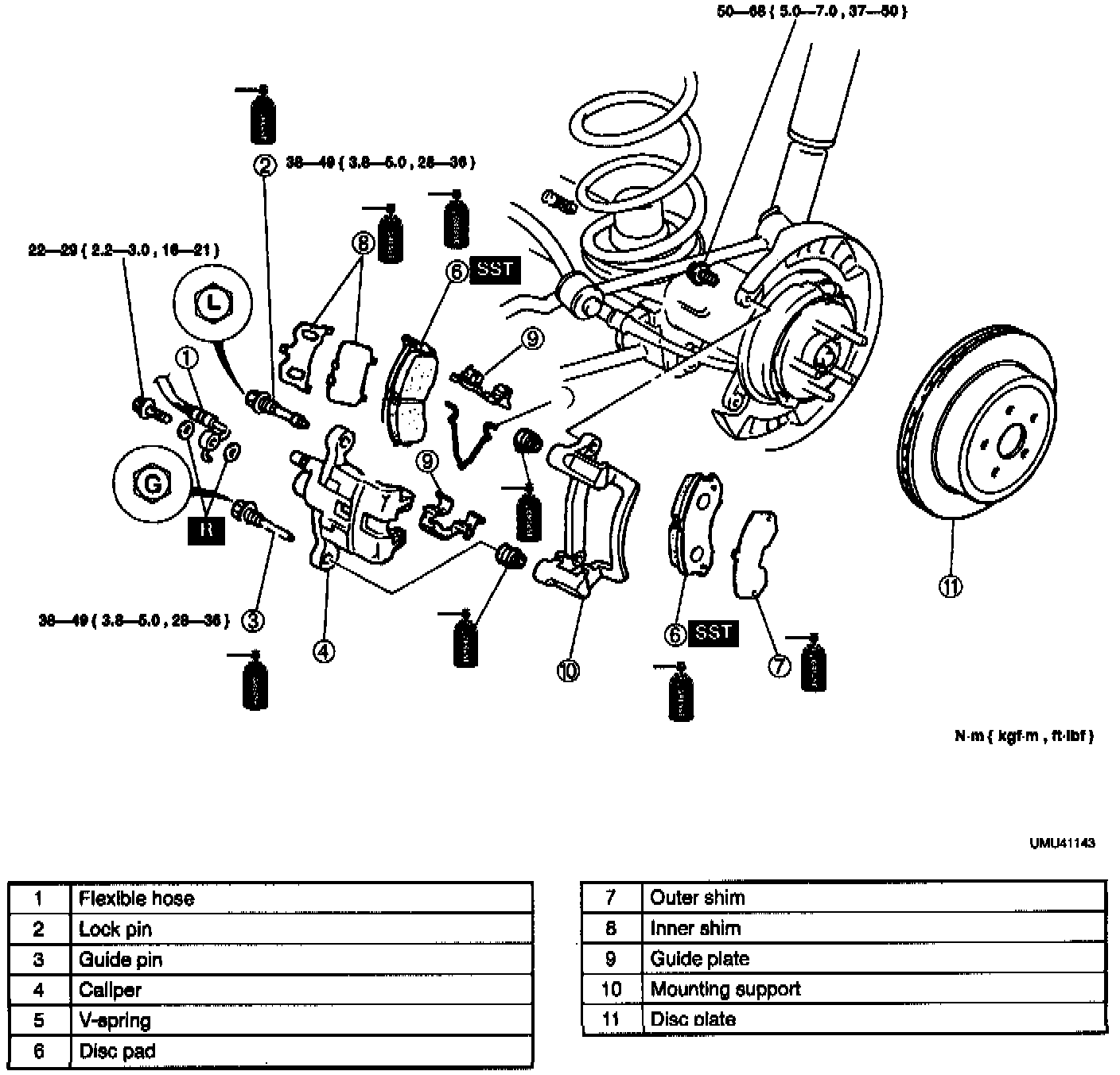

REMOVAL / INSTALLATION 1.
Remove in the order indicated in the table.
2.
Install in the reverse order of removal indicated in the table.
3.
After installation, depress the pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.
4.
If the disc plate has been replaced, settle the
parking brake shoes.
