Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

Air Temperature Sensor Test Procedures

1. Remove the intake air temperature sensor (dynamic chamber).
2. Place the sensor in water with a thermometer, and heat the water gradually.
3. Measure the resistance of the sensor by using an ohmmeter.

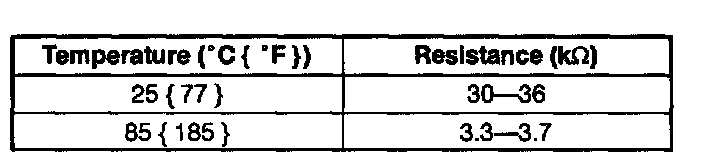

Specification

4. if not as specified, replace the intake air temperature sensor.

Tightening torque
7.9-11.7 N.m { 80 - 120 kgf.cm , 70 - 104 in.lbf }
