Flow of Diagnosis


Foreword

Before Proceeding With The Following Troubleshooting:
- Refer to the basic troubleshooting procedure listed below.
- Perform the diagnostic trouble code inspection.
- If a diagnostic trouble code is displayed, proceed with inspection steps for the code.
- When the engine can be started, perform "Engine Tune-up".

NOTE:
- Disconnecting the battery will reset the memory. Do not disconnect the battery during and after this procedure.
- Vehicle speed and engine speed detected by the PCM may differ from that indicated by the speedometer and the tachometer. Check the vehicle speed and engine speed during driving mode by using the SST (NGS Tester).
- If the OBD II system check is not completed while the drive mode procedure is carried out, the following cause is guessed.
1. The OBD II system detects the malfunction.
2. The drive mode procedure is not completed correctly.

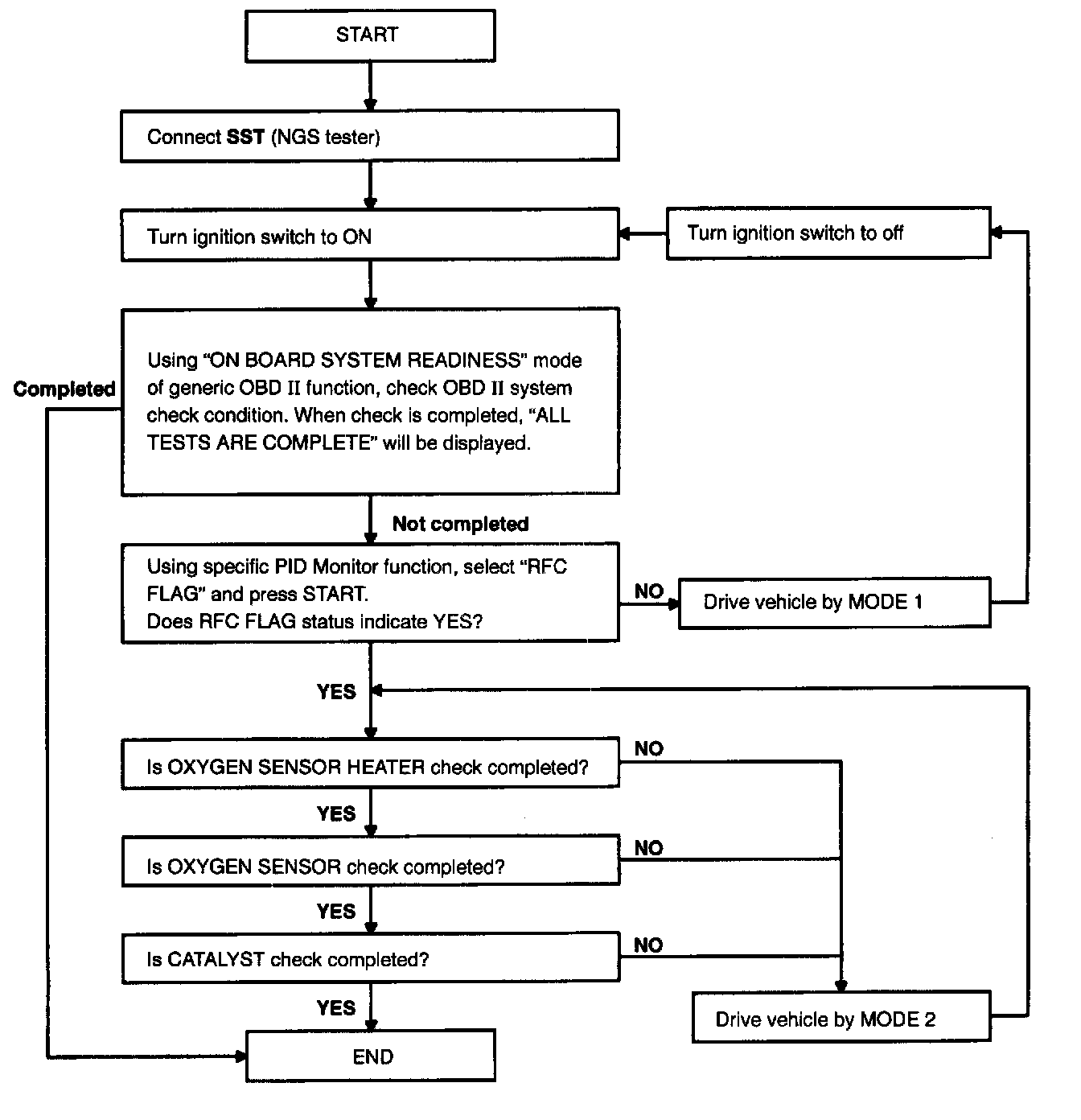

View 1:





View 2:
