Symptom Charts

Symptom Troubleshooting

NOTE:
- If The Malfunction Remains Even Though All Inspections Have Been Performed, Get Assistance From Technical Hotline/your Distributors.

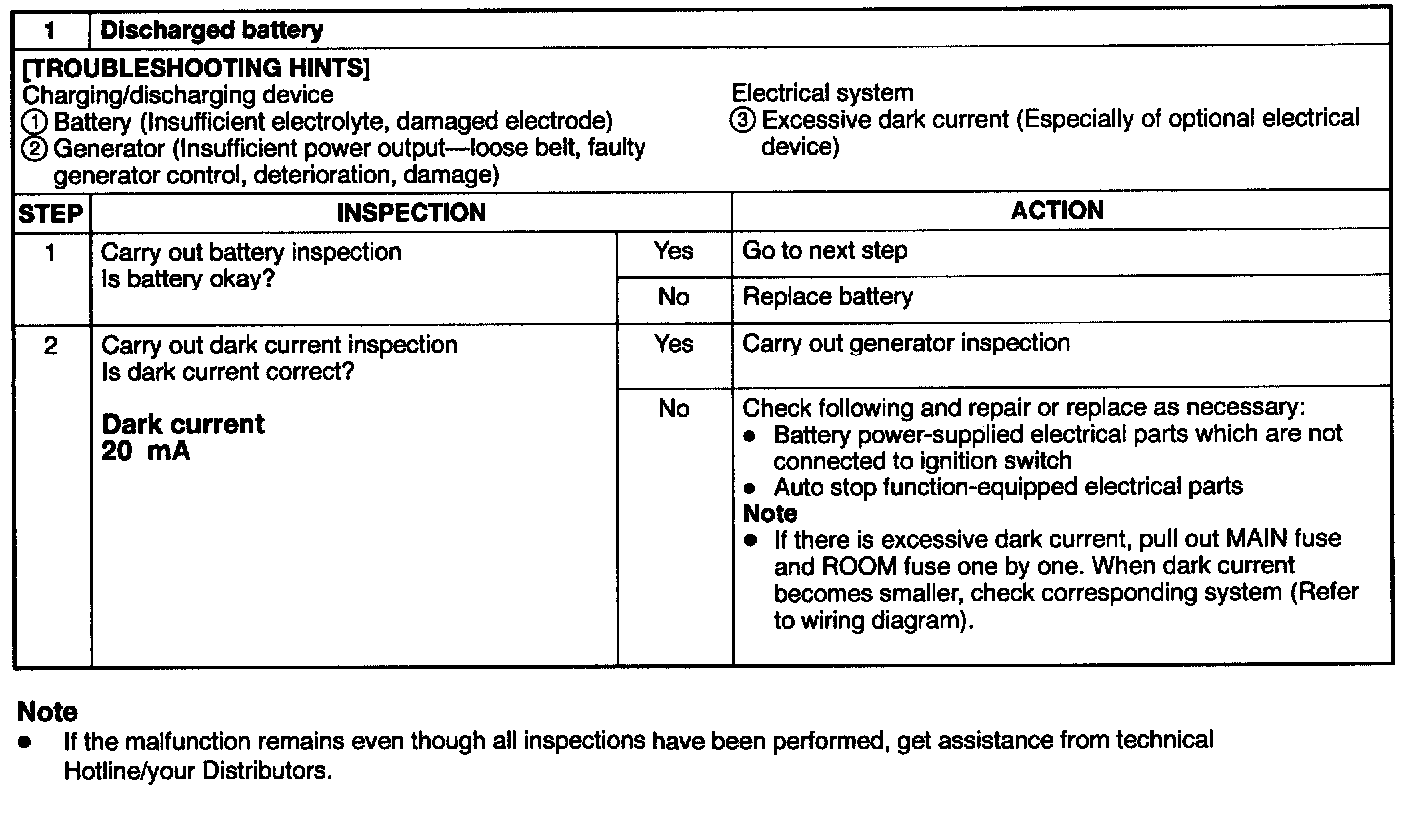

1.Discharged Battery

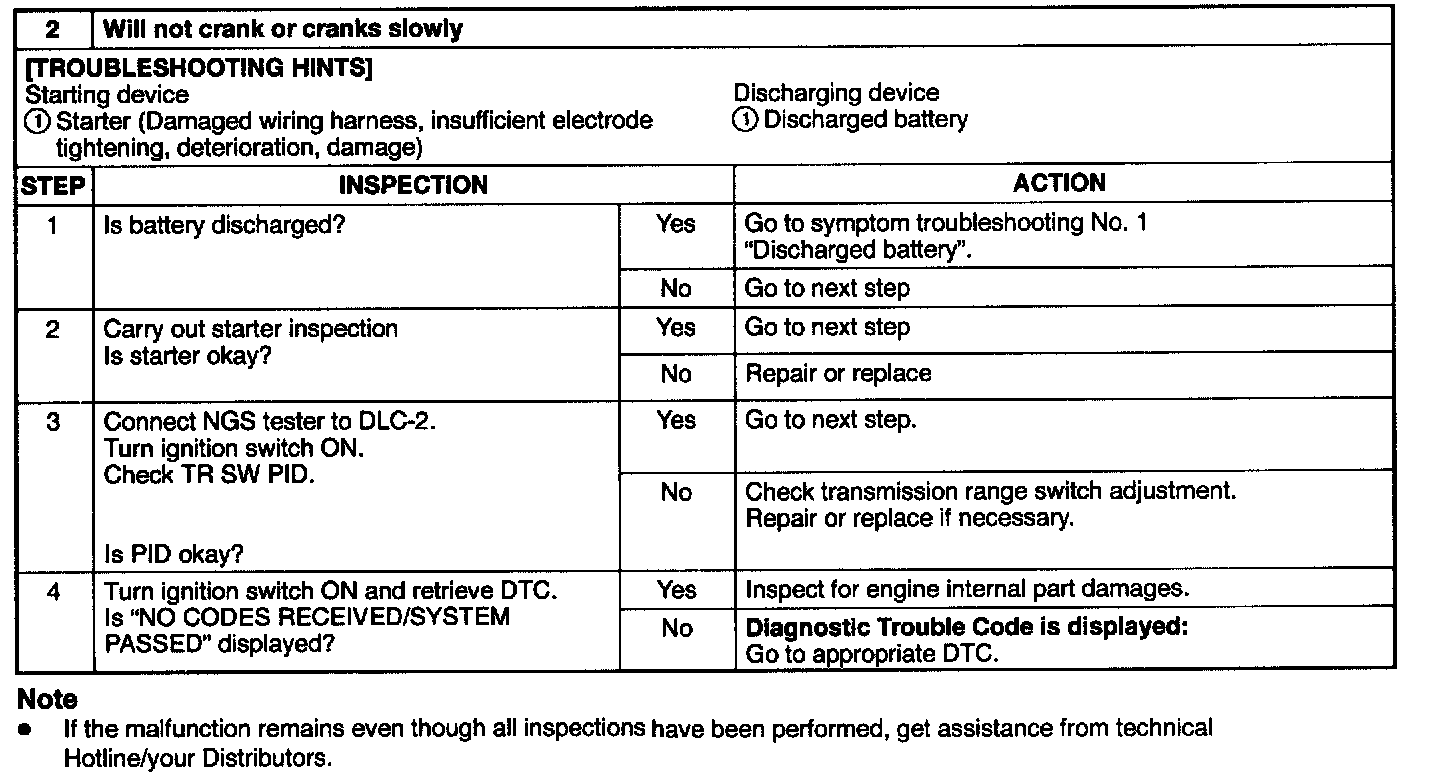

2.Will Not Crank Or Cranks Slowly.

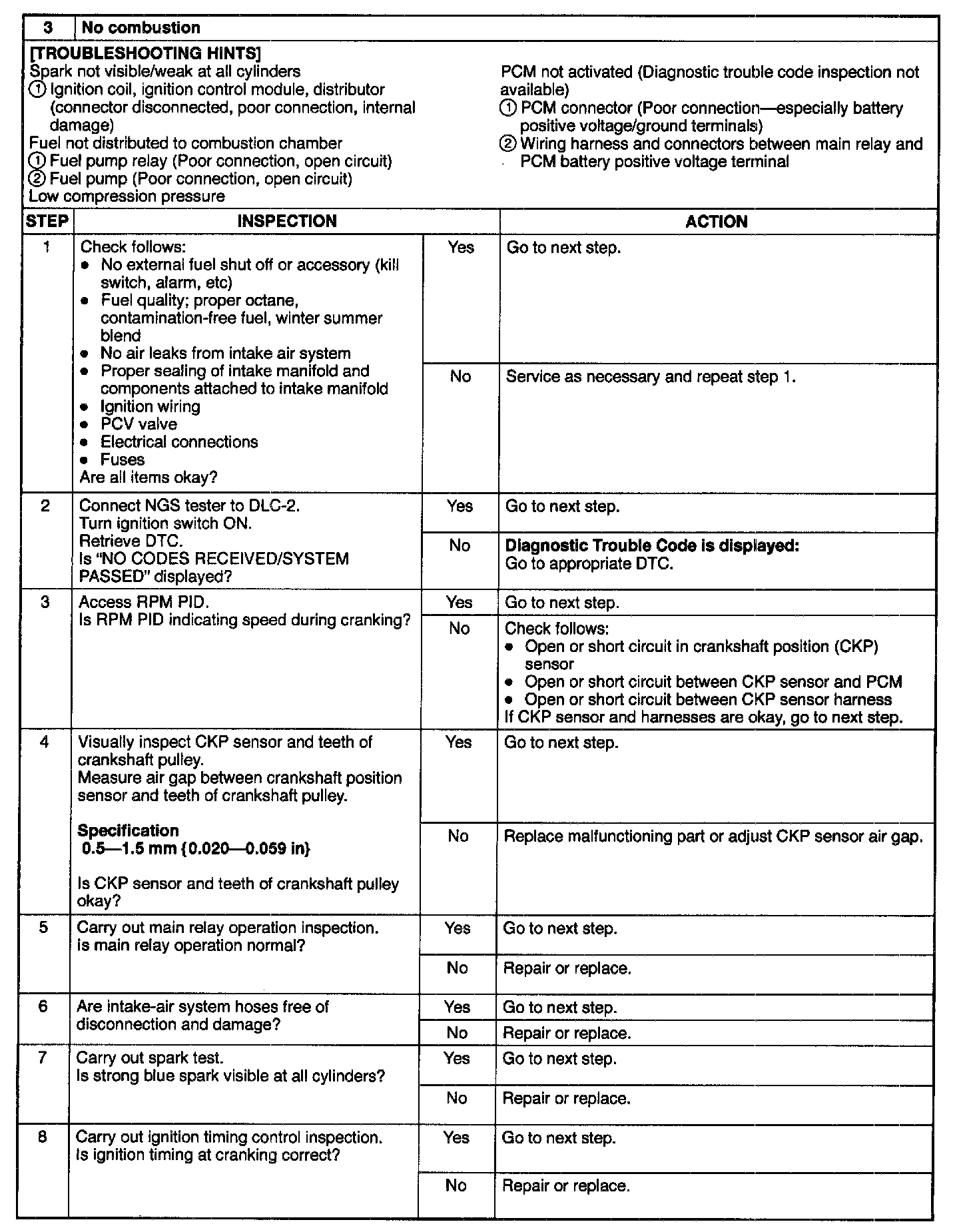

3.No Combustion: Steps 1-8




No Combustion: Steps 9-11

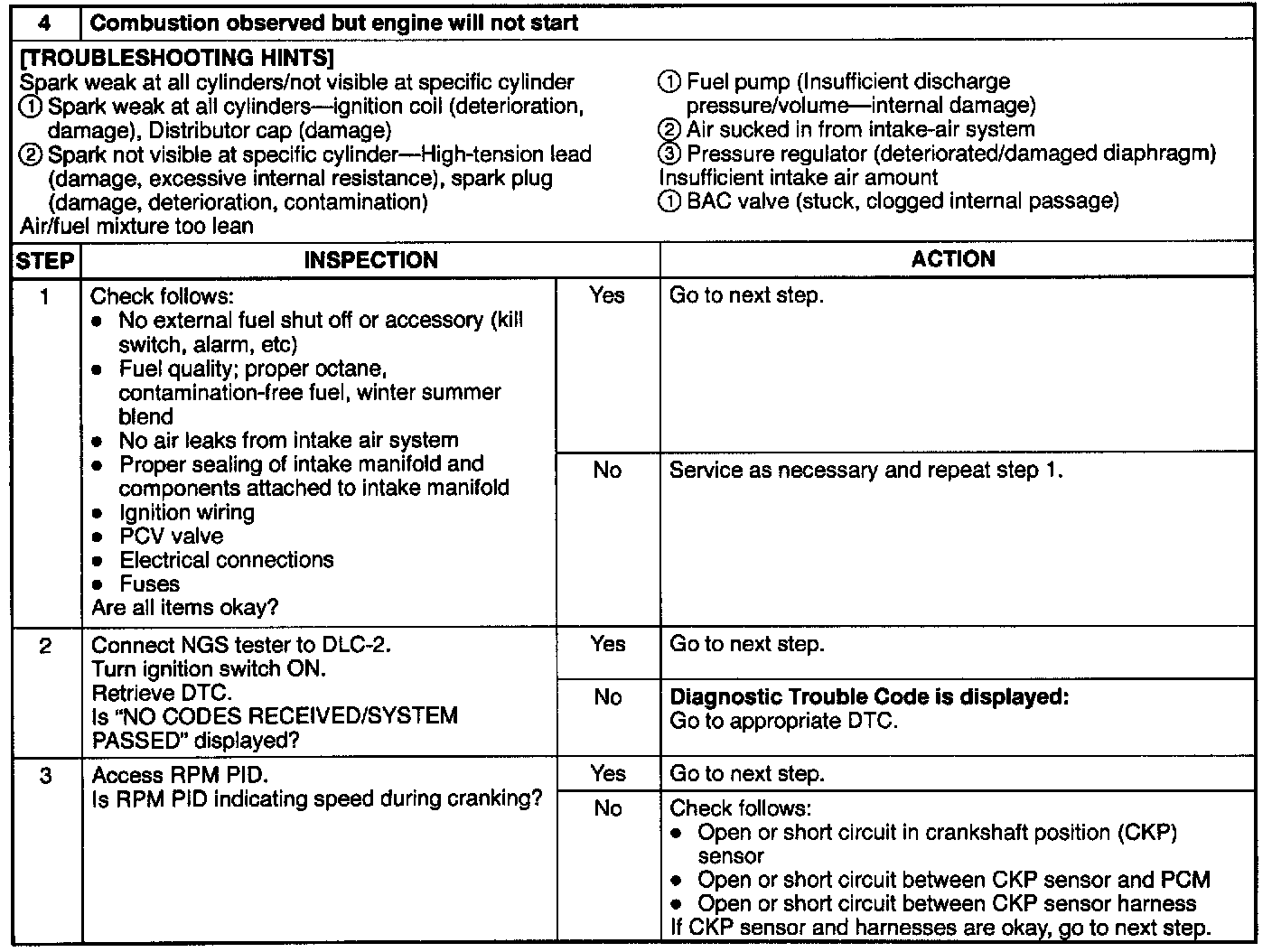

4.Combustion Observed But Engine Will Not Start: Steps 1-3.

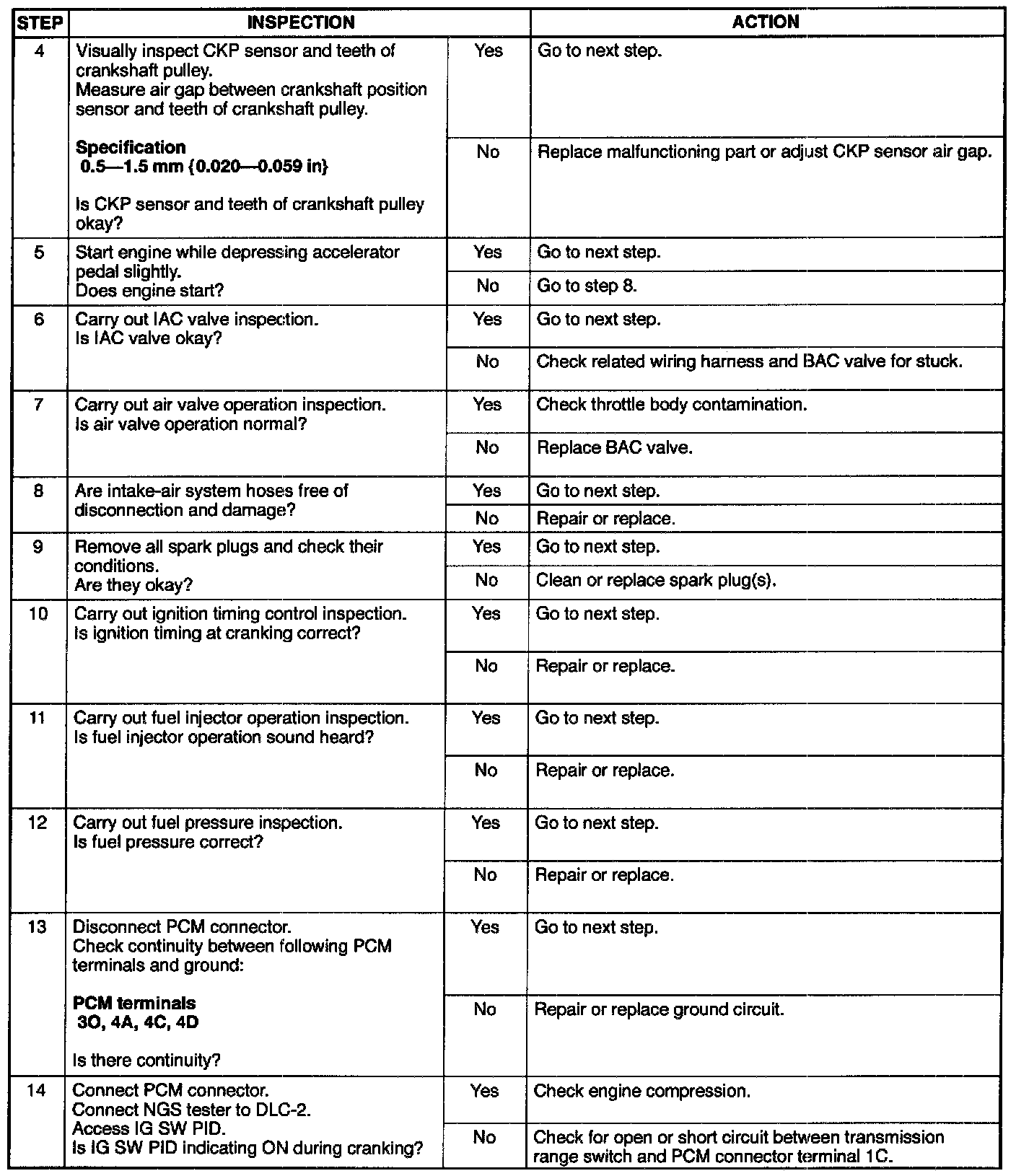

Combustion Observed But Engine Will Not Start: Steps 4-14.

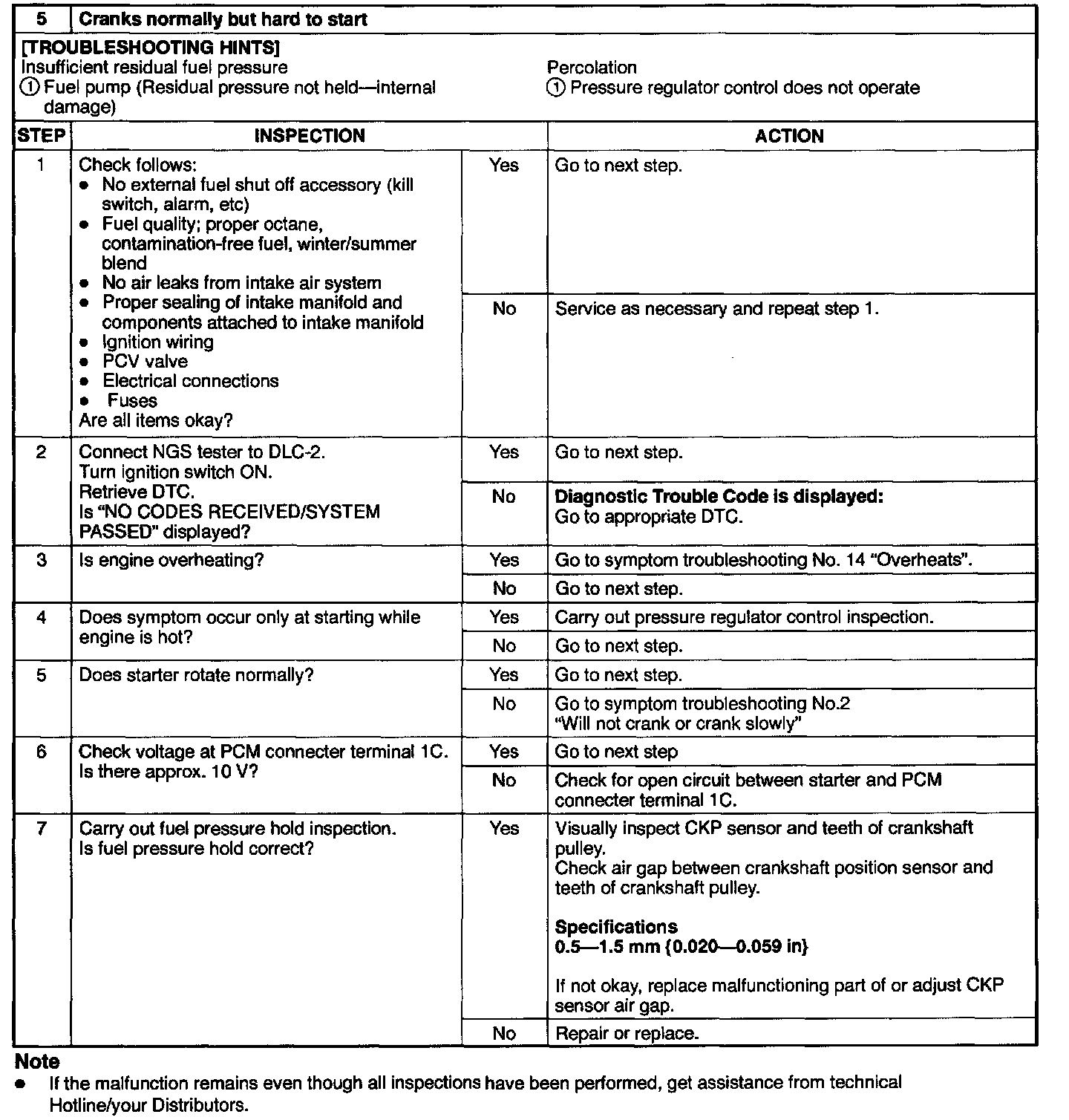

5.Cranks Normally But Hard To Start.

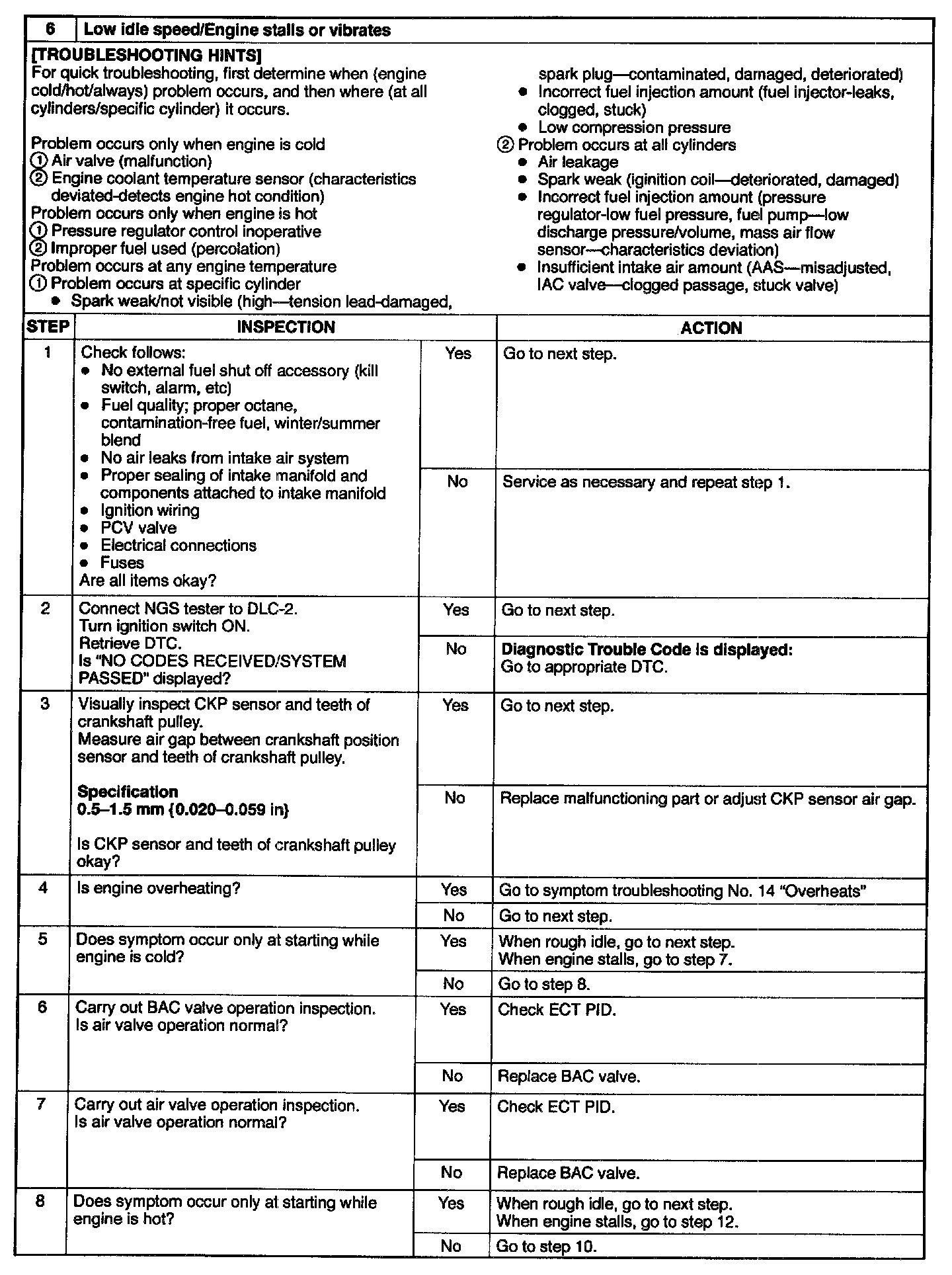

6.Low Idle Speed / Engine Stalls Or Vibrates: Steps 1-8

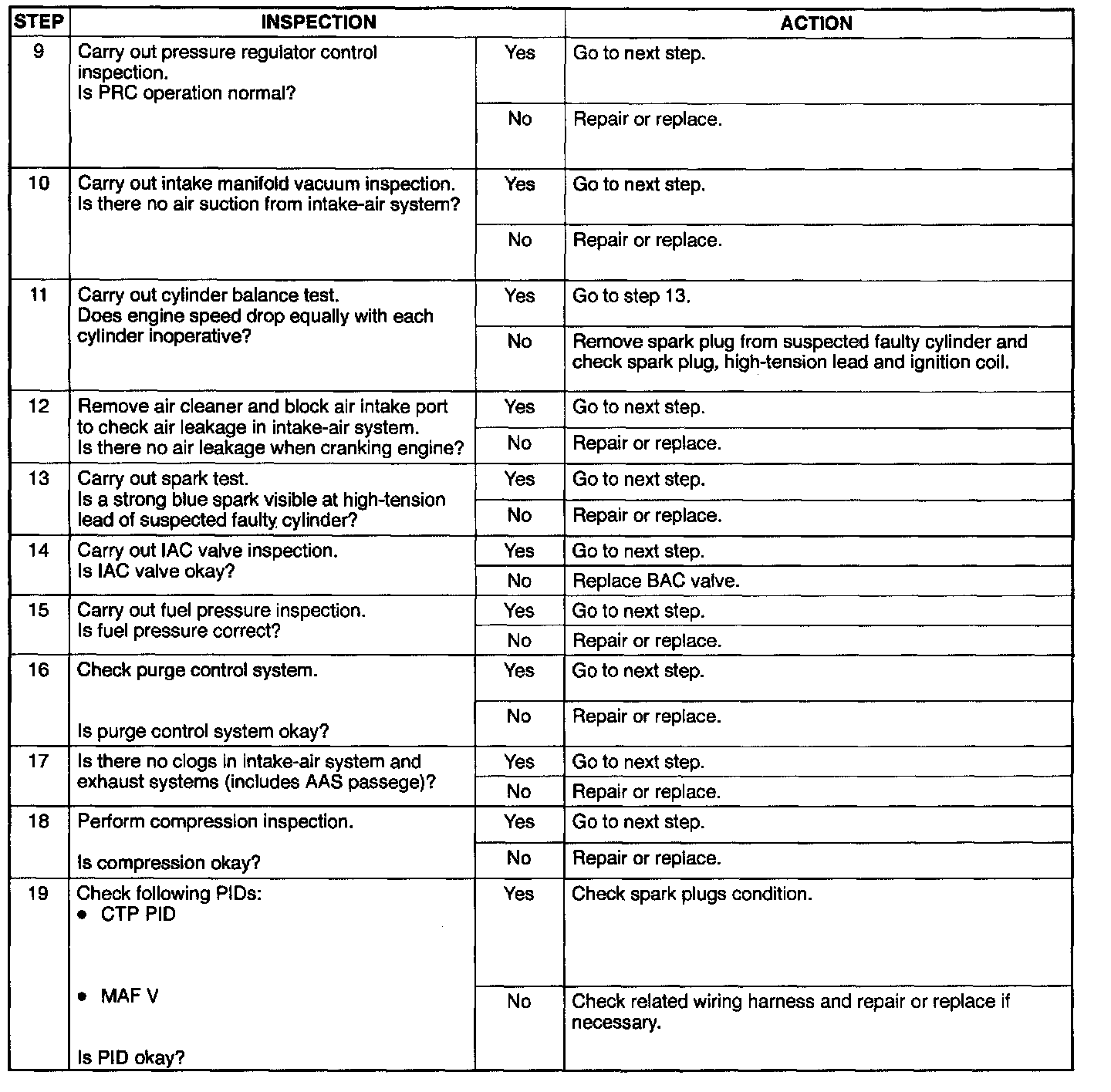

Low Idle Speed / Engine Stalls Or Vibrates: Steps 9-19

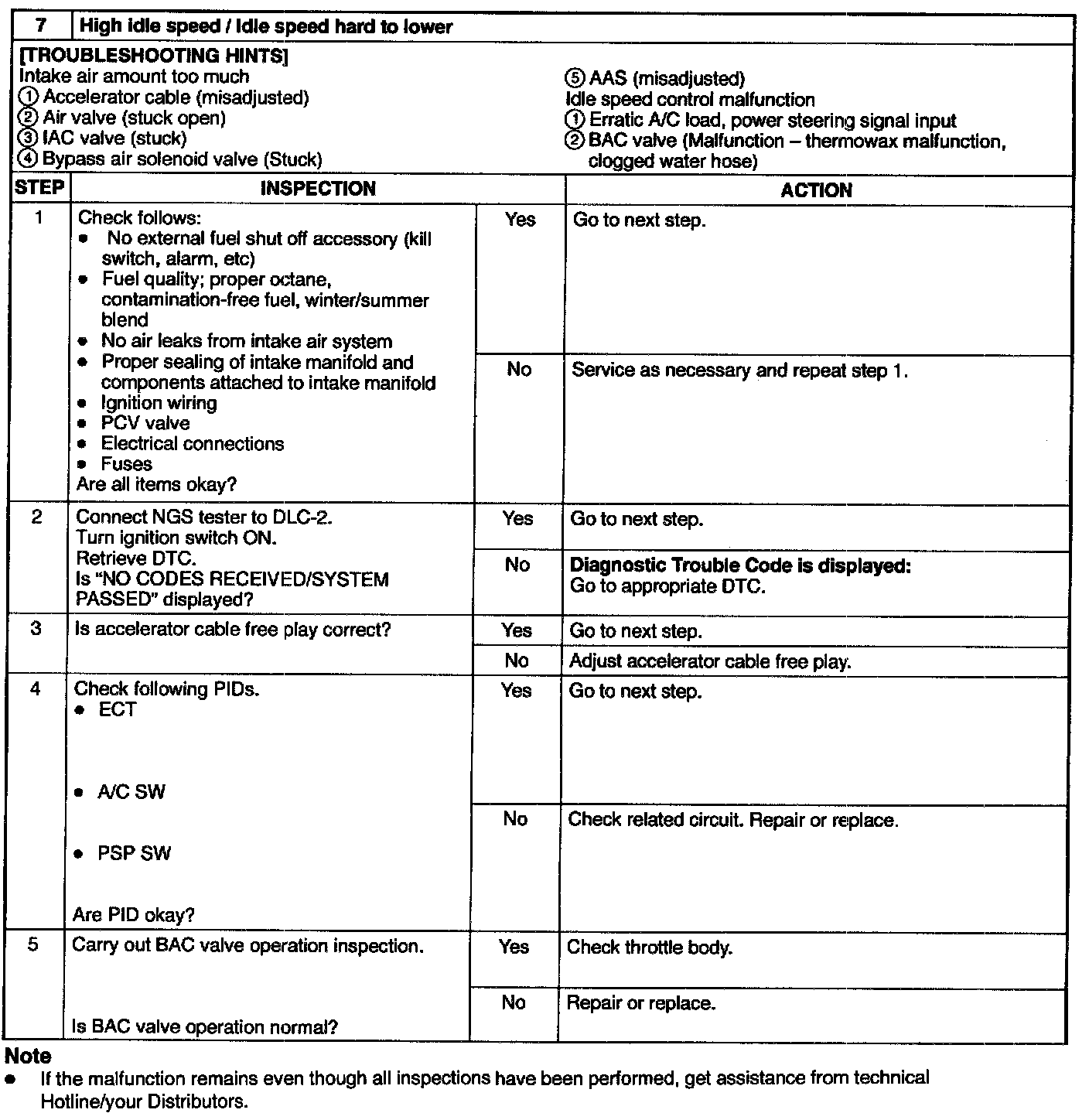

7.High Idle Speed / Idle Speed Hard To Lower.

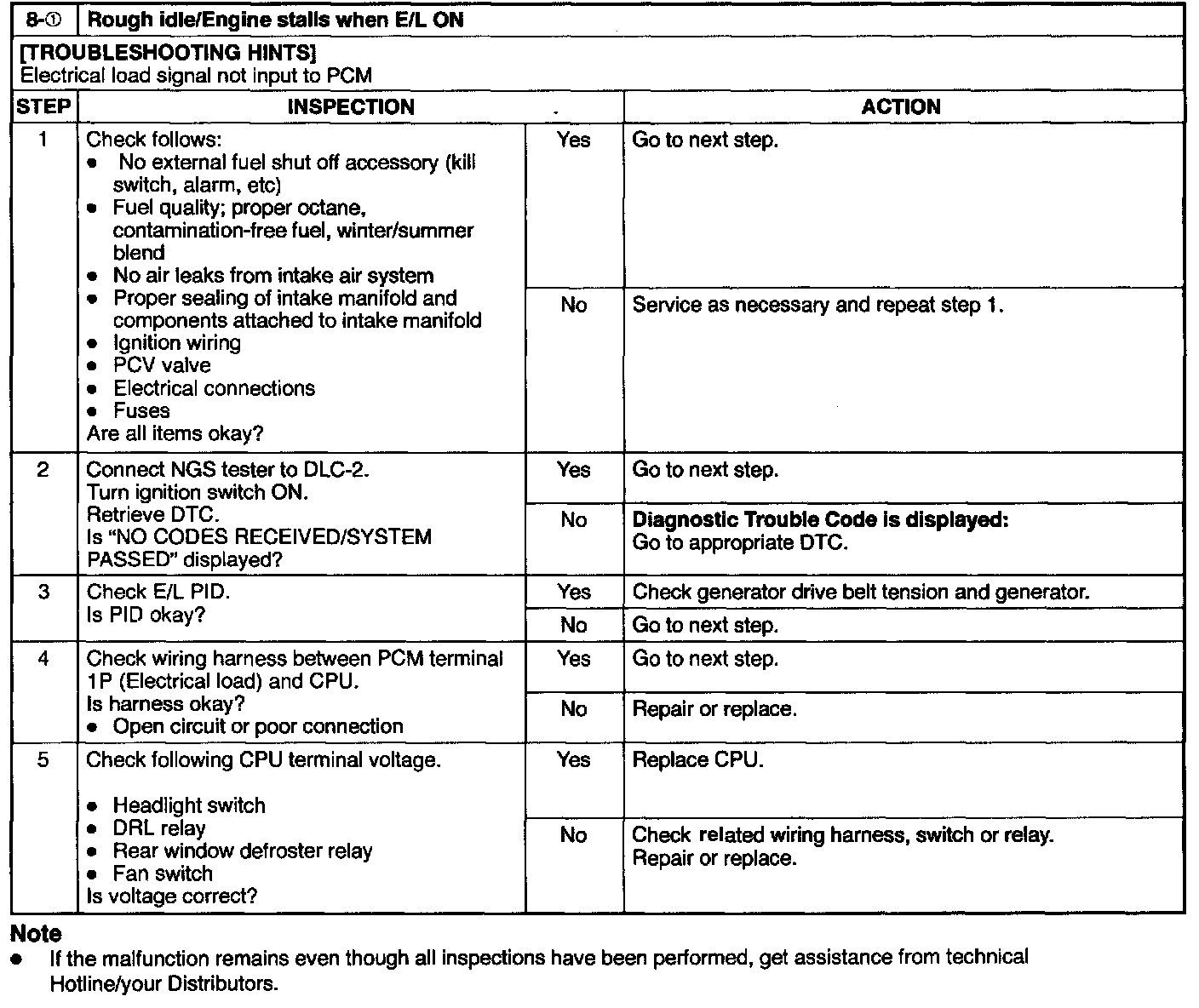

8.Rough Idle / Engine Stalls With E/L On.




9.Rough Idle / Engine Stalls With P/S On: Step 1.




Rough Idle / Engine Stalls With P/S On: Steps 2-3.

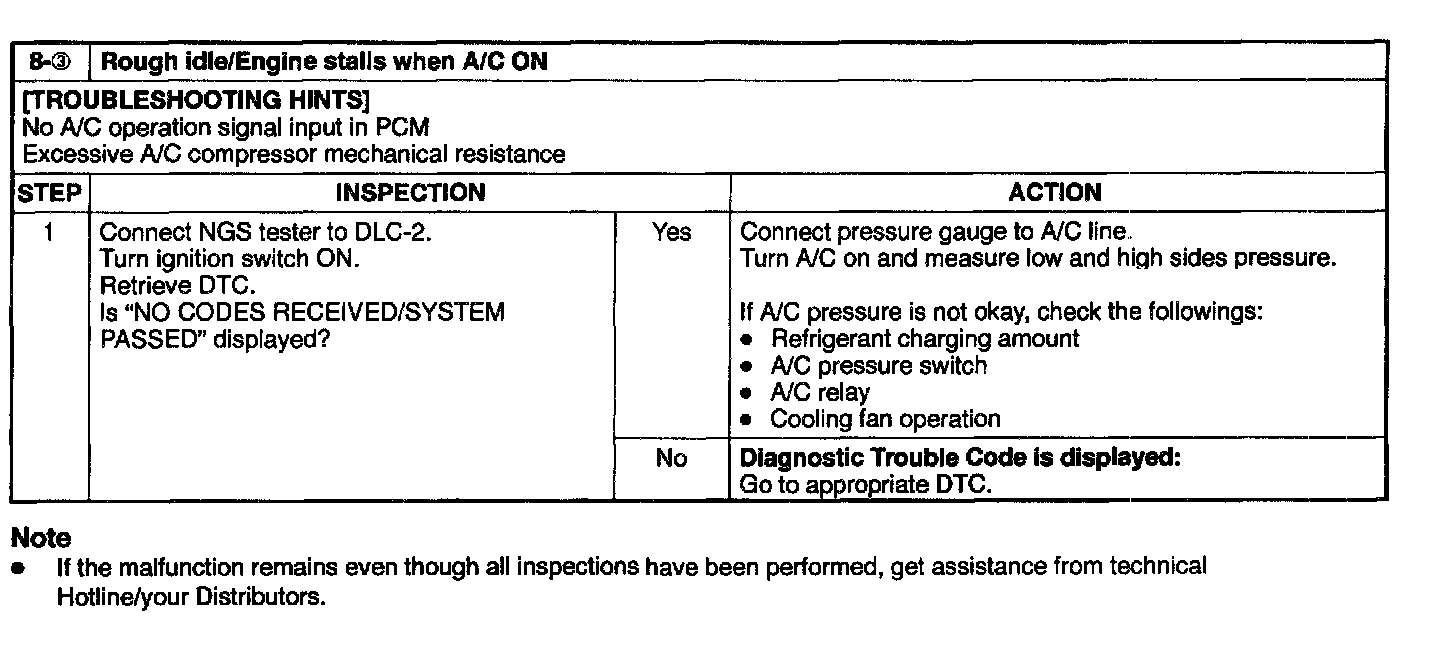

10.Rough Idle /Engine Stalls With A/C On.

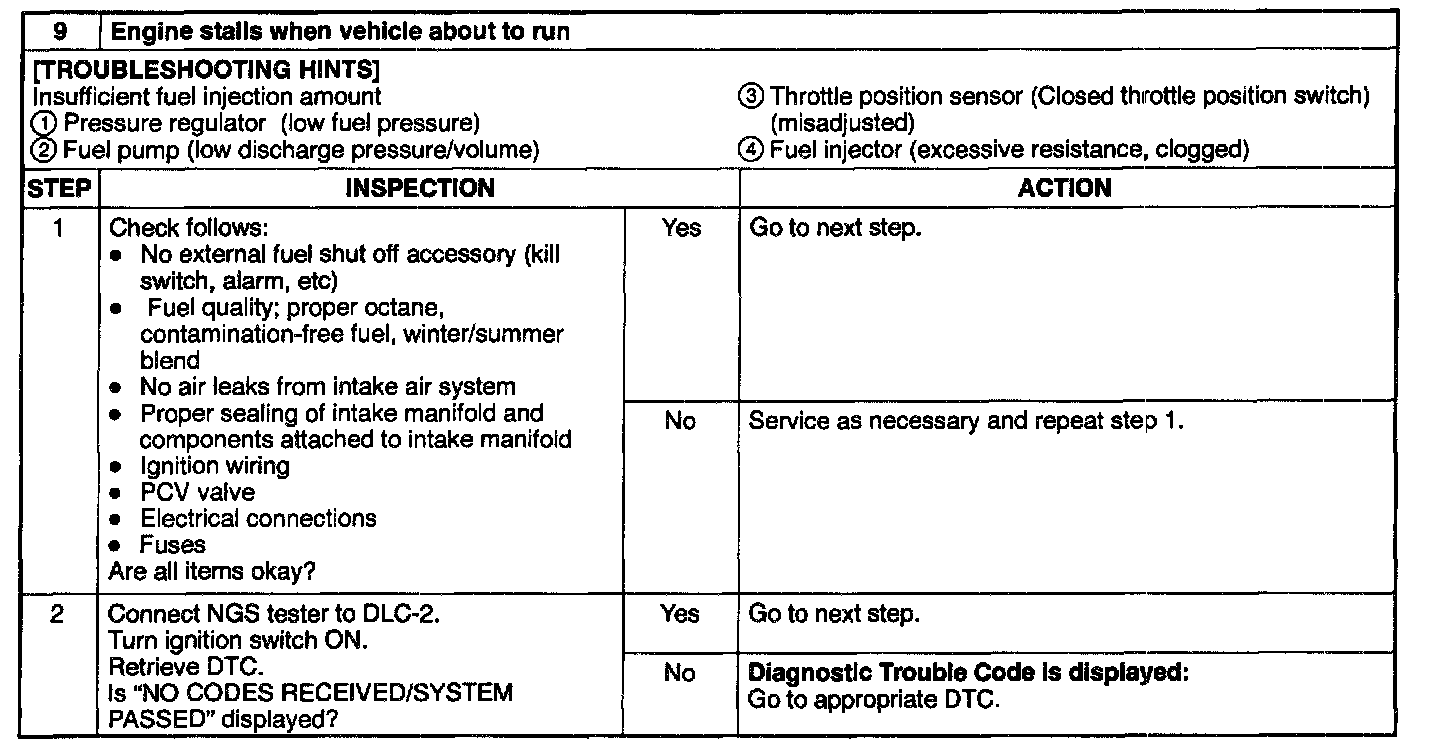

11.Engine Stalls When Vehicle Is About To Run: Steps 1-2.

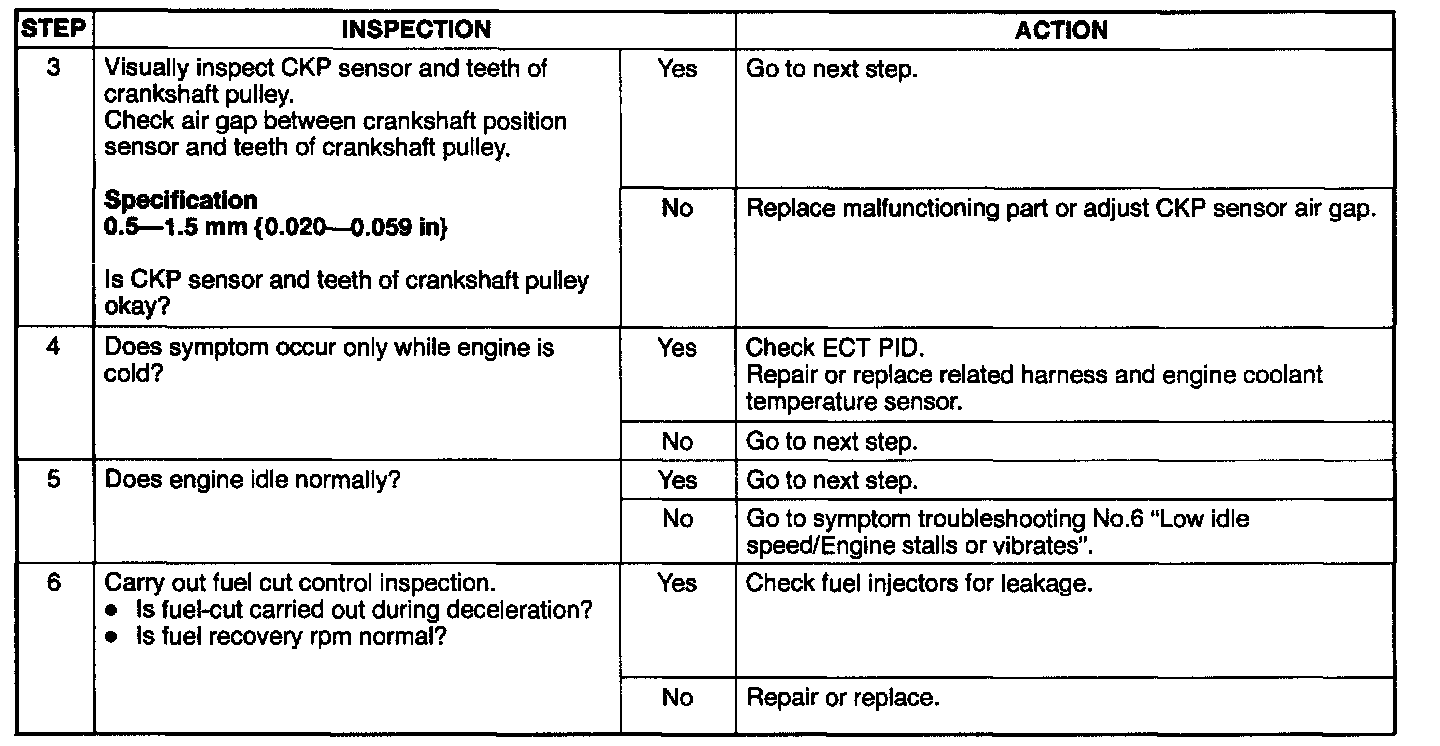

Engine Stalls When Vehicle Is About To Run: Steps 3-6.

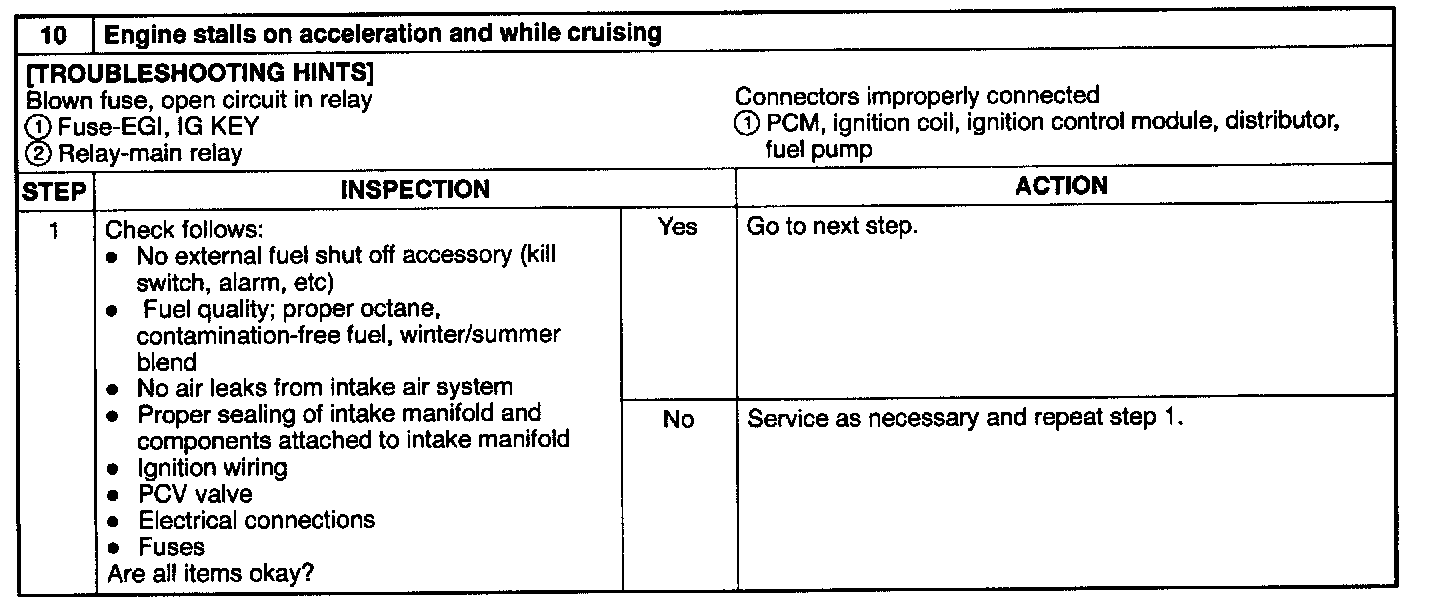

12.Engine Stalls On Acceleration And While Crusing: Step 1.




Engine stalls on acceleration and while crusing: Steps 2-9.

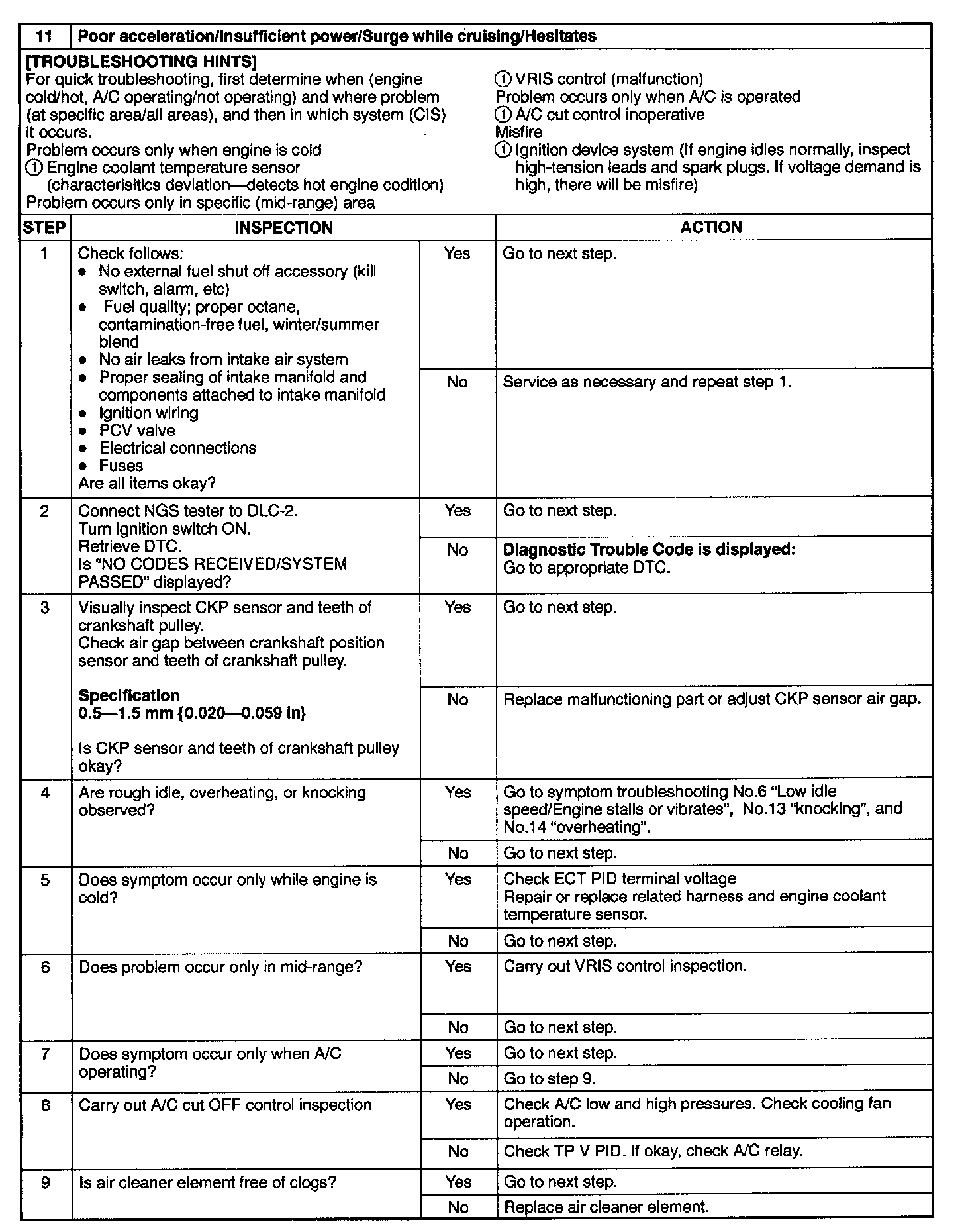

13.Poor Acceleration / Insufficient Power / Surges While Cruising: Steps 1-9.




Poor Acceleration / Insufficient Power / Surges While Cruising: Steps 10-13.

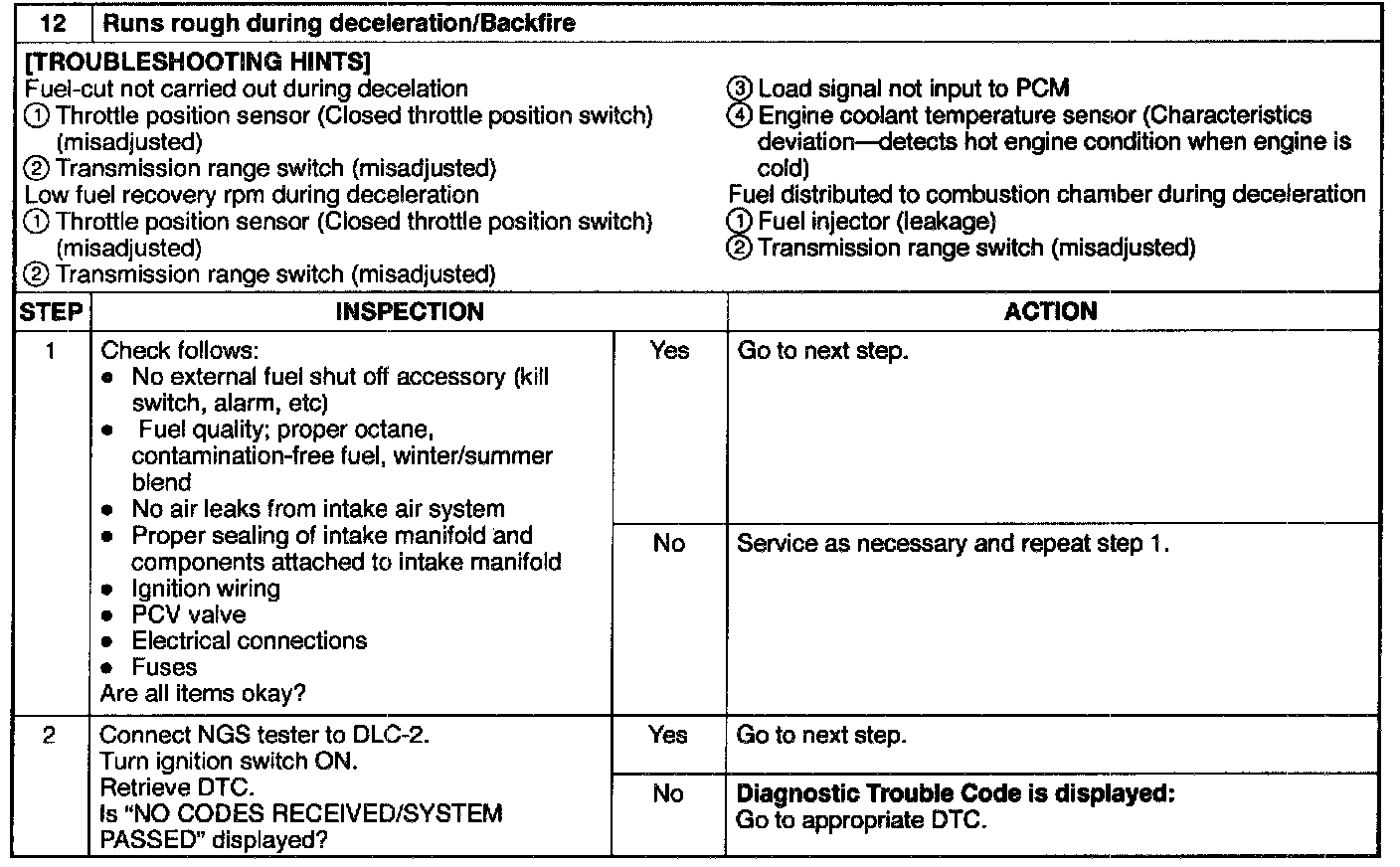

14.Runs Rough During Deceleration / Backfires: Steps 1-2.




Runs Rough During Deceleration / Backfires: Steps 3-6.

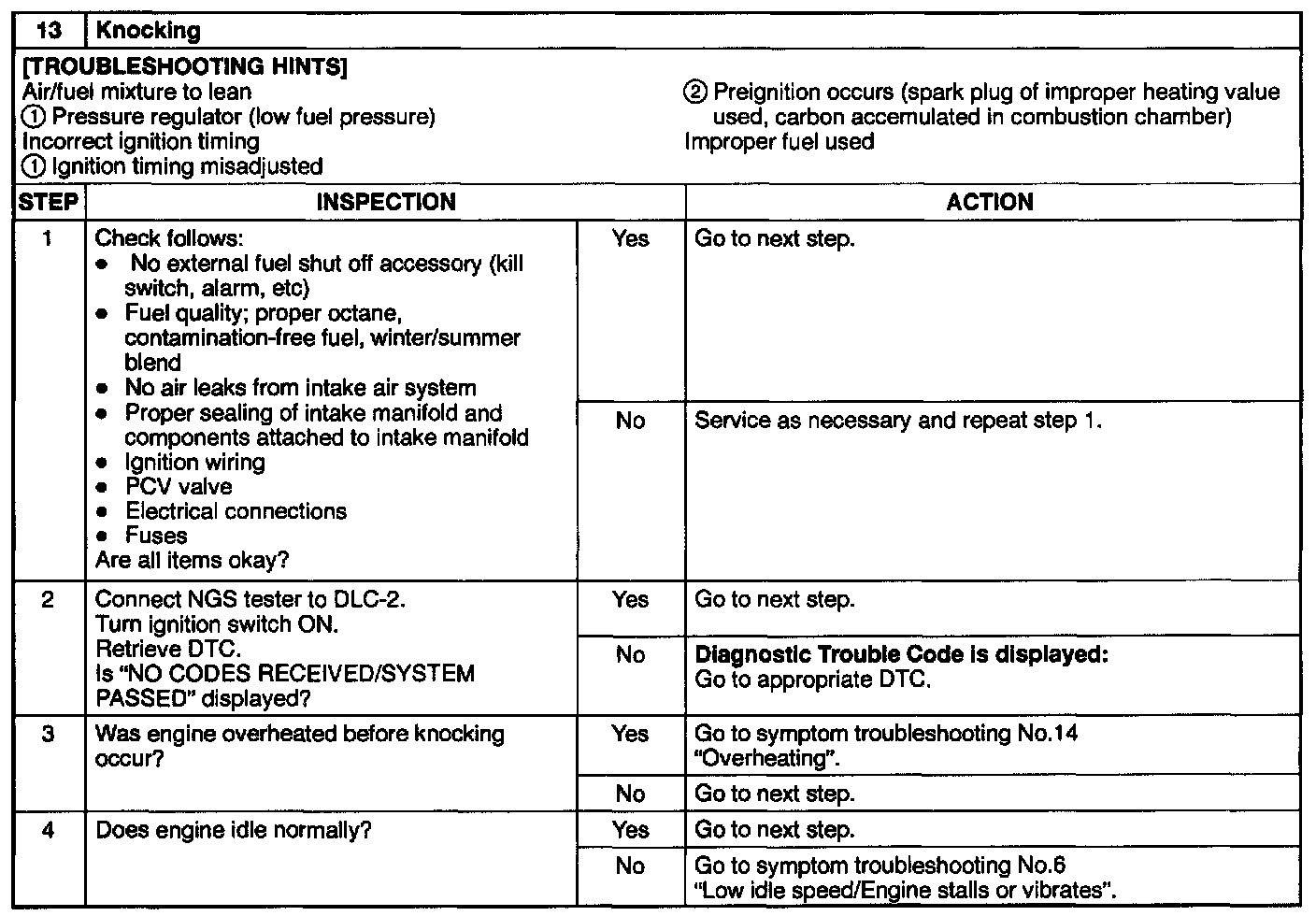

15.Knocking: Steps 1-4.




Knocking: Steps 5-7.

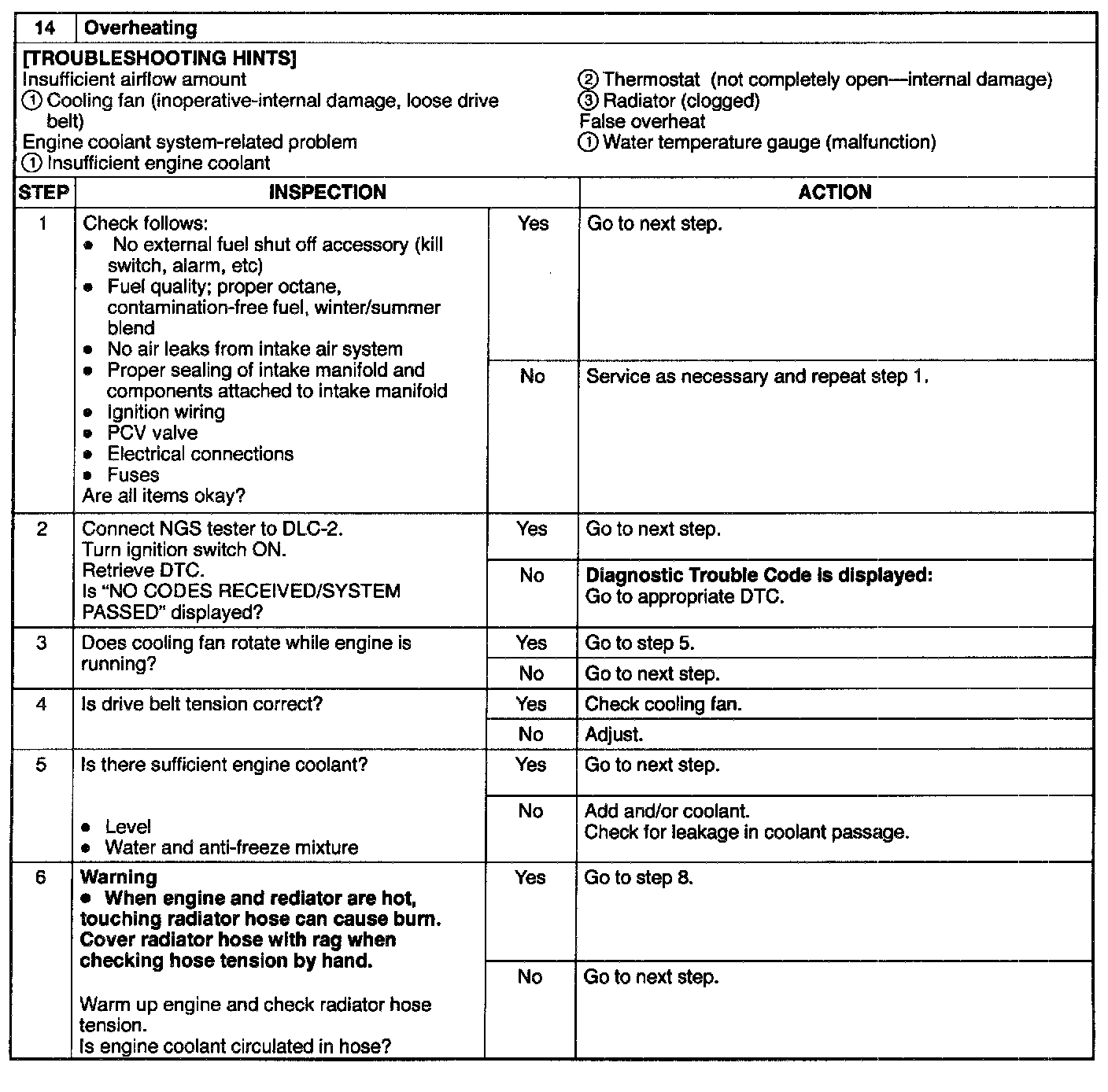

16.Overheating: Steps 1-6.




Overheating: Steps 7-10.

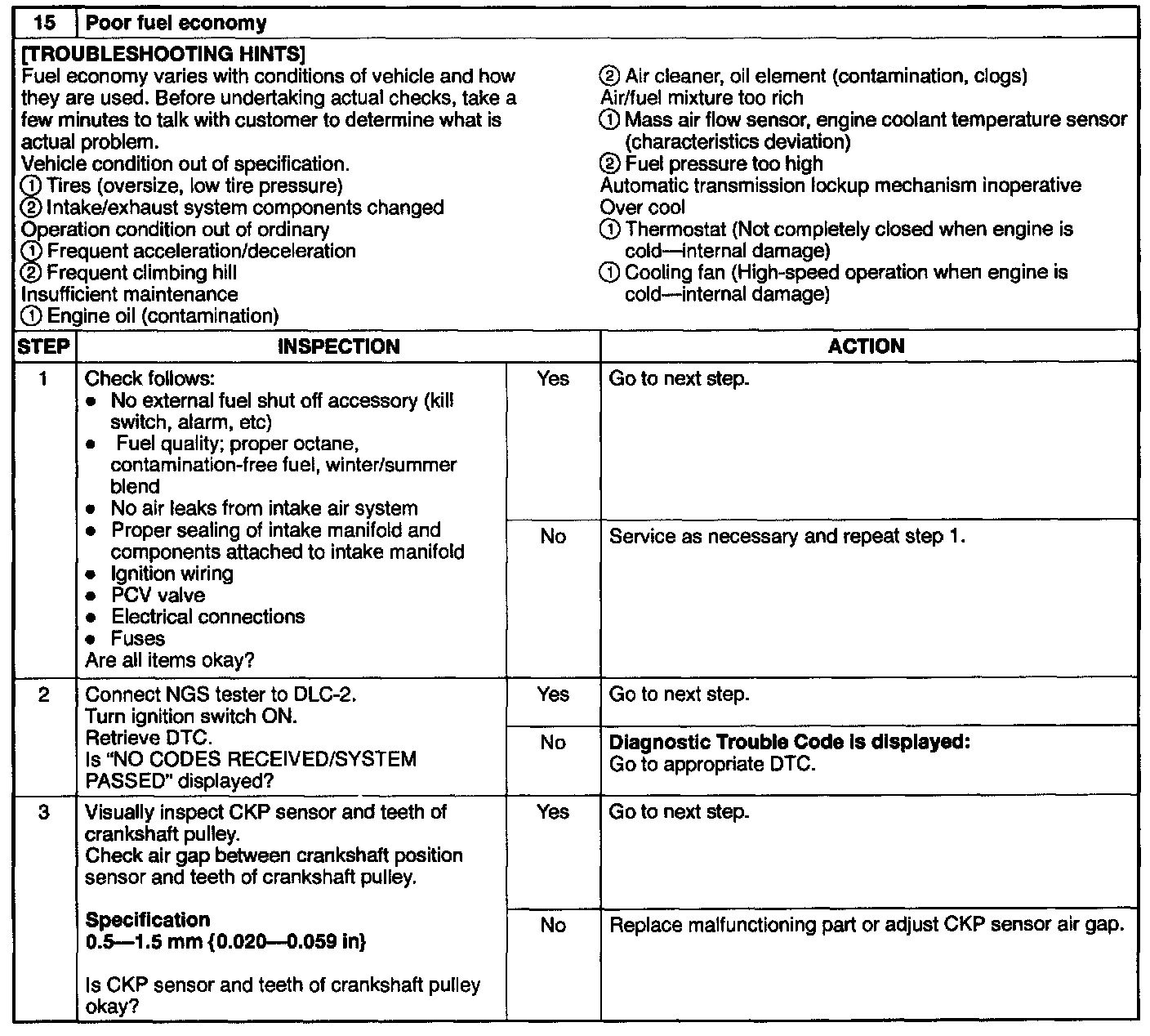

17.Poor Fuel Economy: Steps 1-3




Poor Fuel Economy: Steps 4-6.

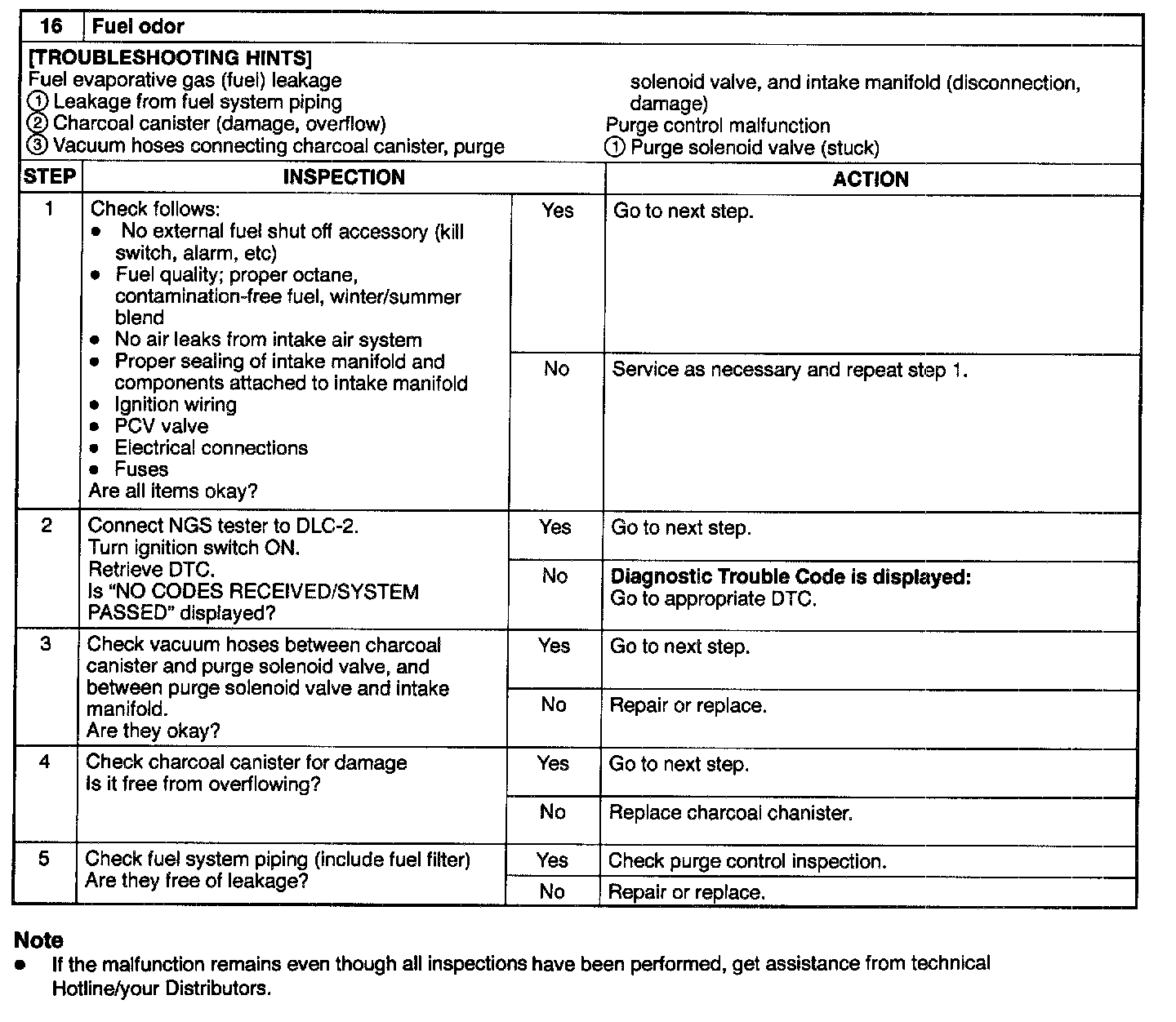

18.Fuel Odor
