Rocker Arm

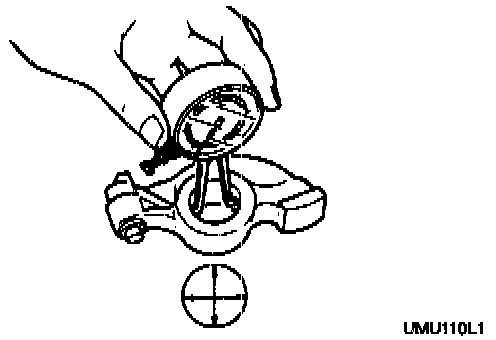

ROCKER ARM INNER DIAMETER Diameter

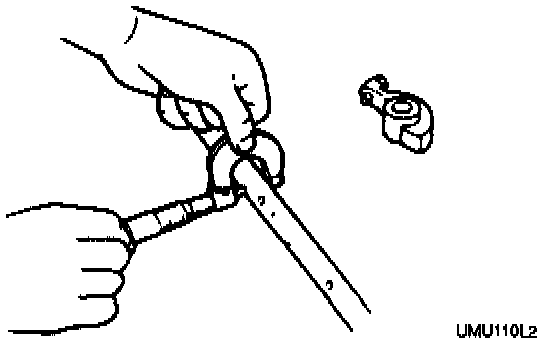

19.00 - 19.033 mm {0.7481 - 0.7493 inch} ROCKER ARM SHAFT DIAMETER Diameter
18.959 - 18.980 mm {0.7465 - 0.7472 inch} NOTE: Subtract the rocker arm shaft diameter from the inner diameter.
OIL CLEARANCE Clearance
0.020 - 0.074 {0.0008 - 0.0029 inch} Maximum
0.10 mm {0.004 inch}
