Torque Specifications

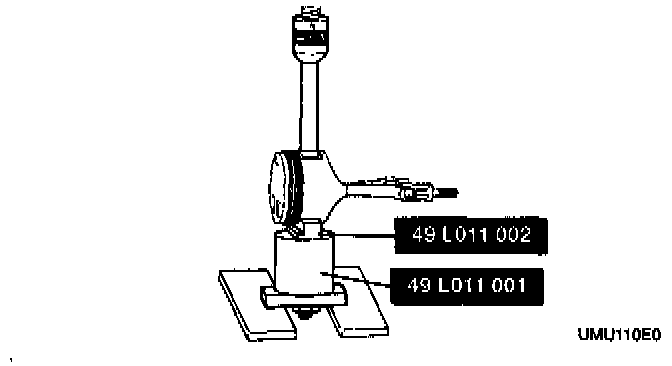

Piston Pin
Pressure
Force 4904 - 14709 N {500 - 1500 kgf, 1100 - 3300 lbs.}


NOTE: Check the piston pin pressure force. If it is less than the specification, replace the piston pin or the connecting rod.
