Control Module: Testing and Inspection

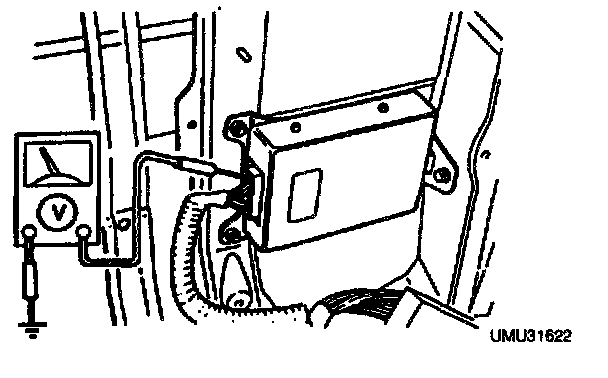

4WD CONTROL MODULE INSPECTION 1.
Turn the ignition switch to ON. Measure the 4WD control module terminal voltages, referring to the Terminal voltage chart.

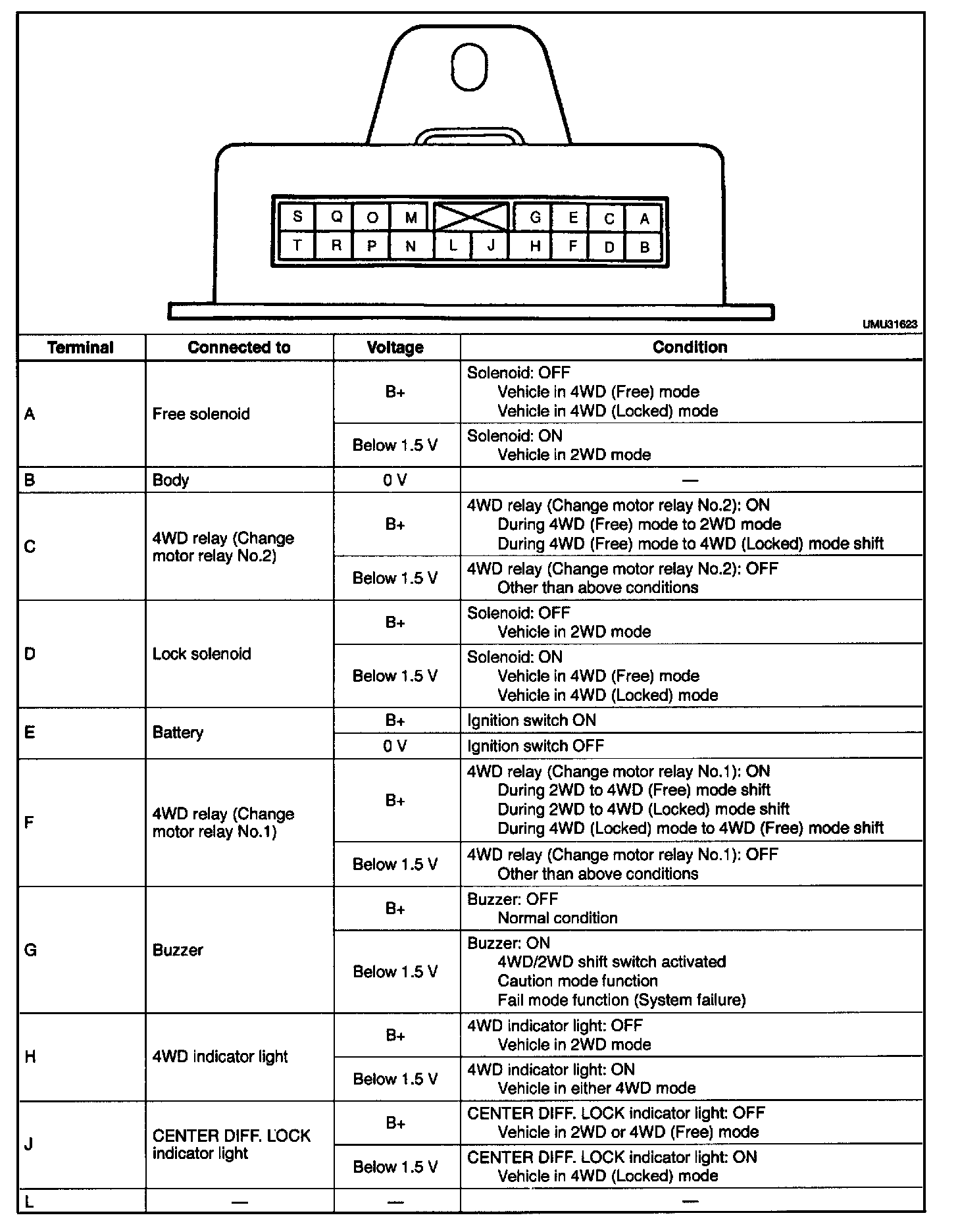

Page 1 Of 2:

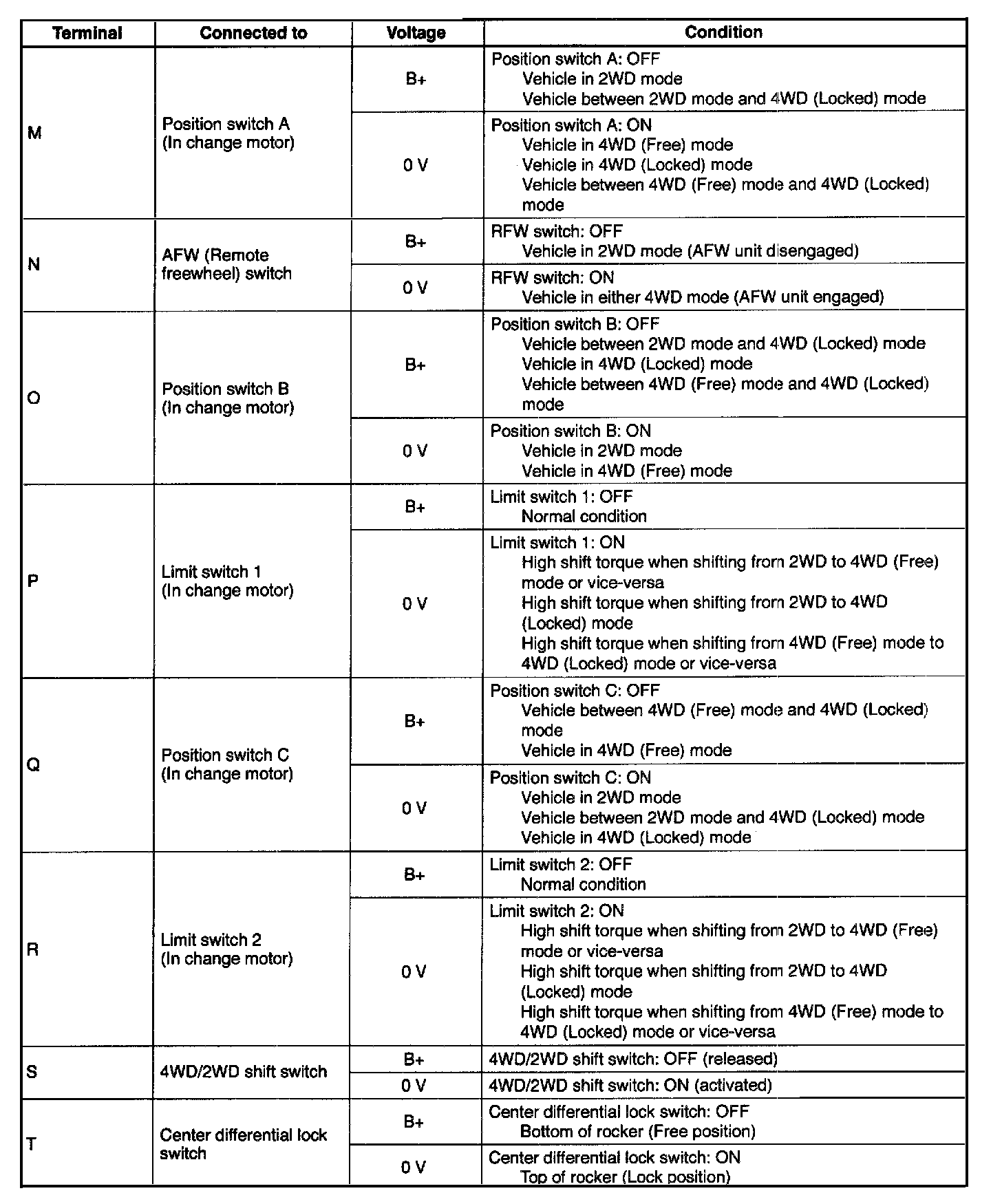

Page 2 Of 2:
2.
If not as specified, inspect, repair, or replace the component(s), wiring, and/or 4WD control module.
