Manifold Pressure/Vacuum Sensor: Locations

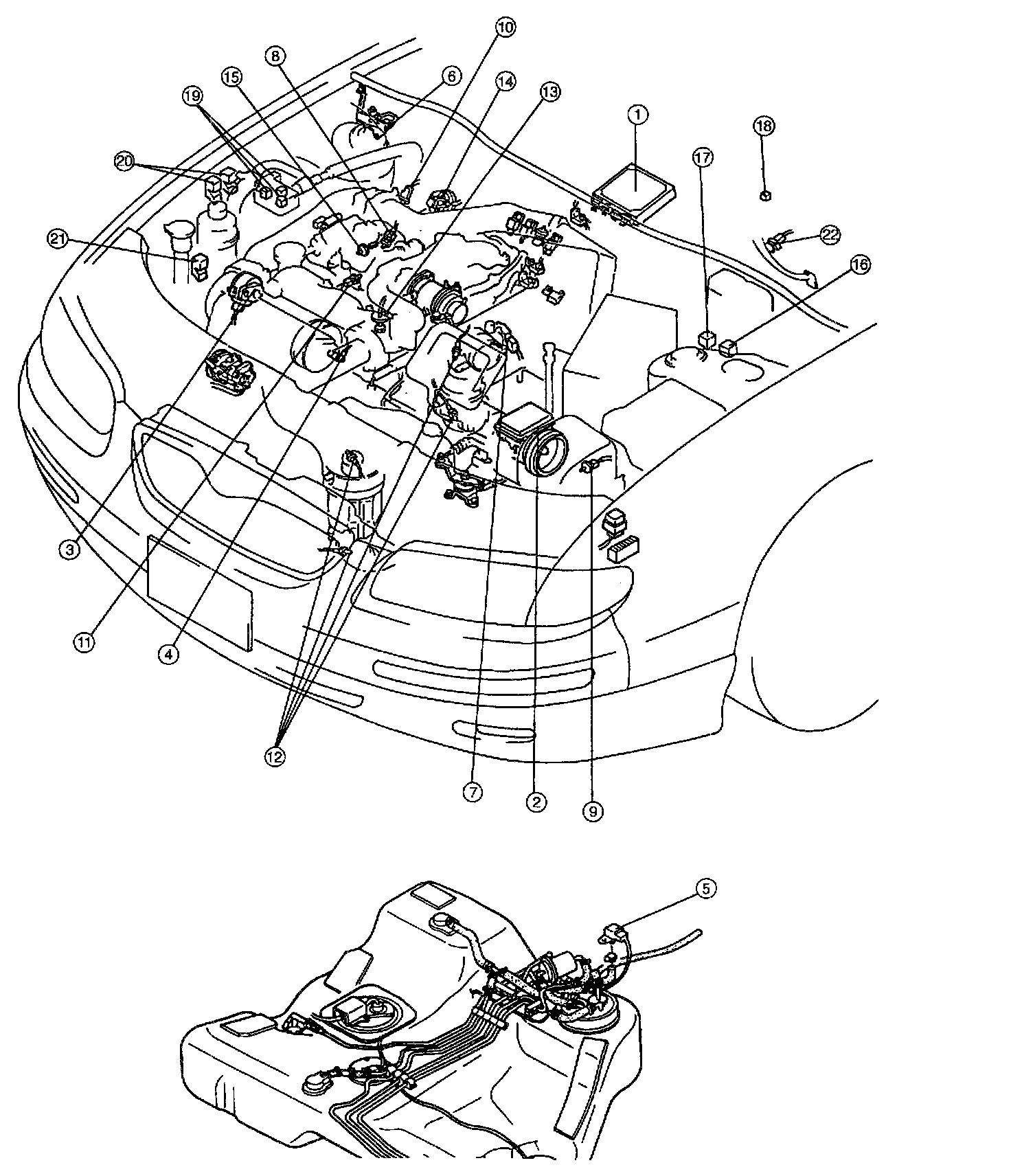

Control System Components:

Legend

1. Powertrain control module (PCM)
2. Mass air flow sensor
3. Camshaft position sensor
4. Crankshaft position sensor
5. Fuel tank pressure sensor
6. Manifold absolute pressure sensor
7. Throttle position sensor
8. Engine coolant temperature sensor
9. Intake air temperature sensor (Air cleaner)
10. Intake air temperature sensor (Dynamic cleaner)
11. Intake air temperature sensor (L/C)
12. Heated oxygen sensor (front, rear)
13. Knock sensor
14. EGR valve position sensor
15. Power steering pressure switch
16. Main relay
17. Fuel pump relay
18. Vehicle speed sensor
19. Cooling fan relay
20. Condenser fan relay
21. A/C relay
22. Brake switch
