Air Gap
1.
Verify that the
crankshaft position sensor is installed correctly and securely.
2.

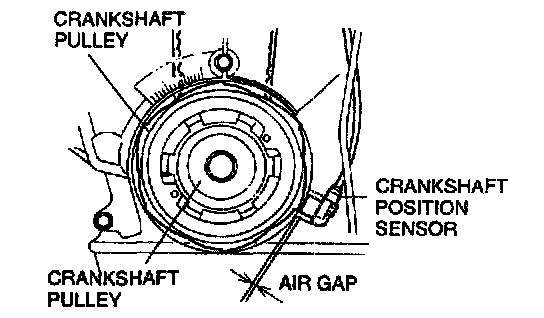

Measure the air gap between the crankshaft pulley and the
crankshaft position sensor by using a feeler gauge.
Specification
0.5 - 1.5 mm {0.020 - 0.059 in} 3.
If not as specified, replace the crankshaft pulley or the
crankshaft position sensor.
