ABS Control Module

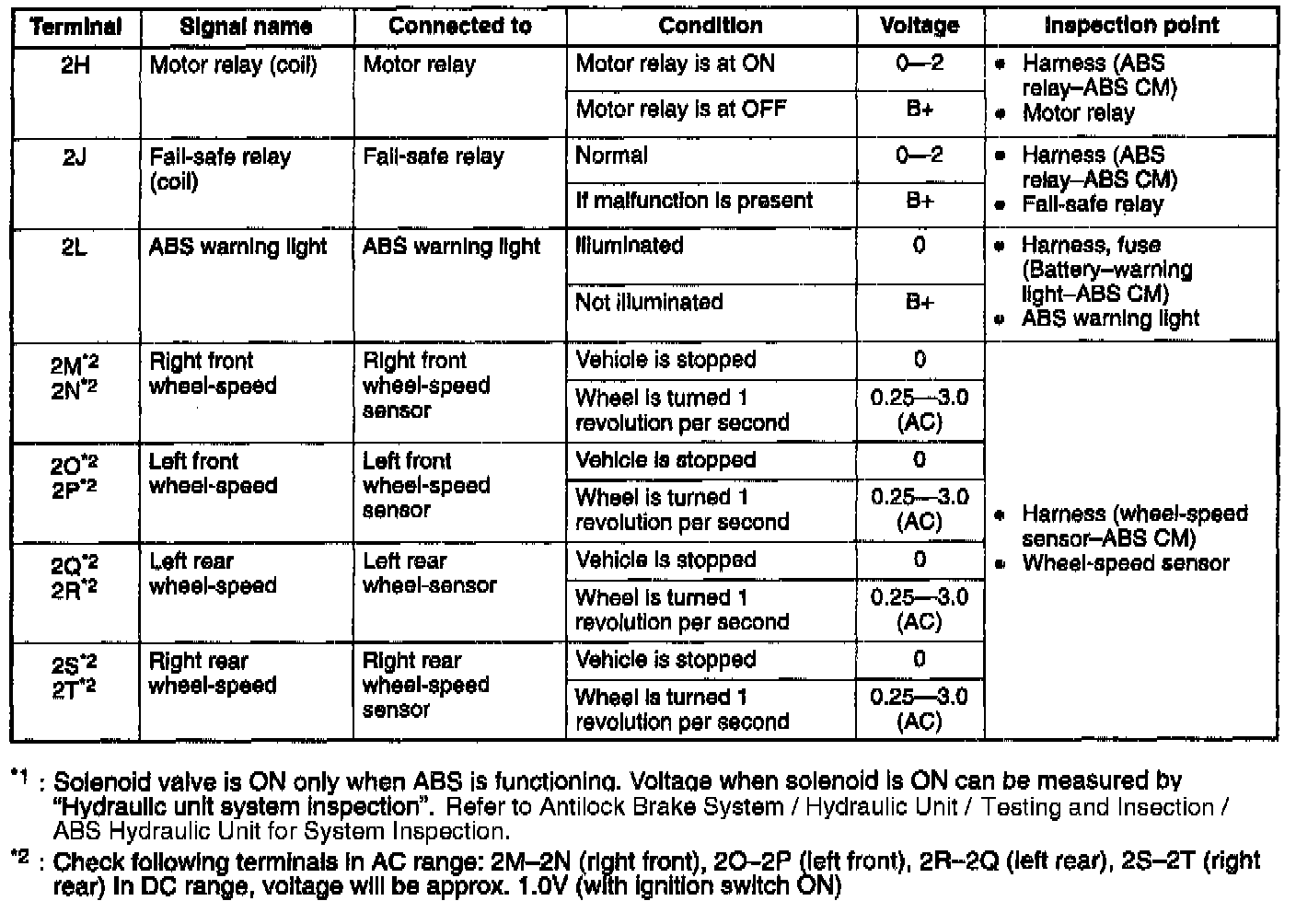

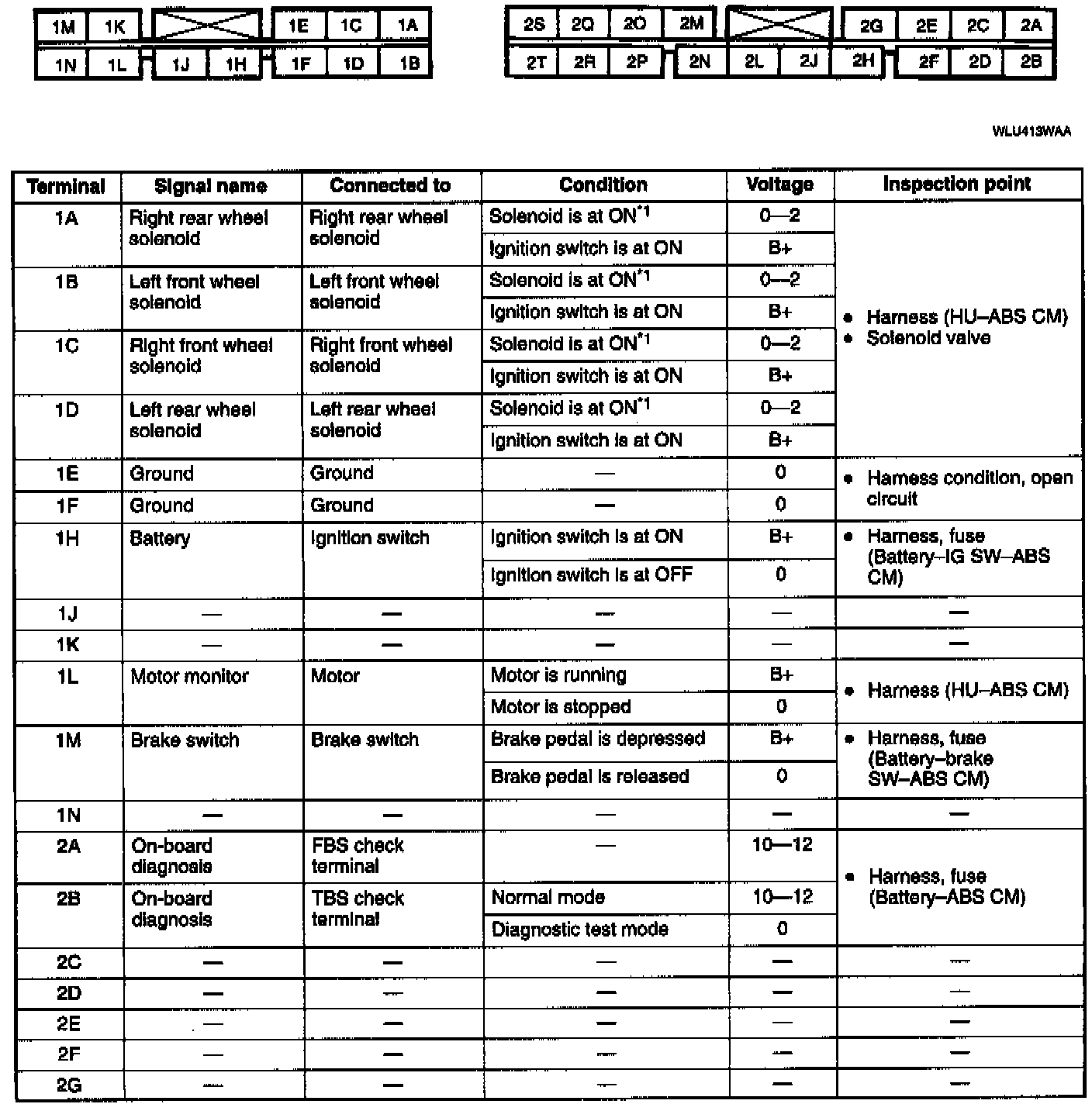

INSPECTION Terminal Voltage Chart (Reference Value) ^
(Ignition switch is at ON, and connector is connected unless indicated otherwise)
NOTE: ^
For vehicles with TCS refer to Traction Control System /
Traction Control Module / Testing and Inspection /
ABS/TCS Control Module Inspection.
