Procedures

CAUTION:
^ The ELR (emergency locking retractor) has a spring that will unwind if the retractor is disassembled. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.




1. Disconnect the negative battery cable.

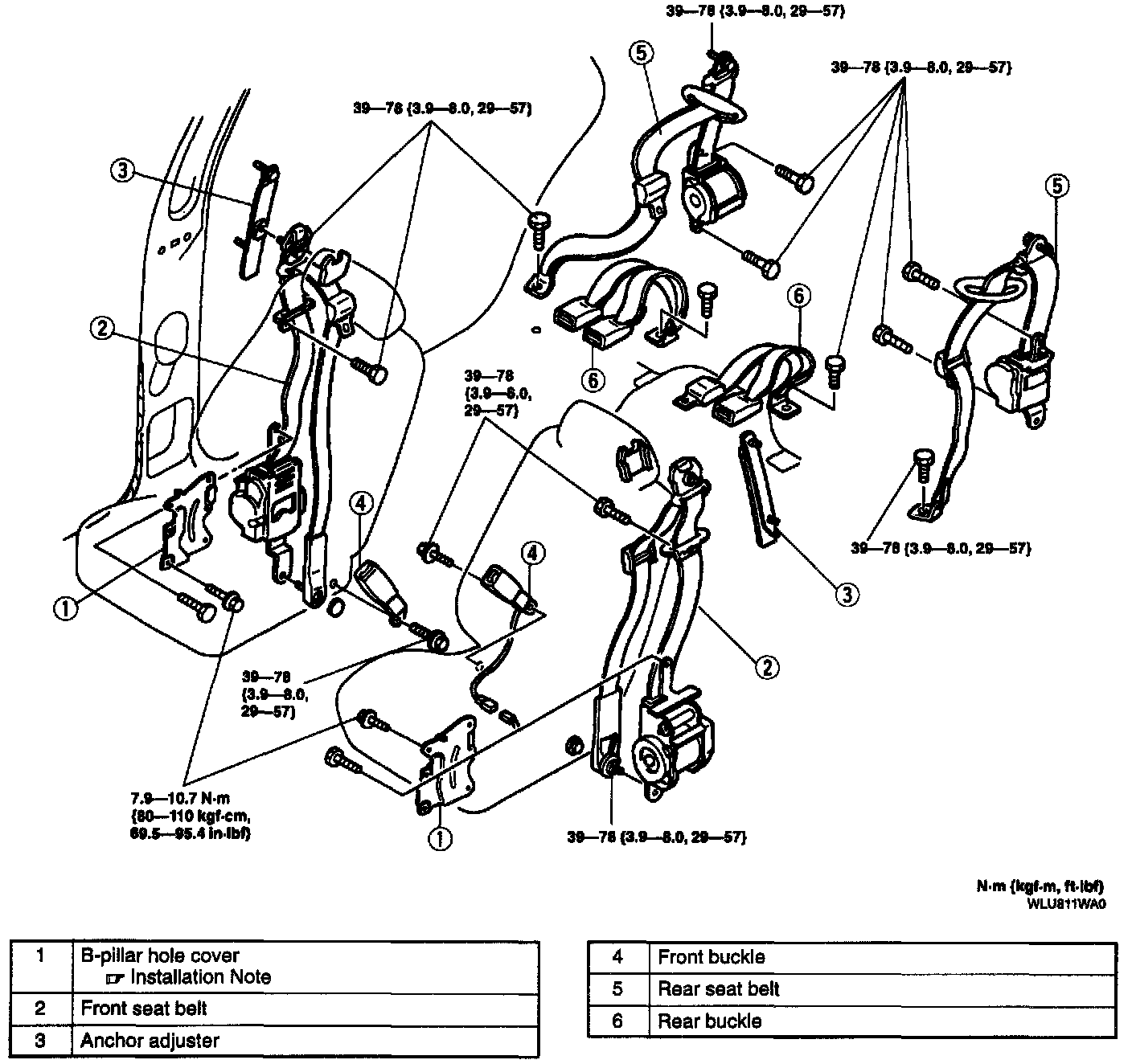

2. Remove in the order indicated in the table. To remove the front seat belts, remove the B-pillar lower trim. To remove the anchor adjuster, remove the B-pillar upper trim. To remove the rear seat belts, remove the C-pillar trim and rear seat cushion.
3. Install in the reverse order of removal.




B-pillar Hole Cover Installation Note
^ Install the B-pillar hole cover between the seat belt and B-pillar. If the seat belt is installed between the hole cover and B-pillar, the seat belt will be difficult or impossible to extend.
