Generator Removal / Installation

Part 1 Of 2:

Part 2 Of 2:

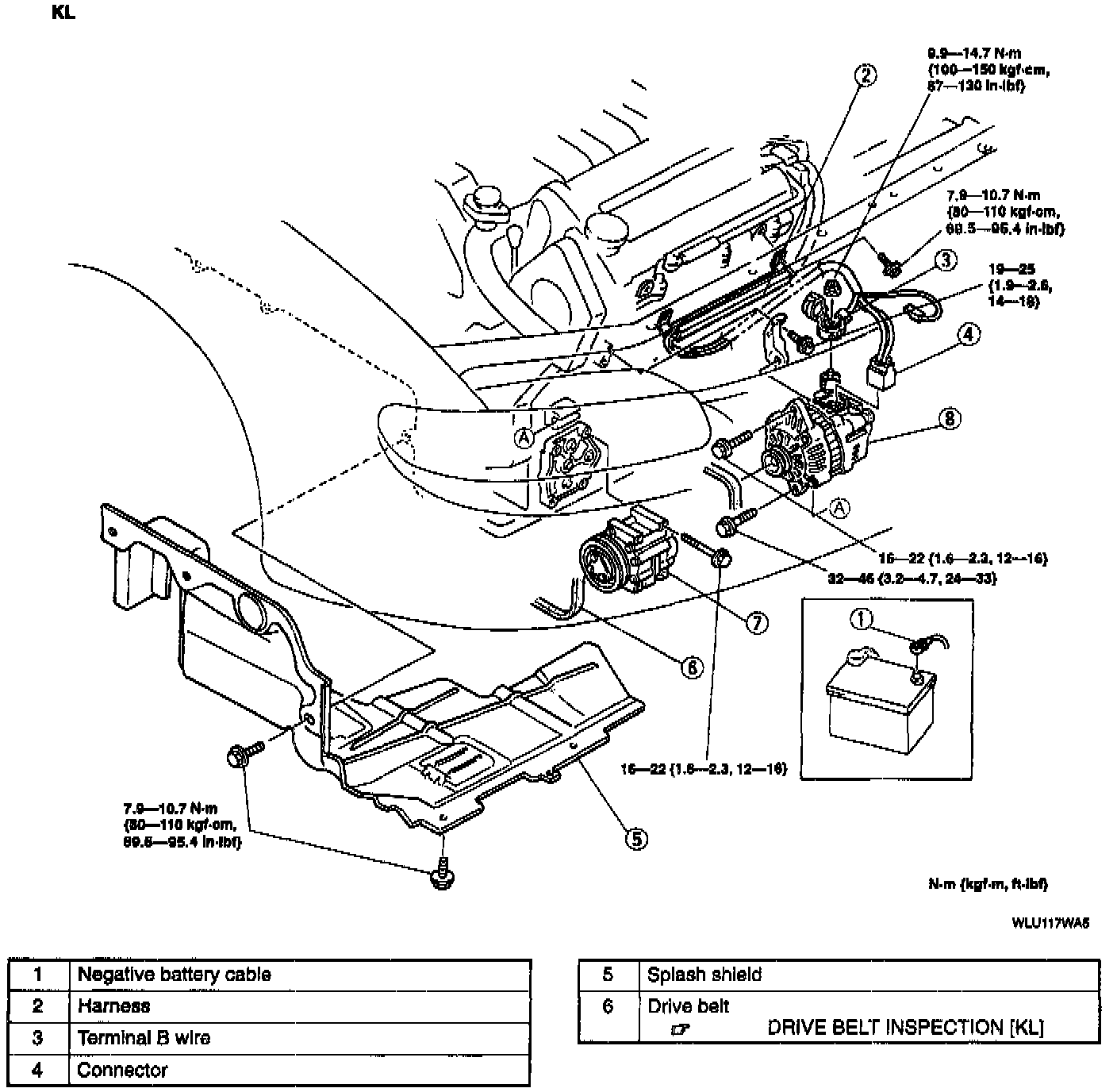

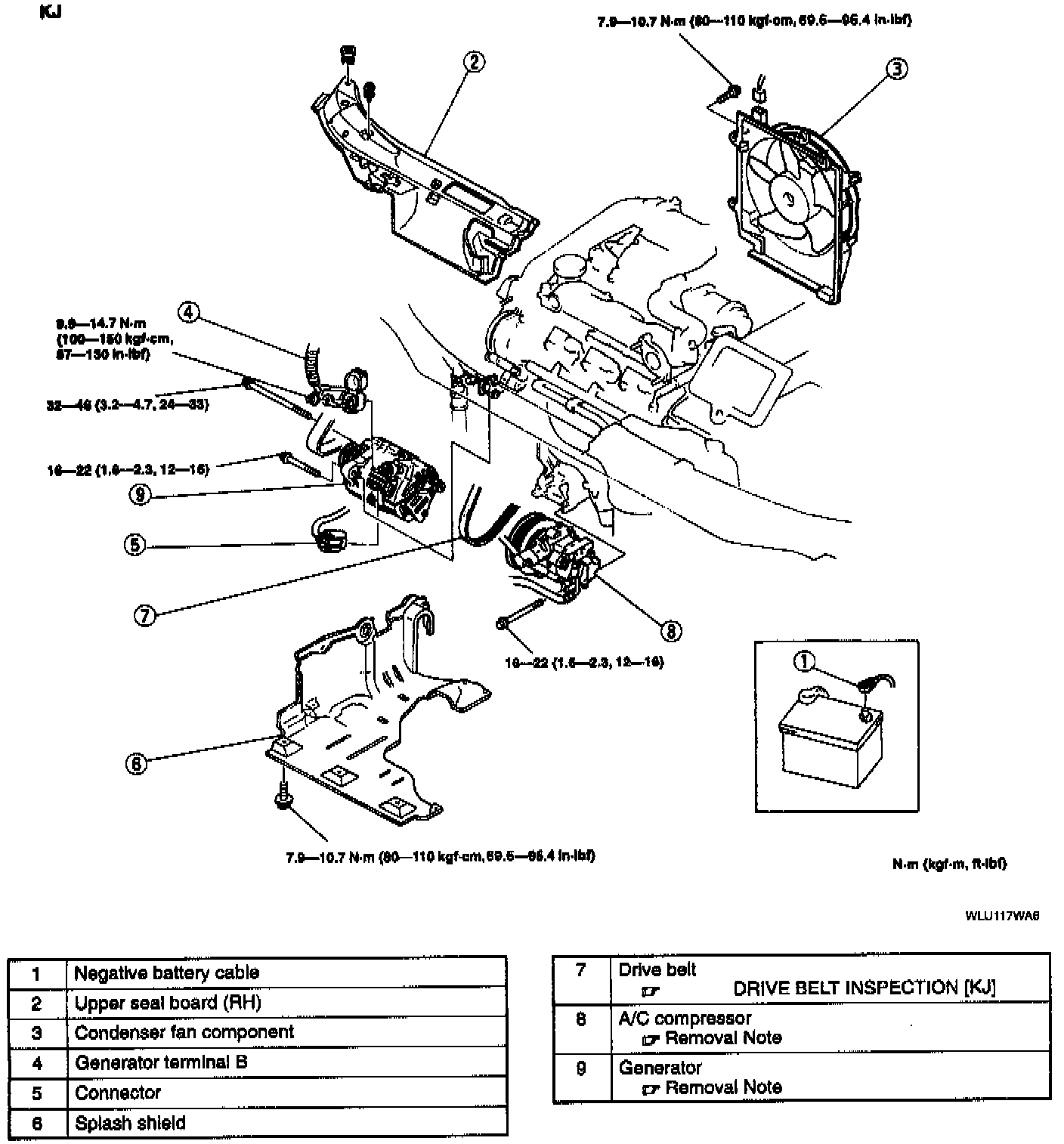

1. Remove the charge air cooler.

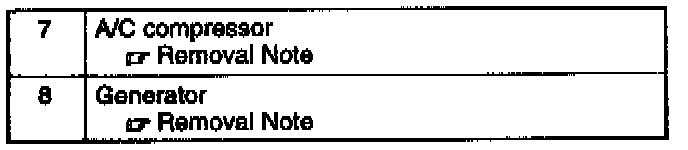

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

CAUTION:
^ Reversing the battery connections or using high-voltage testers will damage the rectifier.
^ Do not start the engine while the connector is disconnected from terminals L and S. It can damage the generator.
^ Disconnecting generator terminal B before disconnecting the negative battery cable can damage the generator harness and connector.

NOTE: Battery positive voltage is always present at generator terminal B while the battery cable connected.

A/C COMPRESSOR AND GENERATOR REMOVAL NOTE
- Remove the generator from under the vehicle.
- With the pipe still connected, position the A/C compressor away from the generator for easy access to the generator.
