Using SSTs Tester
THROTTLE POSITION SENSOR INSPECTION USING SSTs TESTER 1.
Connect the SSTs (NGS tester) to the data link connector-2.
2.
Verify that the throttle valve is at the closed throttle position.
3.

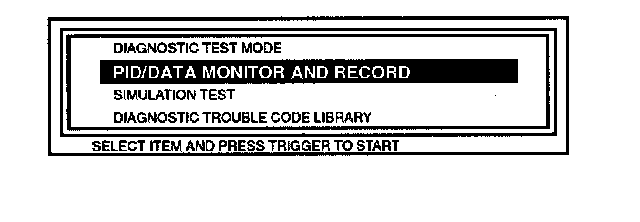

Select the "PID/DATA MONITOR AND RECORD" function.
4.
Select "
TPS V" on the NGS tester display. The NGS tester measures and shows the voltage.

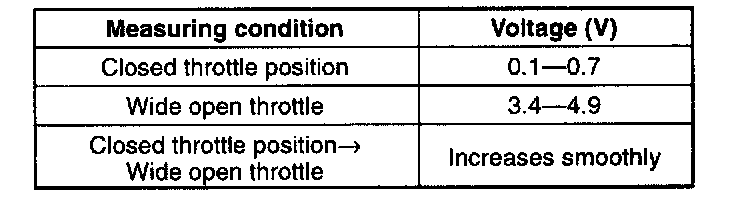

Specification 5.
If not as specified, adjust the
throttle position sensor.
