Disassembly and Assembly

1. Remove the heater unit.

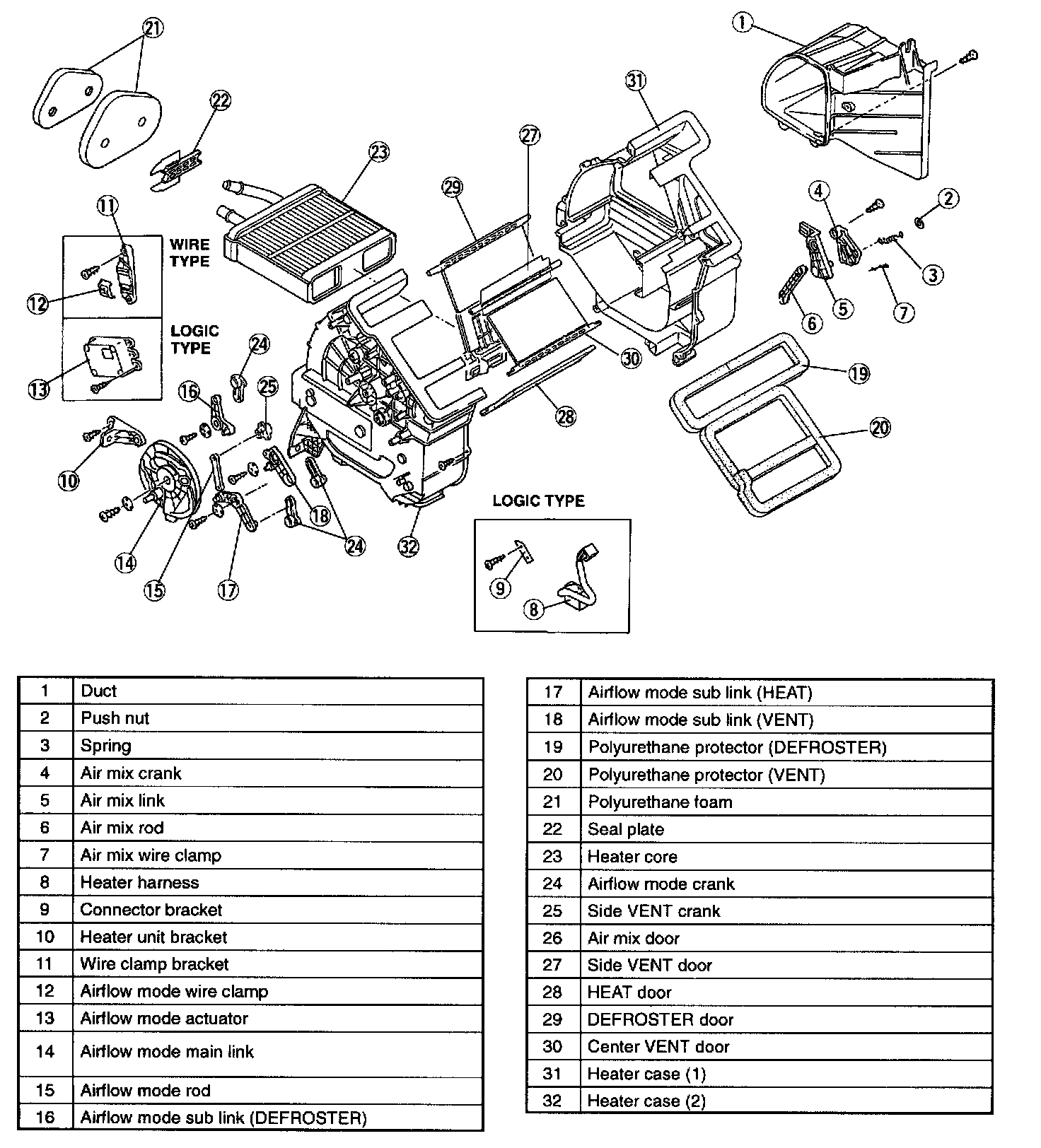

2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

Airflow Mode Main Link Assembly Note

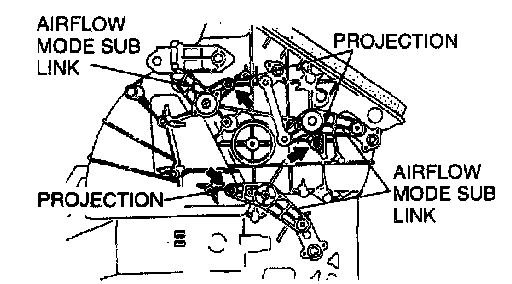

1. Turn the projections of each airflow mode sub link outward.

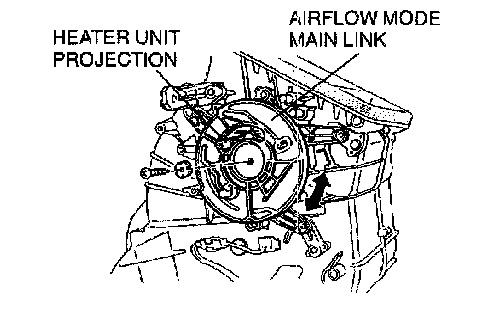

2. Set the airflow mode main link to the heater unit.
3. Press the airflow mode main link and rotate it in the direction of the arrow. Set the projections of each airflow mode sub link into the grooves of the airflow mode main link.
4. Rotate the airflow mode main link and verify that each mode is accessed properly.




5. Secure the airflow mode main link.
