Disassembly and Assembly

1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module.
3. Remove the steering wheel.
4. Remove the column cover.
5. Remove the combination switch.

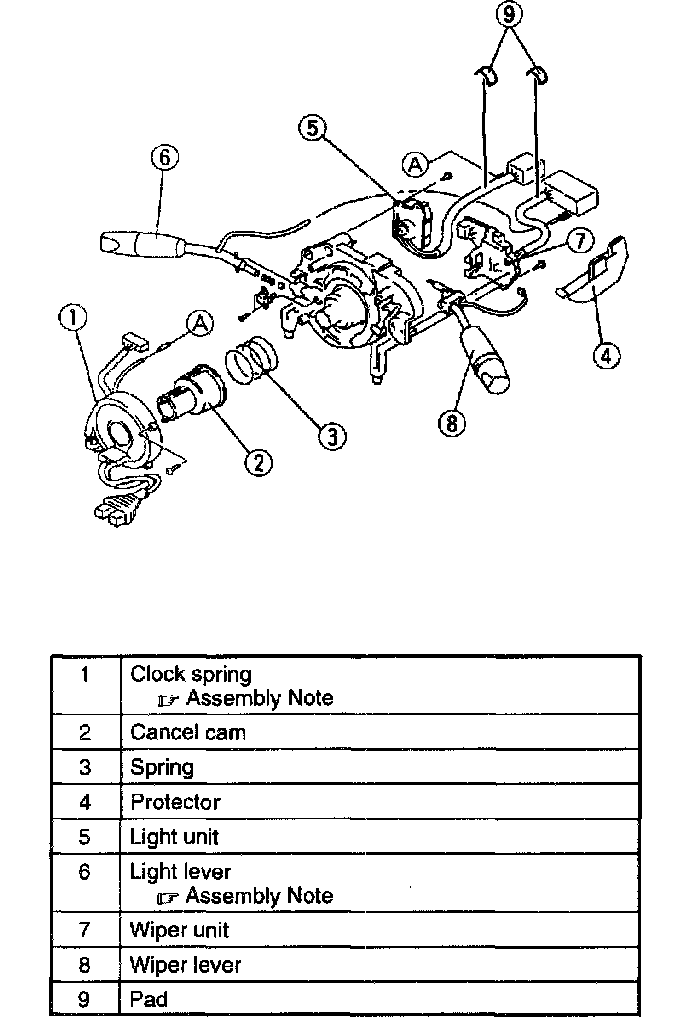

6. Disassemble in the order indicated in the table.
7. Assemble in the reverse order of disassembly.

Light Lever and Clock Spring Assembly Note
^ Refer to the table and insert the proper harness terminal into the connect position in the connector.
