Fuel Filter: Service and Repair

FUEL FILTER REMOVAL AND INSTALLATION

1. Complete the "BEFORE REPAIR PROCEDURE". (Refer to SERVICE PRECAUTIONS.)
2. Disconnect the negative battery cable.

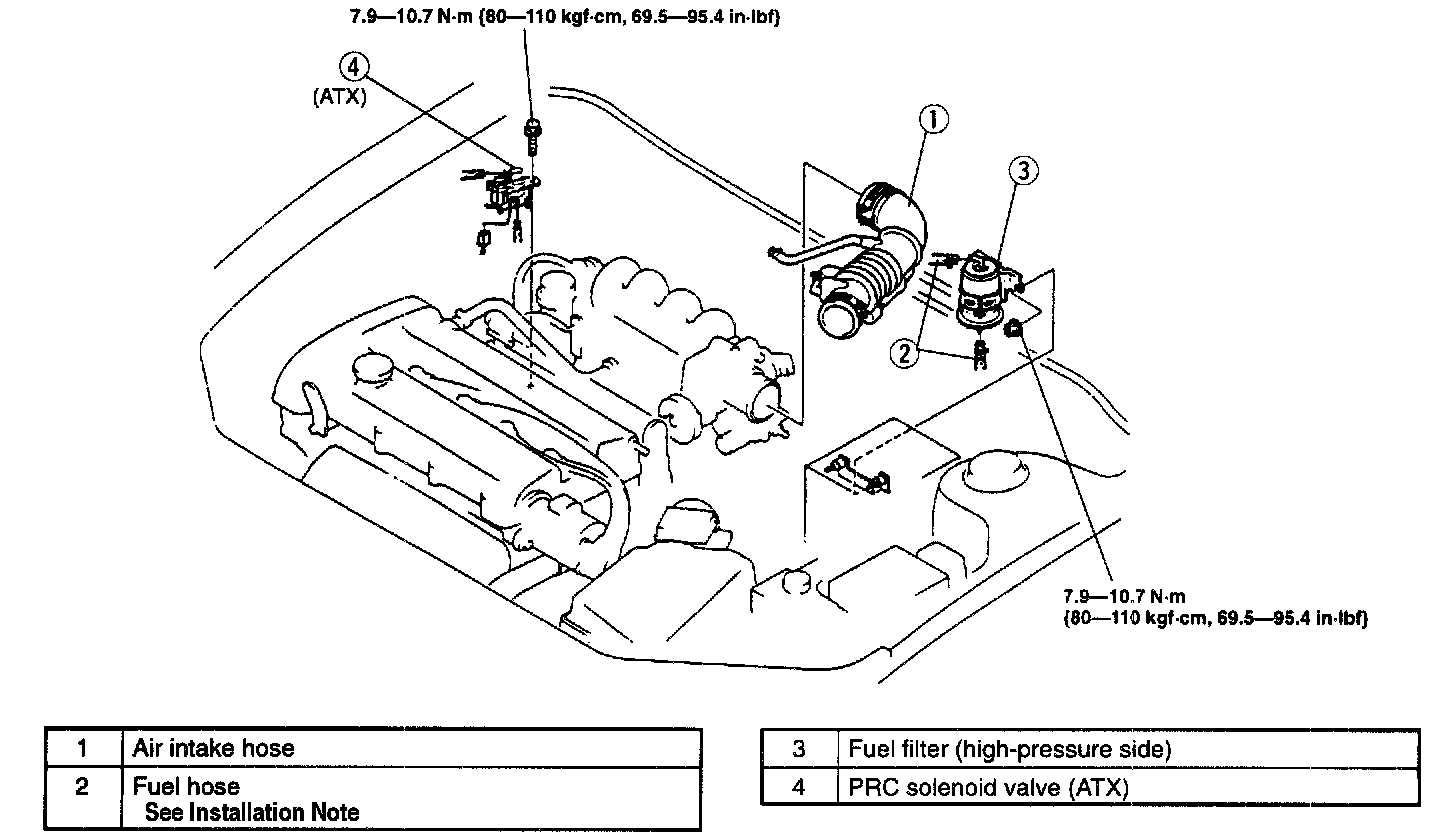

3. Remove in the order shown indicated in the table.
4. Install in the reverse order of removal.
5. Complete the "AFTER REPAIR PROCEDURE". (Refer to SERVICE PRECAUTIONS.)

1. Push the ends of the fuel hoses onto the respective fittings until it stops.




2. Install the clamps on the fuel hoses.

Specification: 2 - 5 mm (0.08 - 0.19 in) from the end of hose
