Crankshaft Position Sensor: Service and Repair

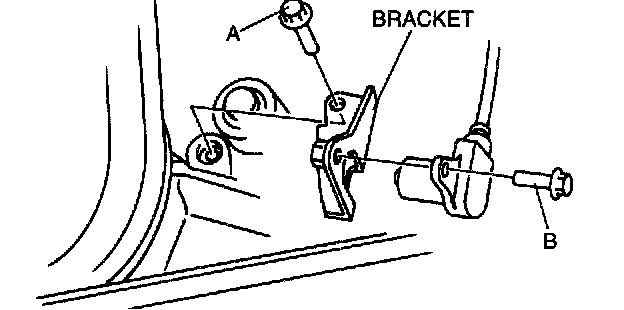

CRANKSHAFT POSITION SENSOR REMOVAL AND INSTALLATION 1.
Remove the undercover.
2.
Remove bolt A.
3.
Remove bolt B and the bracket.
4.
Install in the reverse order of removal.
Tightening torque: 7.9 - 10.7 N.m [80 - 110 kgf.cm, 70 - 95.4 in.lb) 5.
Adjust the air gap.
