SGT Terminal Test

SGT TERMINAL TEST WITHOUT SSTs TESTER

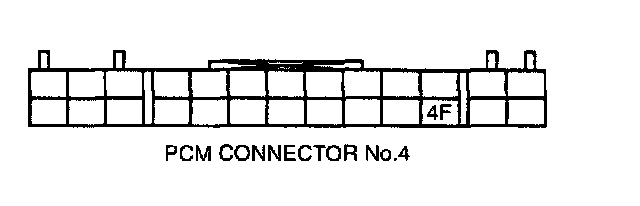

1. Verify that the PCM connector terminal 4F voltage is approximately 2.0 V when cranking the engine by using a voltmeter.
2. If not as specified, inspect the camshaft position sensor.
