Ground Terminal Test

GROUND TERMINAL TEST WITHOUT SSTs TESTER

1. Turn the ignition switch OFF.
2. Disconnect the PCM connectors.

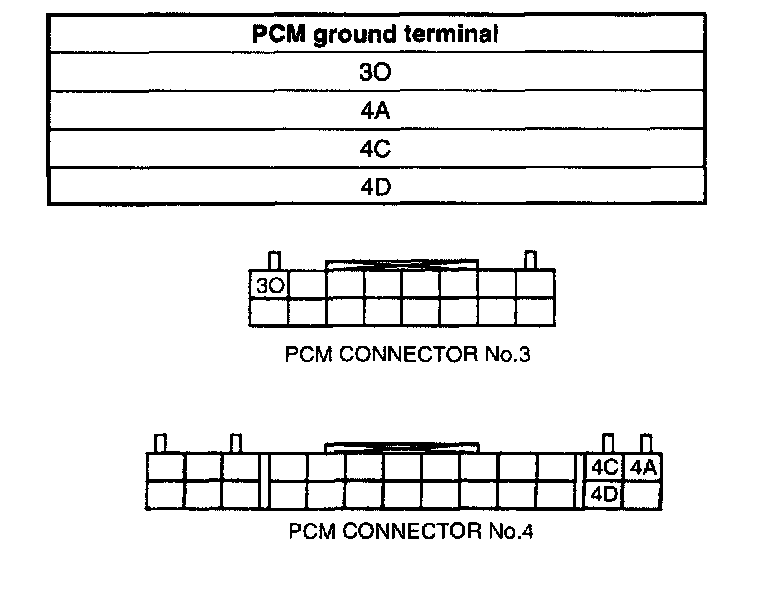

3. Inspect for continuity between the PCM ground terminals and body ground by using an ohmmeter.
4. If not as specified, repair the related harnesses.
