Fuel Tank Area

EVAPORATIVE SYSTEM COMPONENT REMOVAL AND INSTALLATION (FUEL TANK SIDE)

1. Remove the fuel tank. (Refer to FUEL TANK SERVICE AND REPAIR.)




2. Remove in the order indicated in the table.
3. Install in the reverse order of removal and observe the following notes:

- Push the ends of the evaporative hoses onto respective fittings.

Specification
15-20 mm (0.60 - 0.78 in) (except charcoal canister)
25-30 mm (0.99 - 1.18 in) (charcoal canister)

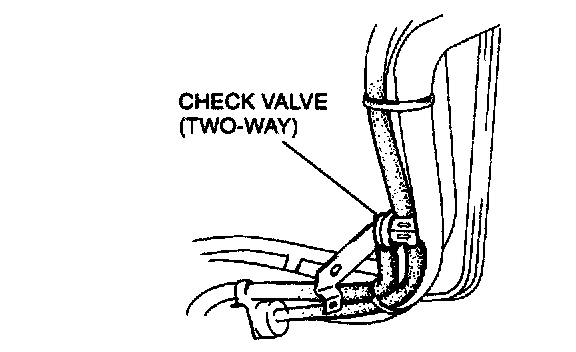

- Install the check valve (two-way) in the correct direction as shown.
