Transmission Temperature Sensor/Switch: Testing and Inspection

TRANSAXLE FLUID TEMPERATURE SENSOR INSPECTION

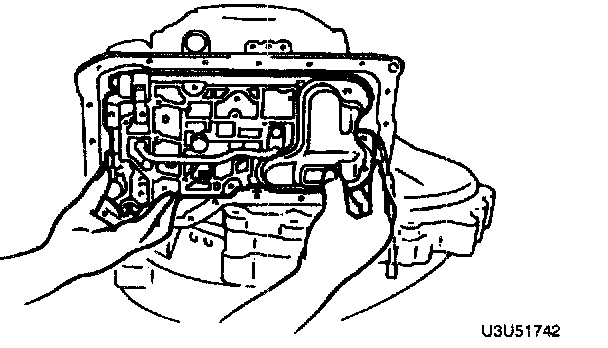

1. Remove the control valve body.

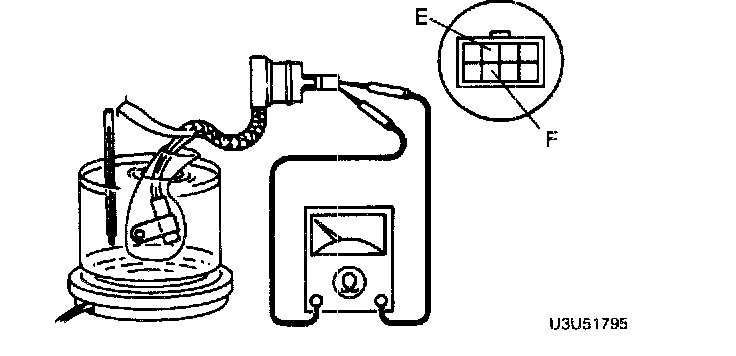

2. Place the transaxle fluid temperature sensor in ATF along with a thermometer as shown, and heat the ATF gradually.

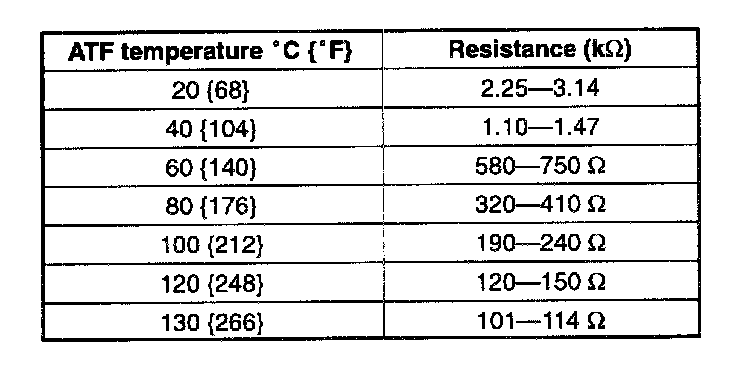

3. Measure resistance between the terminals E and F of the transaxle fluid temperature sensor.
4. If not correct, replace the transaxle fluid temperature sensor.

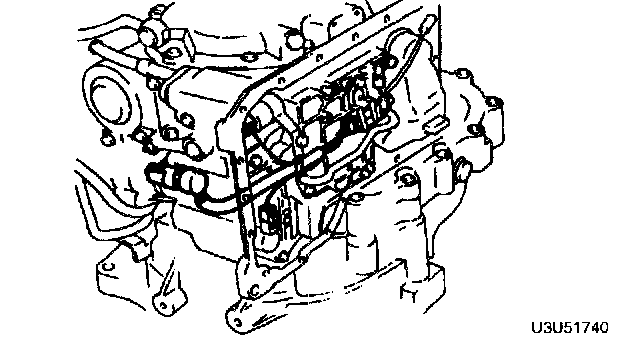

5. Install the control valve body.
