Blower Motor Switch: Testing and Inspection

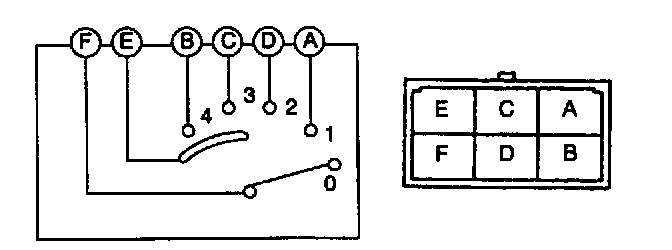

FAN SWITCH INSPECTION

1. Remove the heater control unit.

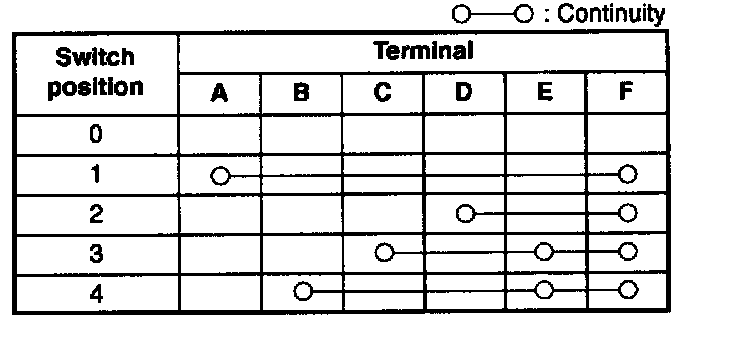

2. Check for continuity between the fan switch terminals by using an ohmmeter.
If not as specified, replace the fan switch.
