Oil Pipe Bracket Installation/Oil Pipe Assembly Installation

Oil Pipe Bracket Installation

1. Remove lower left battery tray mounting bolt.

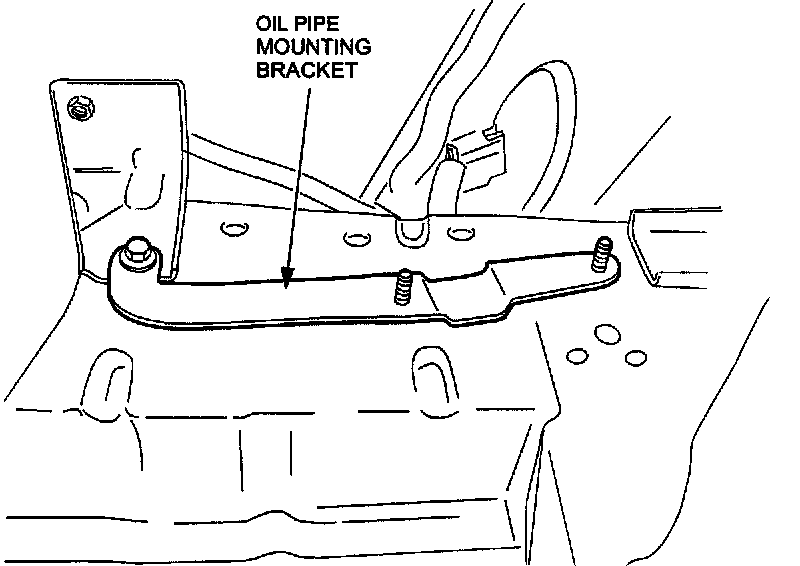

2. Position oil pipe mounting bracket so that mounting hole lines up over battery tray mounting hole and single large stud fits through hole in body on right side.

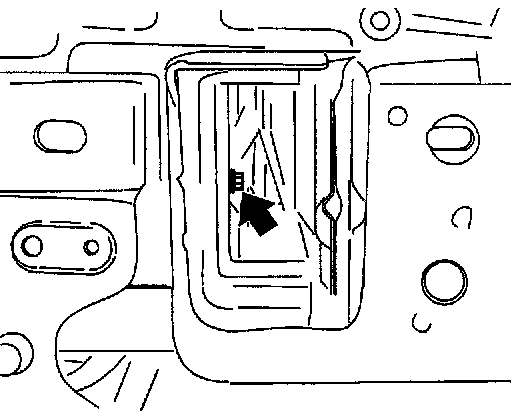

3. Reach through opening at front of body to install one 8 mm washer and nut.

WARNING:
To avoid injury, be careful when inserting hand through opening in front of body. This area contains sharp edges.

4. Proceed to Oil Pipe Assembly Installation procedure.

Oil Pipe Assembly Installation

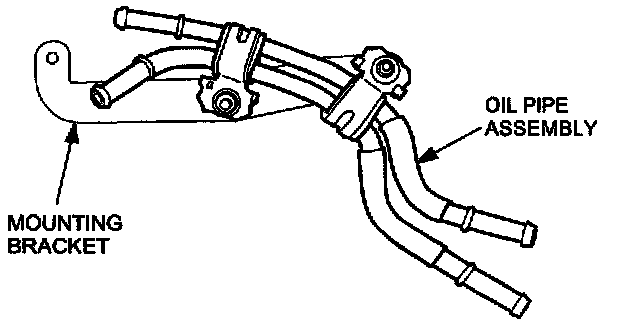

1. Install oil pipe assembly on mounting bracket and position them so that the longer section of the oil pipe is facing out through seal plate, towards front of vehicle.

2. Install two(2) 6 mm nuts.

3. Proceed to Radiator Installation procedure.
