Fuel Pressure Regulator Control Inspection

WARNING: Fuel line spills and leaks are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes.

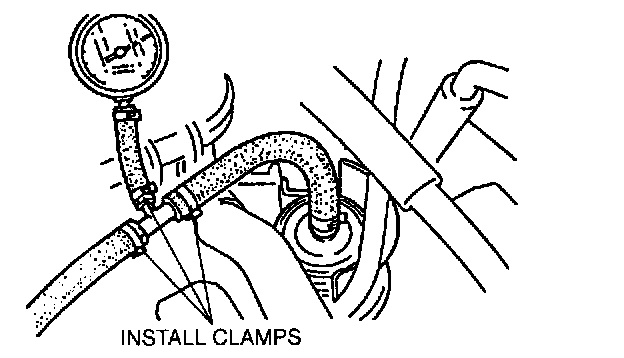

1. Install the fuel pressure gauge.

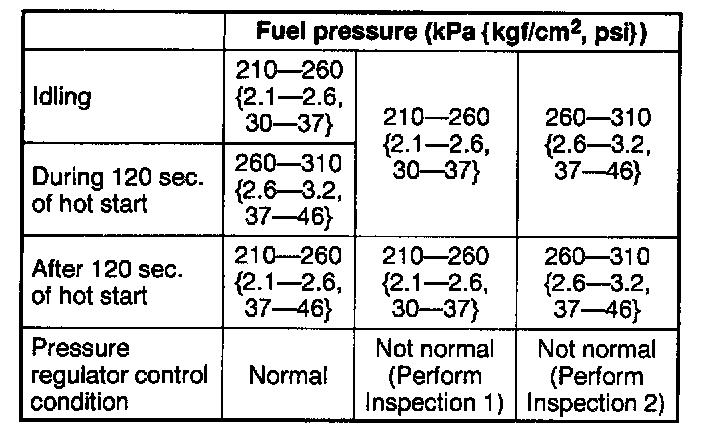

2. Measure the fuel pressure under these conditions

3. If the fuel pressure is not within the specification, carry out either Inspection 1 or Inspection 2 as required.

INSPECTION 1

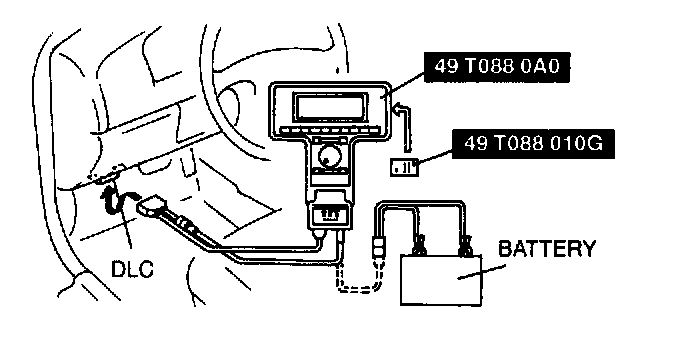

1. Connect the SSTs (NGS tester) to the DLC.

2. Access the following PIDs.
- ECT PID.
- IAT PID.
- TP V PID.

3. Check PID value.

4. If okay, check:
- Pressure regulator.
- PRC solenoid valve.
- Wiring between PRC solenoid valve and PCM terminal 19 (open circuit).
- Wiring between main relay and PRC solenoid valve (open circuit).

INSPECTION 2

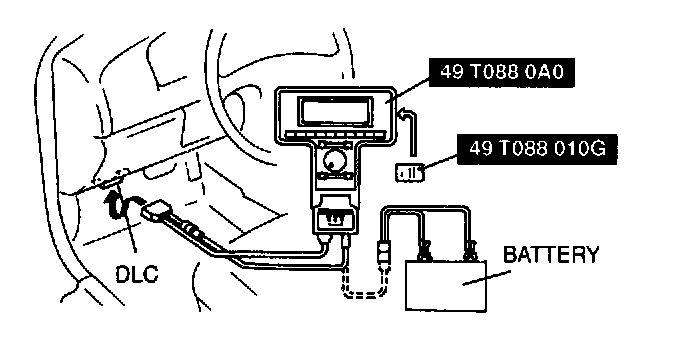

1. Connect the SSTs (NGS tester) to the DLC.

2. Access the following PIDs.
- ECT PID.
- IAT PID.

3. Check PID value.

4. If okay, check:
- Loose or damaged vacuum hose between the pressure regulator, PRC solenoid valve and intake manifold.
- PRC solenoid valve.
- Wiring between PRC solenoid valve and PCM terminal 19 (short circuit).
