Scan Tool Connecting

NEW GENERATION STAR TESTER HOOK-UP PROCEDURE

NOTE: Make sure key is off.

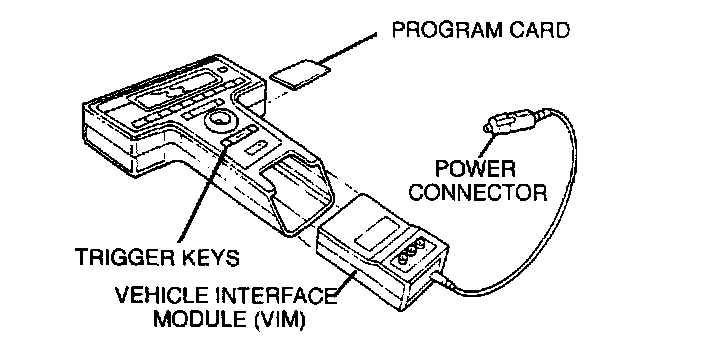

1. Insert the vehicle interface module and program card into the SST (NGS tester) control unit.

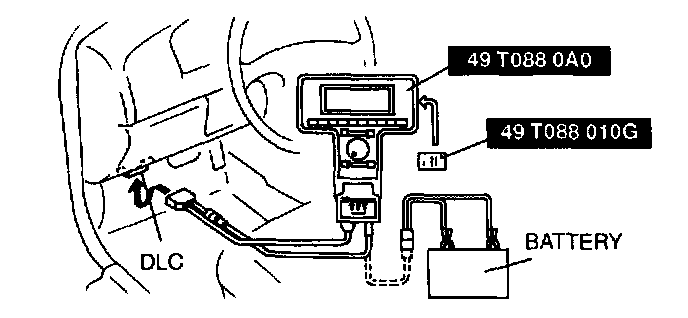

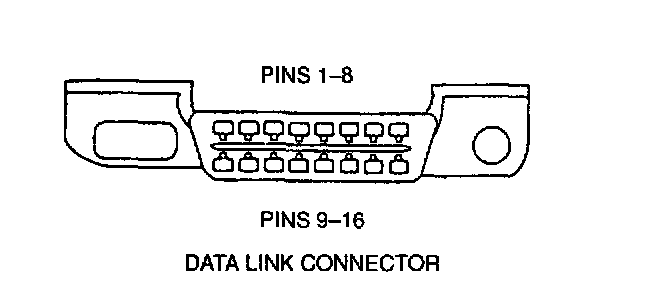

2. Plug the NGS OBD II adapter into the interface module and the large 5 pin connector into the data link connector (DLC) located under the left side of the center console.




3. Plug the SST (NGS tester) tester power cable into the NGS OBD II adapter power cable connector, cigarette lighter or use a battery hook-up adapter.
4. Listen for a double beep. The SST is now initialized. Begin the functional test of powertrain control system.
