Spark Plug: Testing and Inspection
PURPOSE Checking
spark plugs condition can determine whether problem is related to a specific cylinder possibly all cylinders.
PROCEDURE 1.
Remove the
spark plug.
2.
Check

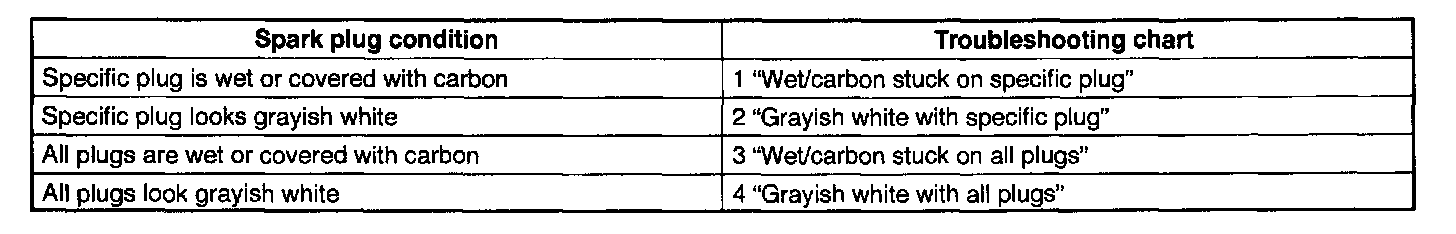

spark plug condition.
3.
Go to appropriate troubleshooting chart for further information.

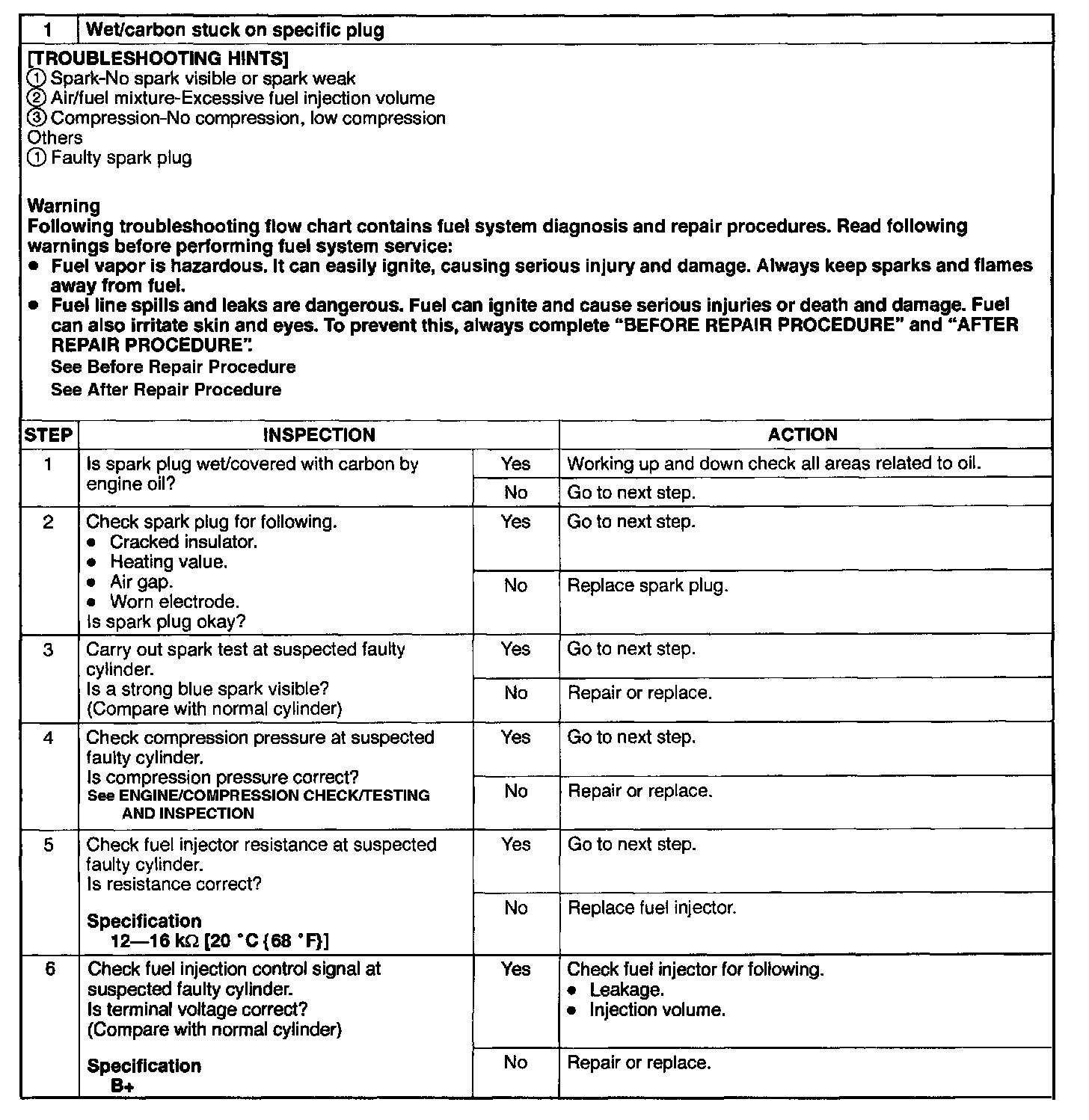

1 Of 4:

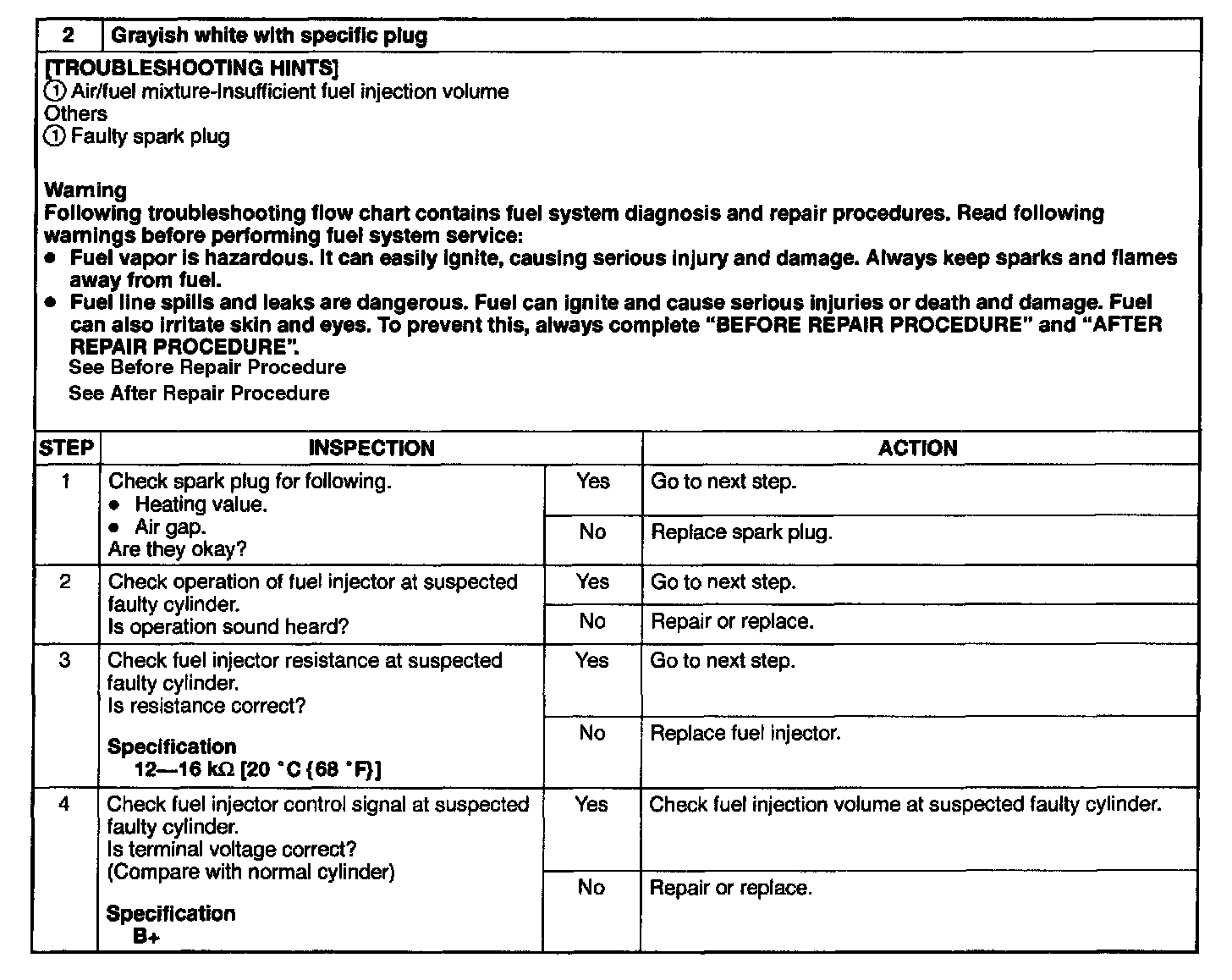

2 Of 4:

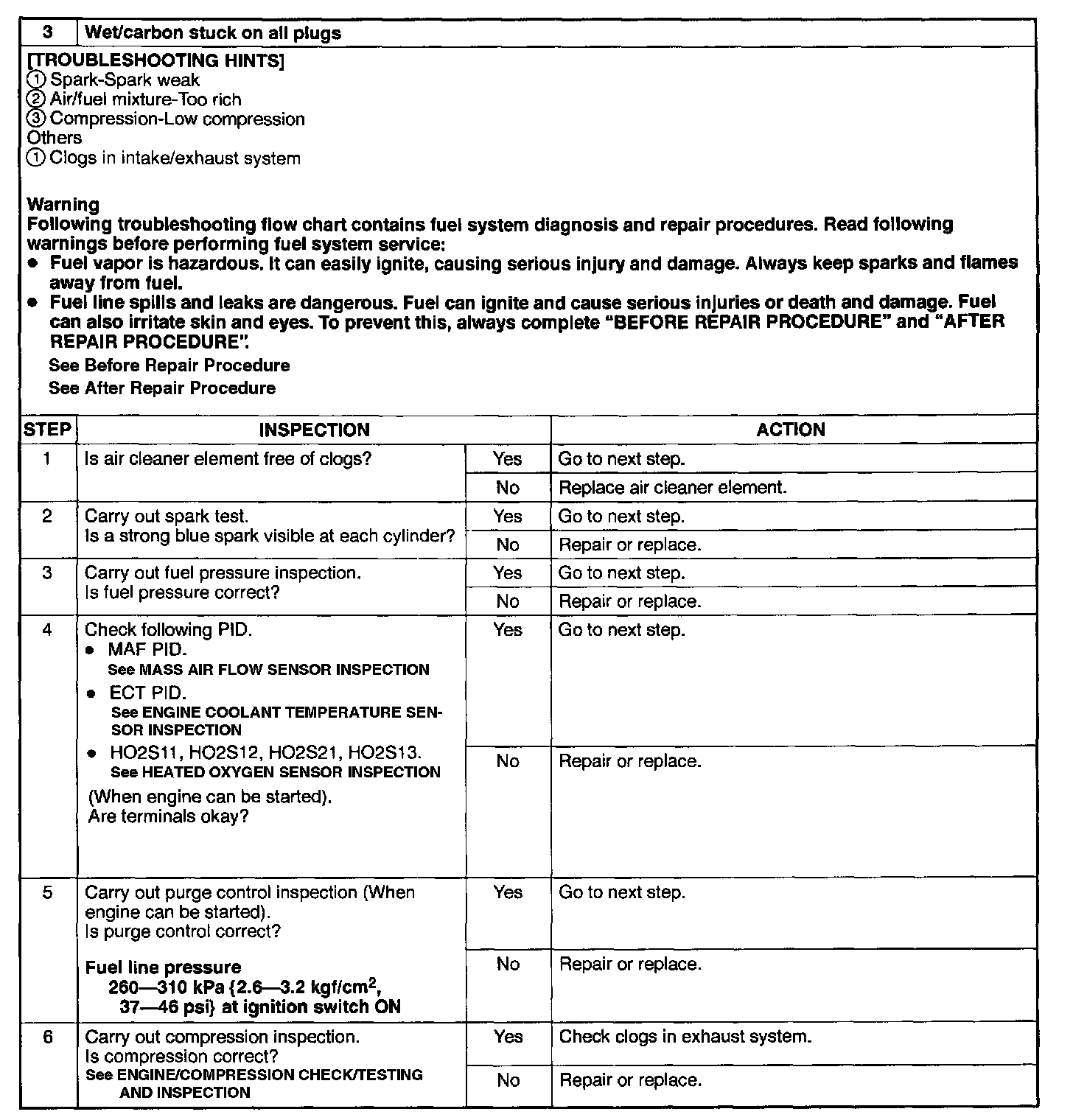

3 Of 4:

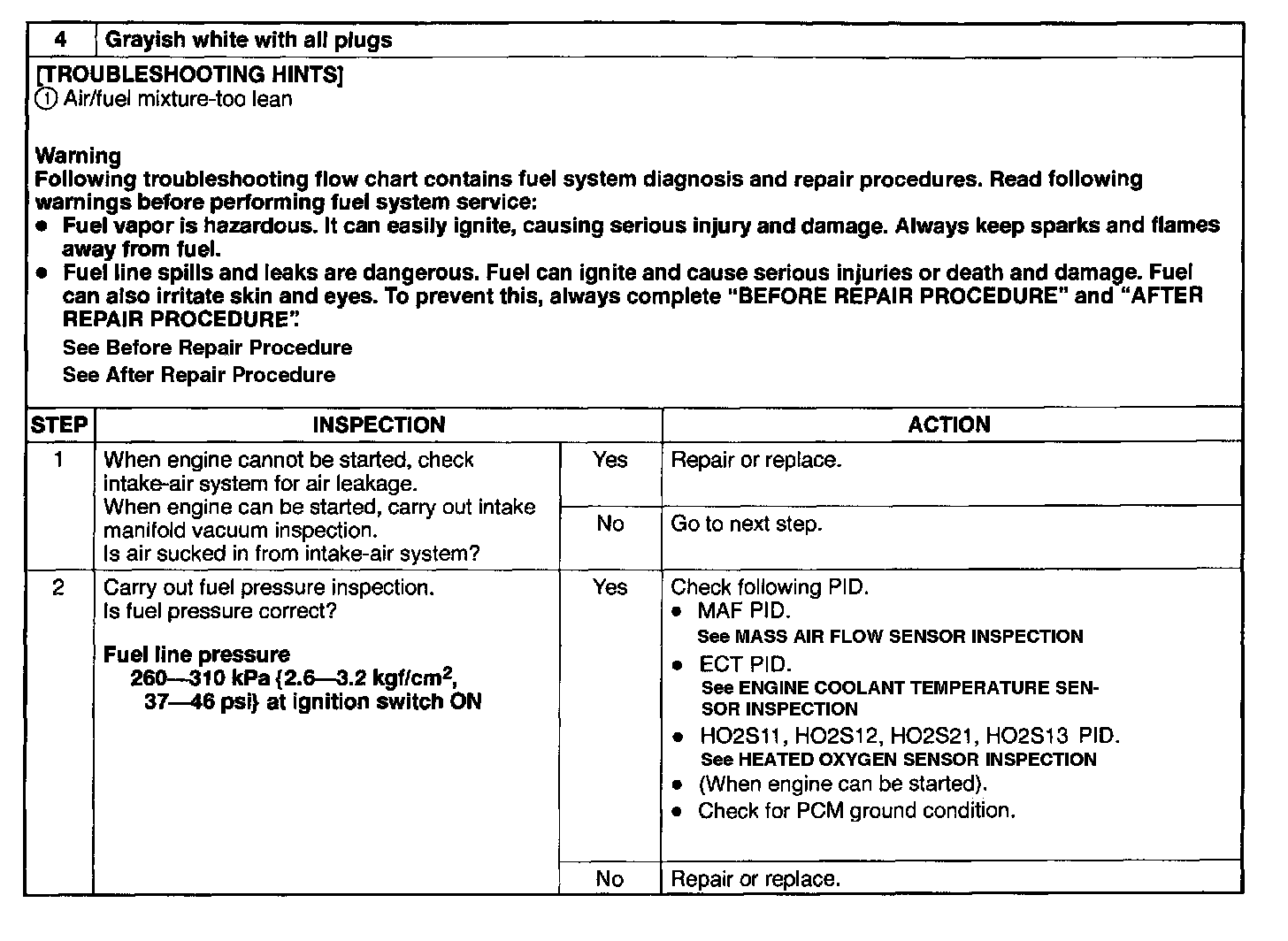

4 Of 4:
