Clutch Switch: Testing and Inspection

CLUTCH SWITCH INSPECTION

Inspection of Continuity

NOTE:
- Perform the following test only when detected.

1. Verify that the clutch switch is installed properly.
2. Disconnect the negative battery cable.
3. Remove the clutch switch.

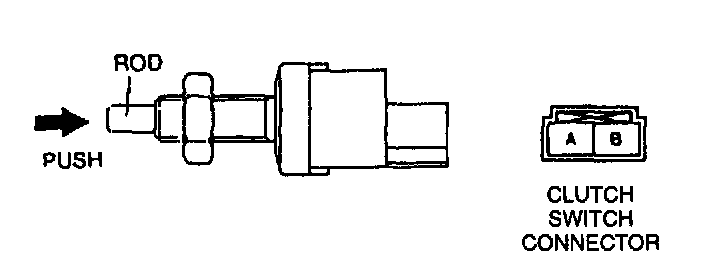

4. Inspect continuity between the clutch switch terminals by using an ohmmeter.

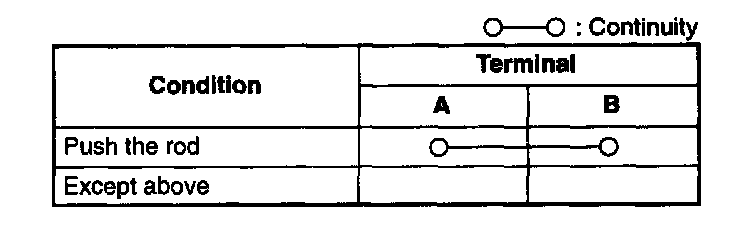

Specification

5. If not as specified, replace the clutch switch. If clutch switch is okay, but PID value is out of specification, inspect as follows:

Open circuit
- Power circuit (Clutch switch connector terminal A and PCM connector terminal 31 through common connector.)
- Ground circuit (Clutch switch connector terminal B and ground.)

Short circuit
- Clutch switch connector terminal A and PCM connector terminal 31 through common connector to ground.

6. Reconnect the clutch switch connector.
